- Page 1 Preliminary Specification Number : P.1/22 LBAC0ZZ1SU User Manual Applicable Product Name: LBAC0ZZ1SU Feb/17/2018 Confidential...
-
Page 2: Table Of Contents
Preliminary Specification Number : P.2/22 Table of contents 1. Product Summary ........................ 4 2. Product Specification ......................4 3. Physical peripherals ......................5 4. Product Features and Functions ..................10 5. Graphic user interface for configuration ................12 6. Size of Appearance ......................14 7. - Page 3 Preliminary Specification Number : P.3/22 Revision History Date Version Change History 2018/2/9 1.0.0 Initial version Confidential...
-
Page 4: Product Summary

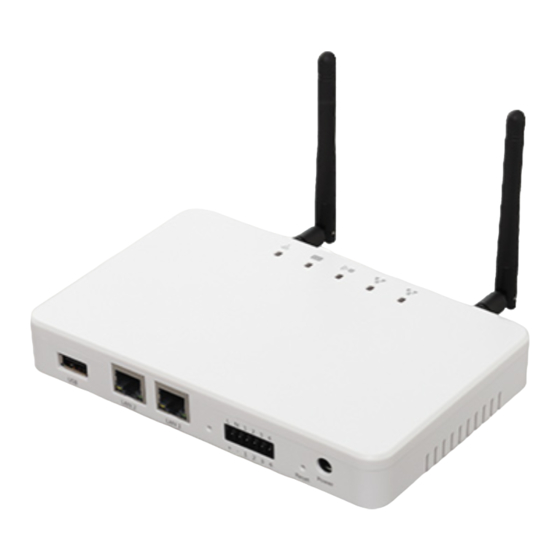

Preliminary Specification Number : P.4/22 1. Product Summary LBAC0ZZ1SU are the multiple RF protocol gateway. This product can be enable to receive data from multiple sensor units and transfer those data to customer’s system by suitable interfaces and protocols. 2. Product Specification This specification is applied to LBAC0ZZ1SU gateway solution. -
Page 5: Physical Peripherals
Preliminary Specification Number : P.5/22 3. Physical peripherals Product physical peripherals are shown as below. Button The button is short and designed for reset purpose and long and designed for user configuration. No. Time Actions 1 second Software reset 10 seconds Factory reset LED indicators There are 5 LEDs show the status of this gateway. - Page 6 Preliminary Specification Number : P.6/22 One USB interface is used for data storage and connection to other peripherals. micro SD card slot Micro SD card slot is used for log data storage by FAT format, and firmware update. Please do NOT remove the card while the LED6 is ON.
- Page 7 Preliminary Specification Number : P.7/22 GUI image for Ethernet and WLAN station mode: Initial setting: LAN1 Item Initial setting IP address DHCP Subnet mask Default gateway DNS1 DNS2 GUI image for LAN1: Initial setting: LAN2 Item Initial setting IP address 192.168.1.100 Subnet mask 255.255.255.240...
- Page 8 Preliminary Specification Number : P.8/22 GUI image for LAN2: WLAN AP mode and station mode are exclusively supported. The setting can be changed by configuration display. Initial setting: AP mode Item Initial setting Selectable setting Connection Mode Enable Enable or Disable IP address 192.168.2.100 Subnet mask...
- Page 9 Preliminary Specification Number : P.9/22 Initial setting: Station mode Item Initial setting Selectable setting Connection Mode Enable/Static Enable/Static or Disable IP address 192.168.100.100 Subnet mask 255.255.255.240 Default Gateway 192.168.100.101 Channel (*1) Auto Channel 1 -11 or Auto Security Disable Enable (WPA2-PSK AES) or Disable Key length GUI image for Station mode: SubGHz...
-
Page 10: Product Features And Functions
The sensor data via SubGHz and EnOcean can be transferred by HTTP/HTTPS. Data structure is provided by another document. Network configuration Network configuration running on web server is changeable by graphic user interface on web browser. Item Parameter IP address for LBAC0ZZ1SU 192.168.1.100/index.html Initial user name admin Initial password (*1) admin Supported web browser... - Page 11 Preliminary Specification Number : P.11/22 (*1) BASIC certification Data Log The log is automatically stored to micro SD card. Folder YYYY/MM YYYY: Year MM: Month File name XXXXYYYYMMDDHH File is created by every 1 hour XXXX: sg (SubGHz) or enocean (EnOcean) Firmware update Firmware need to be updated with micro SD card when a new version is released by the following process:...
-
Page 12: Graphic User Interface For Configuration
Preliminary Specification Number : P.12/22 5. Graphic user interface for configuration The gateway provides user friendly configuration display running on web server. Menu Apply configuration The new configuration will be applied by push the button of “Update”, and OK on confirmation pop-up message. - Page 13 Preliminary Specification Number : P.13/22 The password can be changed by “Other Setting”. System Reboot The gateway can be rebooted by “System Reboot” and OK on confirmation pop-up message. Confidential...
-
Page 14: Size Of Appearance
Preliminary Specification Number : P.14/22 6. Size of Appearance Confidential... - Page 15 Preliminary Specification Number : P.15/22 Mark Min. Typ. Max. 108.8 109.0 109.2 169.8 170.0 170.2 26.3 26.5 26.7 (Unit: mm) Confidential...
-
Page 16: Part Name And Function
Preliminary Specification Number : P.16/22 7. Part Name and Function Confidential... -
Page 17: Power Supply
Preliminary Specification Number : P.17/22 8. Power Supply DC 5V input from USB cable Model BJA91003 produced by GLORY MARK ELECTRONIC Confidential... -
Page 18: Product Label
XXXYYMMDD LAN1 MAC 12digits individual MAC address LAN2 MAC 12digits individual MAC address WLAN MAC 12digits individual MAC address Certification number for FCC/IC FCC ID: VPYLB1SU IC: 772C-LB1SU Others QR code (For LAN1 MAC) Manufacturer Murata Manufacturing Co., Ltd. Confidential... -
Page 19: Operating Condition
(*) Condition ( Power supply through DC power jack Operating temperature: 25degC WLAN: TX mode Murata Sub-G: Non-active Ethernet transmission data 11. Software License The terms and conditions are followed ESLA or SLA which is separately agreed. Confidential... - Page 20 Handle with care if products may have cracks or damages on their terminals, the characteristics of products may change. 3 Cleaning Any cleaning is not recommended. If cleaning is required, inform Murata beforehand. 4 Operational Environment Conditions Products are designed to work for electronic products under normal environmental conditions (ambient temperature, humidity and pressure).
- Page 21 Preliminary Specification Number : P.21/22 If there are possibilities for products to be used under the preceding clause, consult with Murata before actual use. As it might be a cause of degradation or destruction to apply static electricity to products, do not apply static electricity or excessive voltage while assembling and measuring.
- Page 22 Preliminary Specification Number : P.22/22 Note: Please make sure that your product has been evaluated and confirmed against your specifications. All the items and parameters in this product specification have been prescribed on the premise that our product is used for the purpose, under the condition and in the environment agreed upon between you and us.
