Multifunctional Air Hose Reel
Instruction Manual
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.
REV 03/12/19
Advertisement
Table of Contents
Related Manuals for Super Handy GUR020
Summary of Contents for Super Handy GUR020

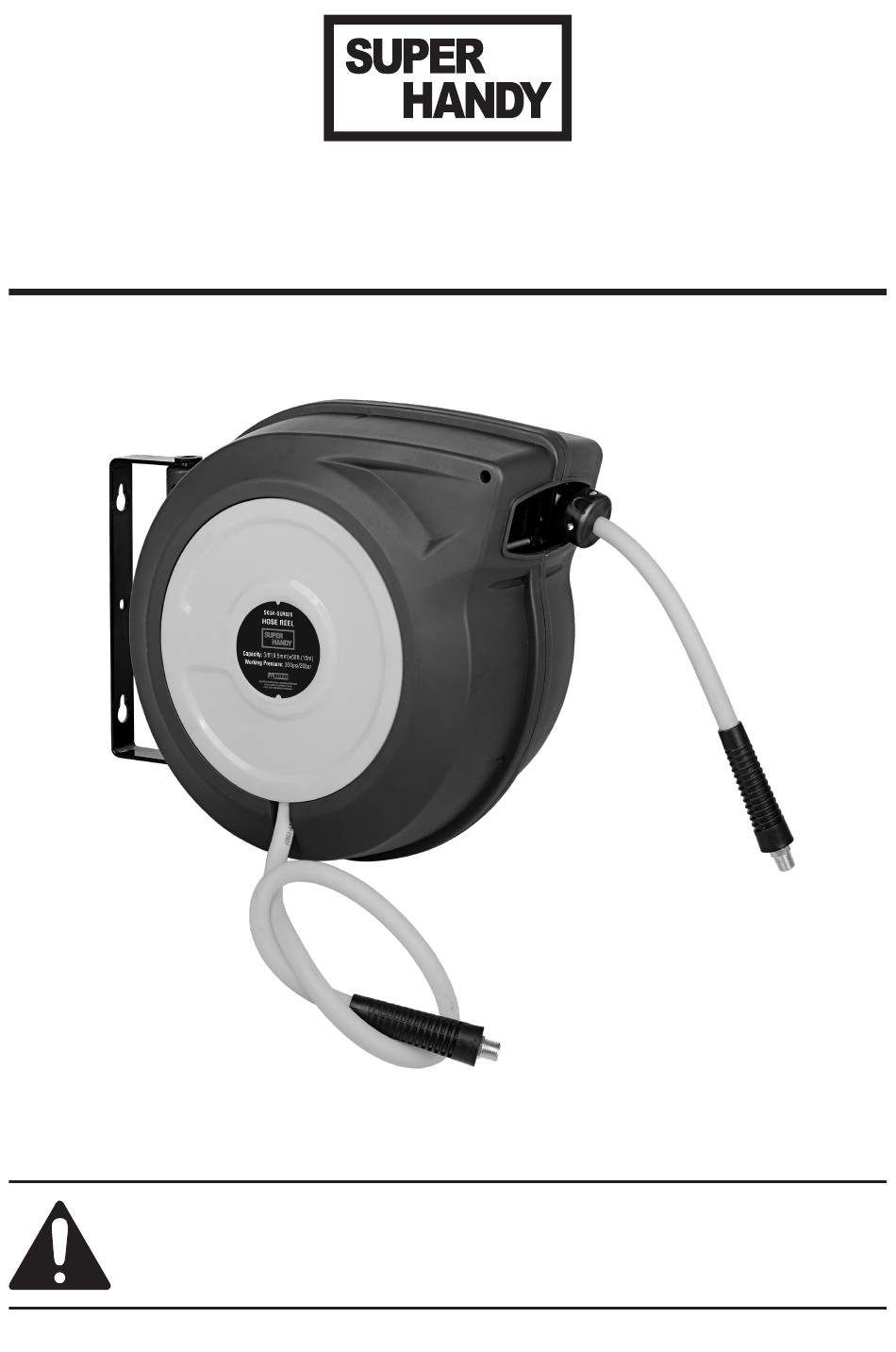

- Page 1 Multifunctional Air Hose Reel Instruction Manual WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. Keep these instructions to assist in future servicing.
- Page 2 GENERAL SAFETY REGULATIONS WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product, but must be supplied by the operator.
- Page 3 TECHNICAL DETAILS Hose Capacity Hose Working SKU# Max Pressure Inlet/Outlet Temperature Material I.D. Length GUR020 300Psi (20Bar) -40°F~176°F (-40°C~80°C) Hybrid Polymer 3/8"/9.5mm 50ft/15m 1/4" 459 [18"] 205 [8"] Ø15.5 [0.6"] Ø8.5 [0.3"] 8.5 [0.3"] Remarks: Stop at any point Slow Retraction Spring driven drum: for automatic retractable.
- Page 4 On the wall & ceiling 4. The end of incoming hose can be connected to desired supply source. 5. Outlet fittings on reel hose attach to desired tool, or nozzle. Check connection for leakage, also check hose reel for correct operation. See: Operation section. 6.
- Page 5 EXPLODED AND PARTS LIST...
- Page 6 Part No. Description Q’ty Part No. Q’ty Description Hose Assembly Right casing O-Ring Baffle Gear Synchronous belt Stop at any point Assembly Synchronous wheel Screws Screws Support cover Spring O-Ring Hose Assembly Spool Guide bar Drum Slow Retraction assembly Fixed pin Bumper Block assembly Base Left shell...
- Page 8 Great Circle USA Support Line: 1-866-493-0524 help@greatcircleus.com www.greatcircleus.com Size: 145x210mm 157克铜版纸 REV 03/12/19 3.02.02.940...
