T10 Programmable TPMS Sensor Quick Start Guide
Sensor Description
Please read this quick start guide carefully before installing the sensor. For safety reasons, we
recommend that only trained technicians perform maintenance and repair work in accordance with the
guidance of the car manufacturer. The valves are safety-related components and are only used for
professional installation. Incorrectly installed TPMS valves and sensors may malfunction. Foxwell does
not assume any liability in case of faulty or incorrect installation of the product.
?

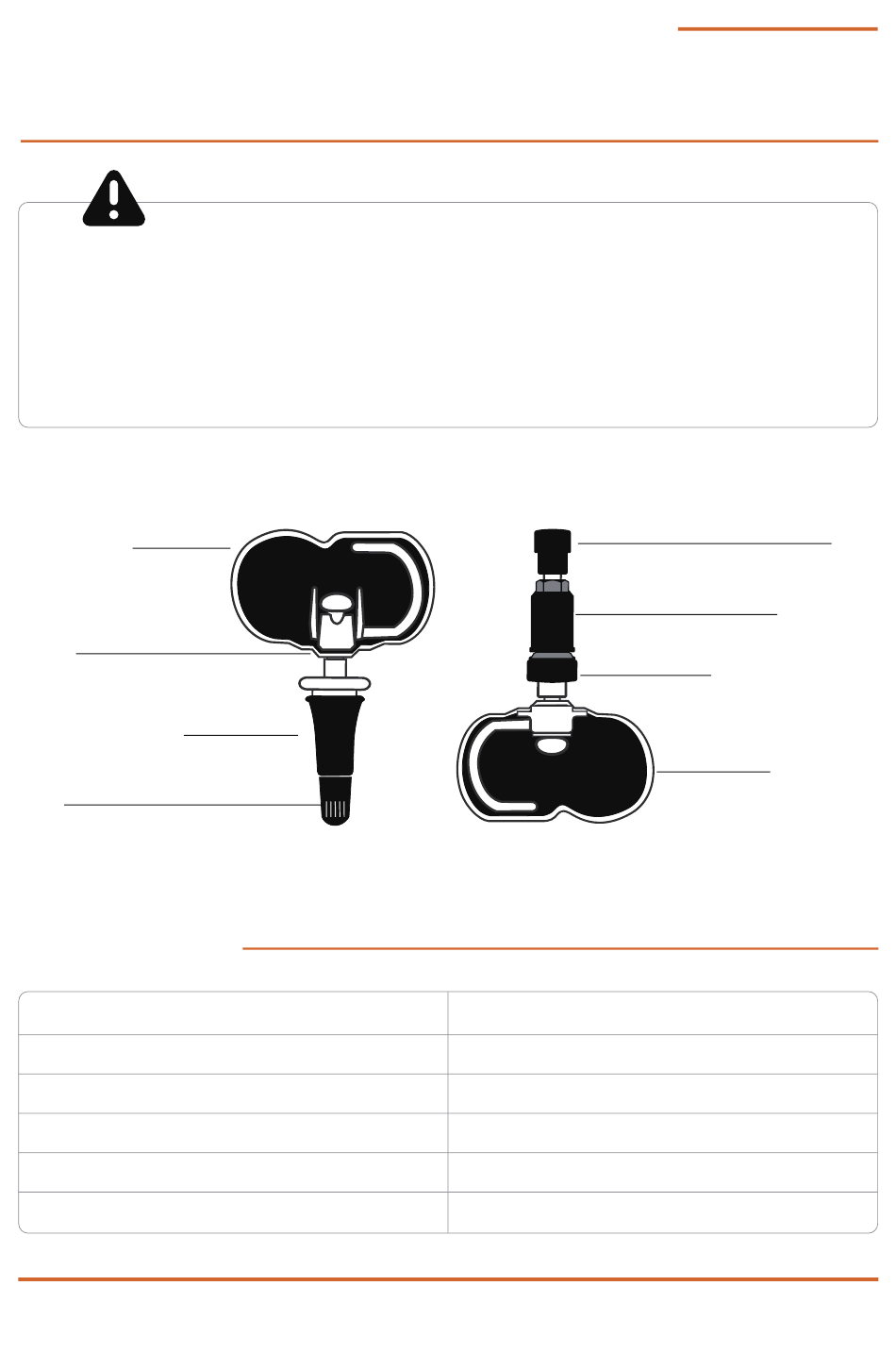

Sensor Body
Shim
Valve Stem,
and rubber grommet
assembly
Cap
Technical Data
Operating Frequency
Pressure Monitoring Range
Battery Life
Vehicle Coverage
Test Accuracy
?
Weight of Sensor without Valve
Pictures illustrated here are for reference only and this Quick Start Guide is subject to
change without prior notice.
Rubber Valve Sensor

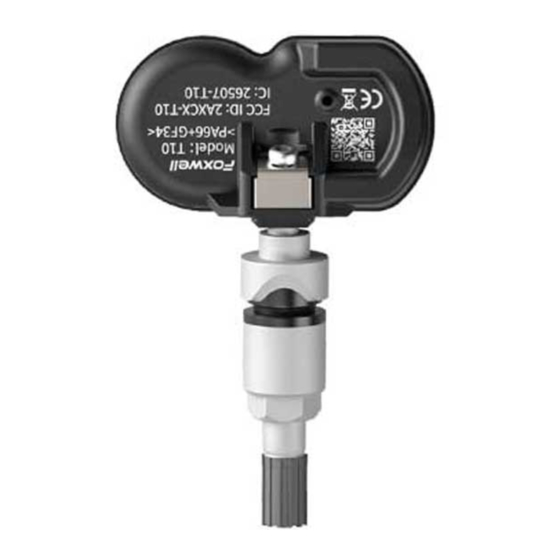

Metal Valve Sensor
315 MHZ / 433 MHZ
0 to 800 kPa
4-6 year
＞96%
± 5 kPa
12 g
Cap
Screw Nut
Valve Stem,
rubber grommet and
valve core assembly
Sensor Body
Advertisement
Table of Contents
Summary of Contents for Foxwell T10
- Page 1 The valves are safety-related components and are only used for professional installation. Incorrectly installed TPMS valves and sensors may malfunction. Foxwell does not assume any liability in case of faulty or incorrect installation of the product.
- Page 2 T10 Programmable TPMS Sensor Quick Start Guide Sensor Installation Foxwell T10 sensor are shipped blank and must be programmed with Foxwell TPMS tool, which is recommended to be performed prior to installation. 1. Deflating the tire Remove the valve cover and valve core to deflate the tire.
- Page 3 When the tire is repaired or disassembled, or if the sensor is disassembled or replaced, the rubber grommet, grommet, screw nut and valve core must be replaced with Foxwell original parts to ensure proper connection. If the sensor is damaged externally, it must be replaced.
- Page 4 T10 Programmable TPMS Sensor Quick Start Guide Rubber Valve Stem Sensor Installation (1) Connect the sensor body and the valve stem. (Screw on the back screw but do not tighten it for adjusting the angle.) (2) Install the valve stem on the valve hole of the rim and adjust the angel between sensor body and the valve stem to fit hub.Then...
