Scout GPS/GLONASS/GSM MT-865 ONE Quick Start Manual

Quick start guide for tracker GPS/GLONASS/GSM МТ-865 ONE
1. General information

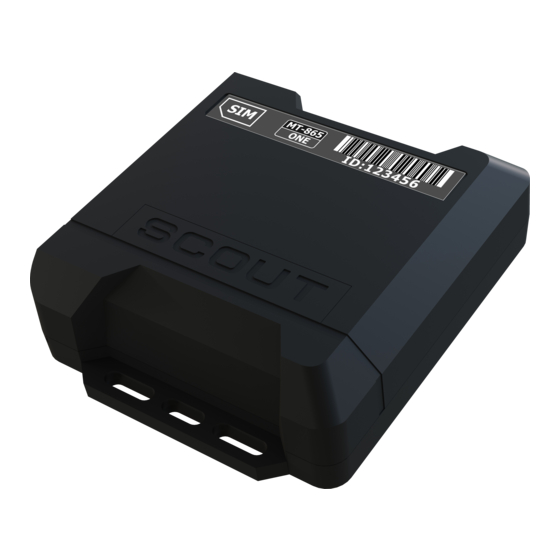

This quick start guide applies to the car tracker GPS/GLONASS/GSM МТ-865 ONE
(hereinafter referred to as the "tracker")
Table 1. Specifications
Parameter
Supply voltage
Average current consumption (24V)
Built-in battery capacity
Built-in battery life time
Working temperature range
Case protection degree
Mass and overall characteristics
Terminal weight
Case size
The amount of non-volatile memory
Number of entries in the telemetry log
Accelerometer
Traffic encryption function
Inputs
Outputs
USB
Value Comment
Power
9 ÷ 36 В
до 125 мА online monitoring
до 45 мА standby
250 mAh supplied as an option
Up to 1 hour depends on settings and
ambient temperature
Operating conditions
with data transfer to the
-40 ÷ +85 °С
server
-10 ÷ +65 °С working from backup battery
0 ÷ +45 °С charge battery protection
IP40
300 grams
88х72х24 mm
Built-in sensors and modules
2 Mbyte
Up to 200 000
+
+
Ports and interfaces
For reading digital, analog,
4
frequency and counter value
Open collector type, switching
1 voltage up to 65 V, current up
to 200 mA
for tracker settings
+
management
2. Indication
On the tracker board there are three LED indicators visible from the outside of the housing to
control the operation of the tracker. The purpose of the indicators is shown in Figure 1 and
described in Table 2
GPS
blue
Figure 1. Purpose of indicators
Table 2.
Indicator status
Blue GPS indicator
Off
Flashing blue 1 time per second - - - - -
Flashing blue once every 5 seconds
GSM indicator green
Off
Flashing green 1 time per second - - - - -
Flashing green once every 5 seconds -
Glows green constantly —————
STATUS indicator red
Off
Glows red constantly —————
Flashes red once every 5 seconds -
Flashes red 1 time per second - - - - -
GSM STATUS
green red
Tracker status
Off/ Power saving mode
Searching and capturing GPS
signals
- - - - Position detected
Off / Power saving mode
Search and registration in the GSM
network
- - - Registered in the GSM network
There is an exchange of information
with one of the Servers
No external power / in
"Hibernation" mode
There is external power
- - Power saving mode
USB powered
