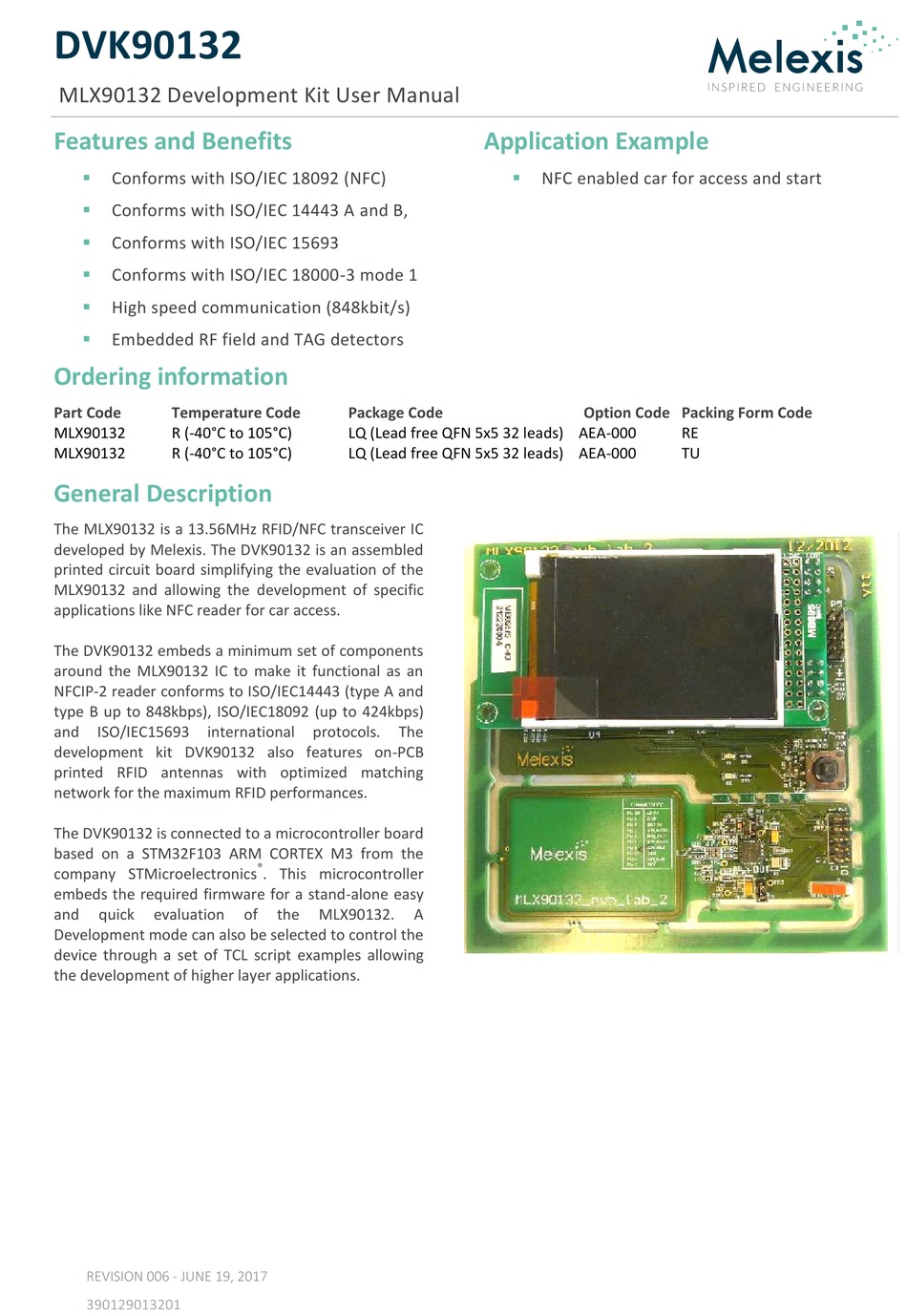

DVK90132

MLX90132 Development Kit User Manual

Features and Benefits



Conforms with ISO/IEC 18092 (NFC)



Conforms with ISO/IEC 14443 A and B,



Conforms with ISO/IEC 15693



Conforms with ISO/IEC 18000-3 mode 1



High speed communication (848kbit/s)



Embedded RF field and TAG detectors

Ordering information

Part Code

Temperature Code

MLX90132

R (-40°C to 105°C)

MLX90132

R (-40°C to 105°C)

General Description

The MLX90132 is a 13.56MHz RFID/NFC transceiver IC

developed by Melexis. The DVK90132 is an assembled

printed circuit board simplifying the evaluation of the

MLX90132 and allowing the development of specific

applications like NFC reader for car access.

The DVK90132 embeds a minimum set of components

around the MLX90132 IC to make it functional as an

NFCIP-2 reader conforms to ISO/IEC14443 (type A and

type B up to 848kbps), ISO/IEC18092 (up to 424kbps)

and

ISO/IEC15693

international

development kit DVK90132 also features on-PCB

printed RFID antennas with optimized matching

network for the maximum RFID performances.

The DVK90132 is connected to a microcontroller board

based on a STM32F103 ARM CORTEX M3 from the

company STMicroelectronics

embeds the required firmware for a stand-alone easy

and

quick

evaluation

Development mode can also be selected to control the

device through a set of TCL script examples allowing

the development of higher layer applications.

REVISION 006 - JUNE 19, 2017

390129013201

Package Code

LQ (Lead free QFN 5x5 32 leads) AEA-000

protocols.

The

. This microcontroller

the

MLX90132.

Application Example



NFC enabled car for access and start

Option Code Packing Form Code

Table of Contents

Need help?

Do you have a question about the DVK90132 and is the answer not in the manual?

Questions and answers

Summary of Contents for Melex DVK90132

Page 1: Features And Benefits
LQ (Lead free QFN 5x5 32 leads) AEA-000 General Description The MLX90132 is a 13.56MHz RFID/NFC transceiver IC developed by Melexis. The DVK90132 is an assembled printed circuit board simplifying the evaluation of the MLX90132 and allowing the development of specific applications like NFC reader for car access.
Page 2: Table Of Contents
4.2.1. TCL engine: ActiveTcl ........................9 4.2.2. TCL editor: Ezdit ..........................9 4.2.3. DVK90132 DLL ..........................9 5. Getting started with the DVK90132 ..................... 10 5.1. Standalone mode ..........................10 5.2. Development mode .......................... 11 5.2.1. TCL script examples ........................11 6.
Page 3: Dvk90132 Global Description
ISO/IEC15693 international protocols. Two on-PCB printed RFID antennas are available and selected through 0ohm bridge resistors. An optimized matching network is also available for maximum RFID performances. The second board forming the DVK90132 is a microcontroller PCB based on a STM32F103 ARM CORTEX M3 form the ®...
Page 4: Dvk90132 Schematic & Bom
The matching network depends on the PCB trace antenna and the VDD_TX to be used. If those values are changed on the DVK90132, the values of the matching network might have to be recalculated accordingly. For more information on how to calculate it, please refer to the application note...
Page 5 DVK90132 MLX90132 Development Kit User Manual Figure 3: Schematics Microcontroller & Peripherals Page 5 of 20 REVISION 006 - JUNE 19, 2017 390129013201...
Page 6: Bill Of Materials
DVK90132 MLX90132 Development Kit User Manual 2.2. Bill of materials The tables below give an overview of all components that compose the development kit DVK90132. Reference Value Description C1, C6 Not Connected Antenna matching, EMI filter capacitors Antenna matching network, parallel resonance...
Page 7 Connector USB-MINI-B, SMD, Right Angled NX5032GA 8MHz S1-2070-5030-10 8MHz Crystal Oscillator from NDK 32kHz 32kHz Crystal Oscillator Table 2: DVK90132 Bill of materials “Schematics Microcontroller & Peripherals” * Components not mounted Page 7 of 20 REVISION 006 - JUNE 19, 2017...
Page 8: Dvk90132 Printed Rfid Antennas
STM32F103 cortex M3. The DVK90132 is built with a 20-pin JTAG connector available below the LCD screen. This allows to easily reprogram the firmware of the DVK90132 using the ST-LINK programmer with the ST_LINK utility software which can be directly downloaded from the link below.
Page 9: Tcl Software
Figure 4: Ezdit TCL editor configuration 4.2.3. DVK90132 DLL This DLL is used to link the DVK90132 with the TCL scripts. After having downloaded it from Melexis SoftDist (directory MLX90132/MLX90132_Software) it has to be placed at the root of the D:/ or C:/ drive.
Page 10: Getting Started With The Dvk90132
The DVK90132 allows very quick and easy evaluation of the MLX90132 NFC/RFID reader IC. By simply connecting the USB port to the user computer, the DVK90132 is supplied and Start-up menu appears. Then the user simply has to select the mode by moving left/right the Joystick on the board (a blue square shows the mode currently selected) and press on it.
Page 11: Development Mode
USB cable. There is no need for a specific driver installation. 5.2.1. TCL script examples Once the DVK90132 is connected to the computer, it can be controlled through TCL scripts. To open the scripts provided on please follow the procedure describes below: Melexis SoftDist ...
Page 12 The command “Idn” is used to get the identification string of the MLX90132. This basic command is defined in the MLX90132 plug-in DLL (please refer to chapter Error! Reference source not found. DVK90132 DLL Script example and MLX90132 response: Script run: Note: The Identification string of the device may differ from the example illustrated above.
Page 13 DVK90132 MLX90132 Development Kit User Manual 5.2.1.2. FieldOff The command “FieldOff” is used to switch off the electromagnetic field generated by the MLX90132 (corresponds to a Protocol select command with parameters to 0). This basic command is defined in the MLX90132 plug-in DLL (please refer to...
Page 14 DVK90132 MLX90132 Development Kit User Manual 5.2.1.3. Select The command “Select” is used to select the RFID communication mode of the MLX90132. The parameters are described in the MLX90132 datasheet and this basic command is defined in the MLX90132 plug-in DLL (please refer to chapter...
Page 15 DVK90132 MLX90132 Development Kit User Manual 5.2.1.4. SendReceive The command “SendReceive” is used to manage the RFID communication in Reader mode. This command sends a request to the TAG or Target and gets the corresponding answer from the TAG or Target. The “SendReceive” command has to be used after the RFID protocol is selected with the command “Select”.
Page 16 10s. The message “a TAG was detected” is displayed if a TAG – or any other object able to modify the near environment of the DVK90132 antenna - is detected during the next 10s. Script example and MLX90132 response:...
Page 17 DVK90132 MLX90132 Development Kit User Manual 5.2.1.6. ISO/IEC14443 REQA and REQB requests In the following example, the MLX90132 is configured to send commands requests compatible with ISO/IEC14443 type A and type B. These commands allow getting the UID of the compatible TAGs present in the field.
Page 18 The script runs a continuous inventory and checks the answer with the golden UID. If it matches, a message “door open” is displayed otherwise the message “door close” remains. Script run: Valid TAG in front of DVK90132 antenna (Golden key No valid card placed in front of DVK90132 antenna detected)
Page 19 DVK90132 MLX90132 Development Kit User Manual The following picture shows when a NFC compliant mobile phone with a valid key is placed on the DVK90132 antenna, the golden UID is recognized and displayed. Figure 9: NFC enabled car for access and start...
Page 20: Contact
DVK90132 MLX90132 Development Kit User Manual 6. Contact For the latest version of this document, go to our website at www.melexis.com. For additional information, please contact our Direct Sales team and get help for your specific needs: Europe, Africa Telephone: +32 13 67 04 95 Email : sales_europe@melexis.com...
