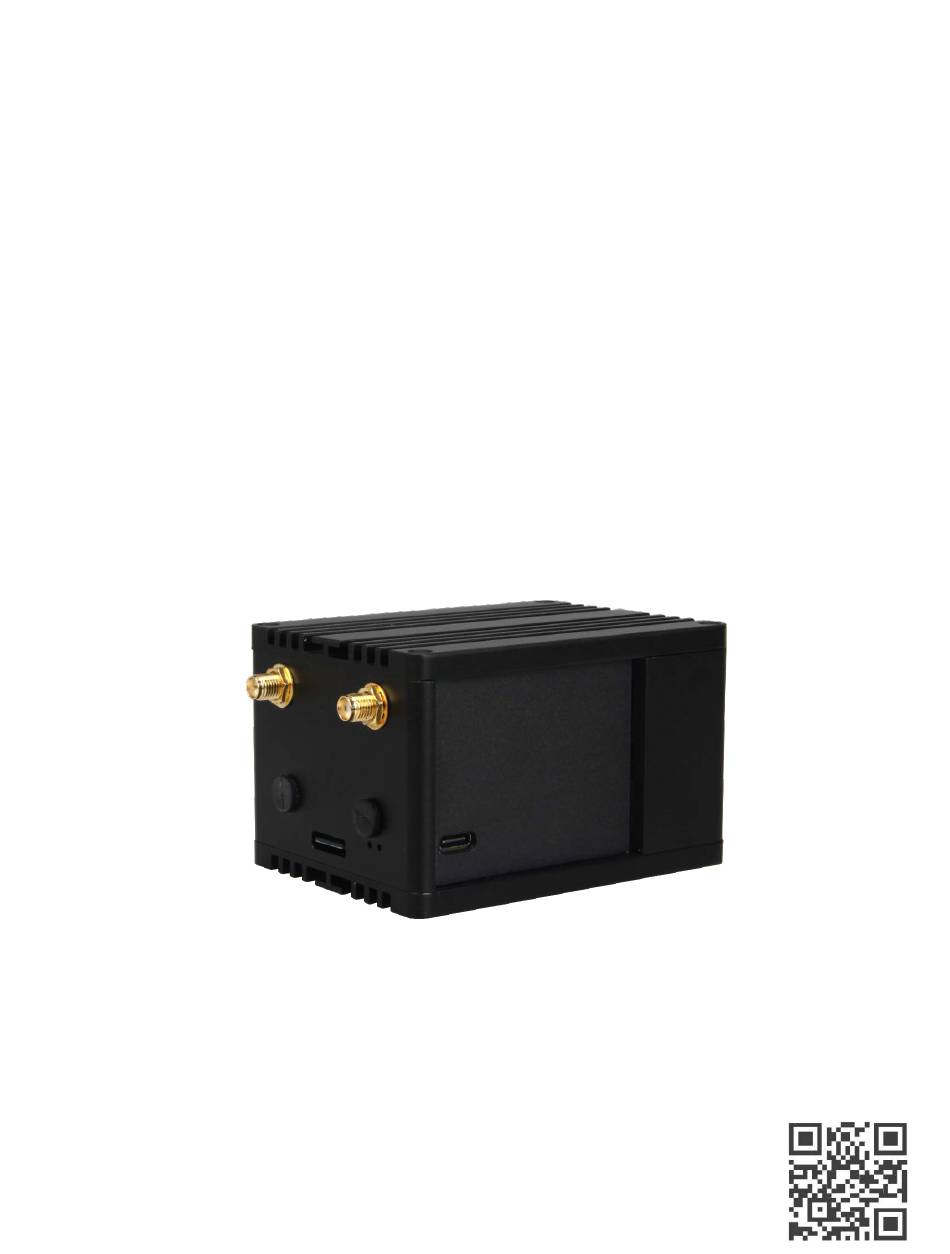

- Page 1 User Manual for WisGate RAK7248 Version1.3| September 2020 www.RAKwireless.com Visit our website for more document. 14 PAGES...
-
Page 2: Table Of Contents
Table of Contents 1. Overview ............................ 3 1.1. Introduction........................3 1.2. Main Features ........................4 1.3. Package Contents ......................4 2. WisGate RAK7248........................5 2.1. Overview..........................5 2.2. Interface..........................5 2.3. SystemStructure....................... 6 2.4. -
Page 3: Overview

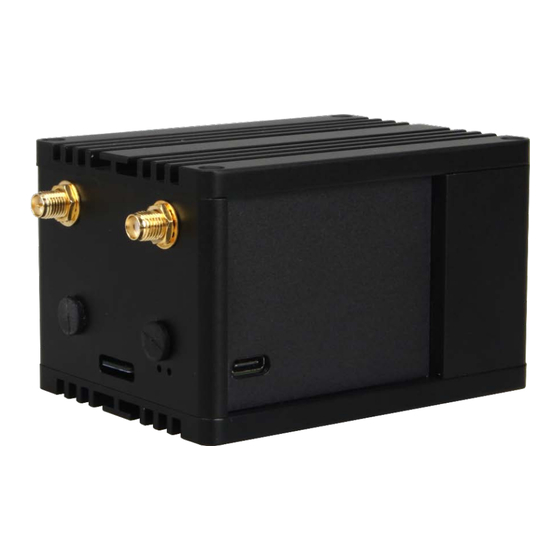

7248 7. Document Summary ....................... 14 1. Overview 1.1. Introduction The RAK7248 WisGate is a device that consists of Raspberry Pi 4 Model B, RAK2287 which includes a GPS module and a Heat Sink for better performance and thermal heat dissipation management. -
Page 4: Main Features
7248 1.2. Main Features Computing with Raspberry Pi4 Model B(Linux). 64-bit SX1302 base band processor, 500 kHz LoRa reception with 8 x 8 channels LoRa® packet detectors,8 x SF5-SF12 LoRa® demodulators,8 x SF5-SF10 LoRa® demodulators. Built-in the GPSModule. ... -
Page 5: Wisgate Rak7248
7248 2. WisGate RAK7248 2.1. Overview The shell of RAK7248 is made of metal The outer dimension of WisGate is 92 x 68.3 x 57.2 mm as shown below. Figure 3 | Outer Dimensions 2.2. Interface... -
Page 6: Systemstructure
7248 Figure 4 | Interfaces 2.3. SystemStructure The following figure shows the basic concept for LoRaWAN system. RAK7248 WisGate is the central hardware solution for all LoRa based radio communication. It receives and transmits radio messages. The processing of radio messages as well as the protocol related tasks is done by embedded host system (Raspberry Pi). -
Page 7: Lora Operating Frequencies
7248 2.5. LoRa Operating Frequencies The WisGate supports all LoRaWAN frequency bands as below. Which is easy to configure while building the firmware from the source code. Region Frequency Europe EU433,EU868 China CN470 North American US915 Asia AS923,AS920 Australia AU915 Korea KR920 Indian... -
Page 8: Transmitter Rf Characteristics
7248 2.8. Environmental Requirements The table below lists the operation and storage temperature requirements: Parameter Min. Typical Max. Operation Temperature Range -20 ºC +25 ºC +65 ºC -40 ˚C +85 ˚C Extended Temperature Range -40 ˚C +85 ˚C Storage Temperature Range Table 3| Environment Requirements 2.9. -
Page 9: 2Antenna Dimension
7248 Figure 6 | LoRa Antenna Overview 3.1.2Antenna Dimension The antenna's mechanical dimension is shown below: Figure 7 | LoRa Antenna Dimension 3.1.3Antenna Parameter... -
Page 10: 1Overview
7248 Table 6| LoRa Antenna Parameter 3.2. GPS Antenna 3.2.1Overview The GPS antenna for WisGate is shown below. Figure 8 | GPS Antenna 3.2.2GPS Antenna Dimensions Figure 9 | GPS Antenna Dimensions 3.2.3GPS Environmental Requirements The antenna environmental requirements are listed in the table below:... -
Page 11: 4Gps Antenna Parameter
7248 Conditions Temperature Humidity Working -35 ºC ~ +80 ºC 0% ~ 95% Storage -40 ºC ~ +85 ºC 0% ~ 95% Table 7| GPS Environmental Requirements 3.2.4GPS Antenna Parameter Antenna specifications are listed in the table below: Item Specifications Range of Receiving Frequency 1575.42±1.1 ±2.5... -
Page 12: Fcccaution
7248 2. Low temperature test: soap in temperature (-40º C) chamber for 24-hour and return to normal temperature (at least for 1-hour) without visual shapechange. Table 10| Environmental Test Performance 4. FCCCaution FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. -
Page 13: Revision History
7248 this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le... - Page 14 Penn About RAKwireless: RAKwireless is a pioneer in providing innovative and diverse Cellular and LoRaWAN connectivity solutions for both Edge and Gateway IoT devices. We believe that through easy to use and modular designs we can accelerate the time to market for various IoT Applications in order to...
