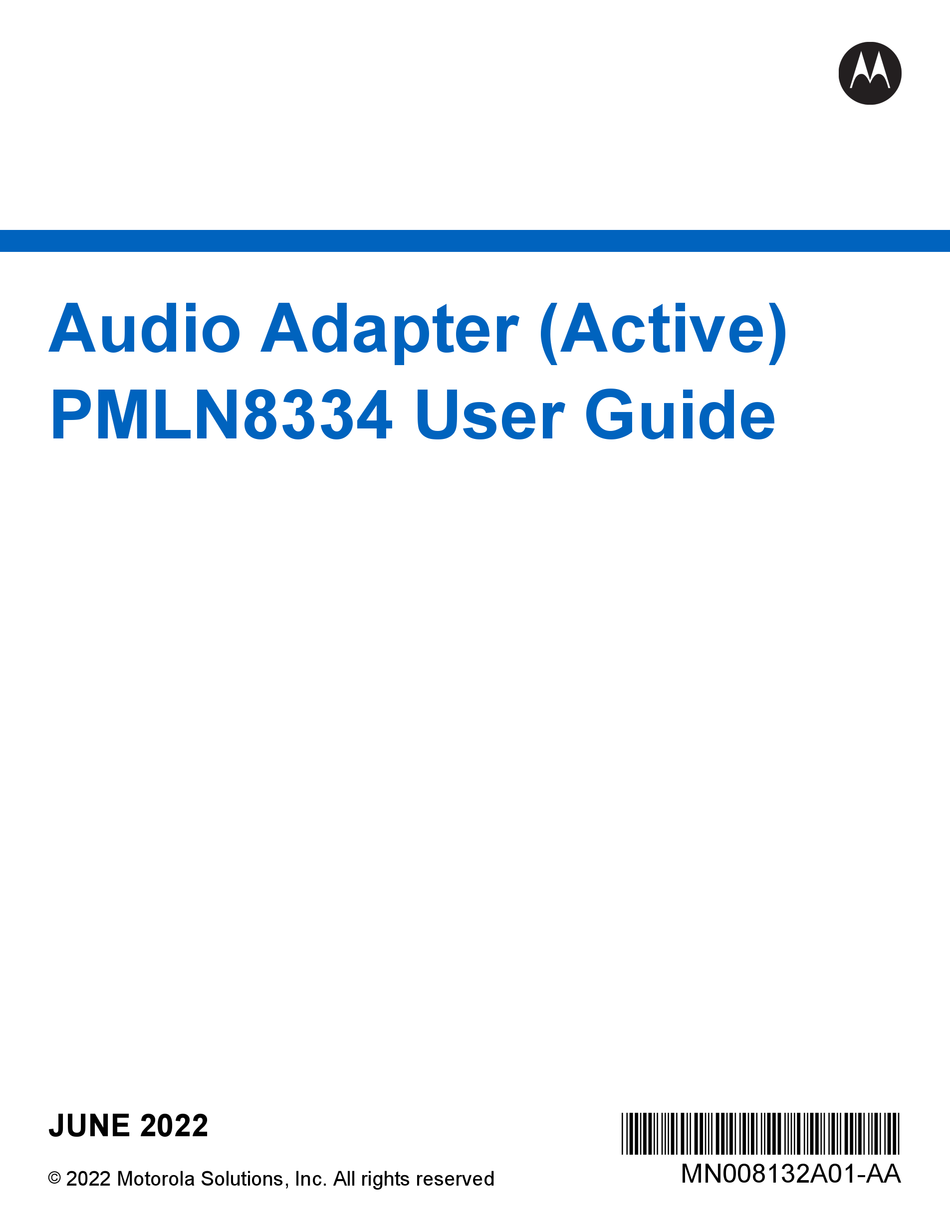

- Page 1 Audio Adapter (Active) PMLN8334 User Guide JUNE 2022 *MN008132A01* MN008132A01-AA © 2022 Motorola Solutions, Inc. All rights reserved...
-
Page 2: Table Of Contents
MN008132A01-AA Contents Contents Disclaimer........................3 Safety and Legal......................4 Intellectual Property and Regulatory Notices.................4 Conformity Markings........................5 Icon Conventions......................6 Foreword........................7 Attention!............................7 Chapter 1: Product Overview...................8 1.1 Radio Operation with Adapter....................8 Chapter 2: Attaching the Adapter and Accessory..........9 Chapter 3: Removing the Adapter and Accessory..........11 Chapter 4: Cable Management................12 Chapter 5: Service and Warranty................13... -
Page 3: Disclaimer
Furthermore, Motorola Solutions reserves the right to change any products to improve readability, function, or design. Motorola Solutions does not assume any liability arising out of the applications or use of any product or circuit described herein; nor does it cover any license under its patent rights, nor... -
Page 4: Safety And Legal
License Rights The purchase of Motorola Solutions products shall not be deemed to grant either directly or by implication, estoppel or otherwise, any license under the copyrights, patents or patent applications of Motorola Solutions, except for the normal non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. -
Page 5: Conformity Markings
MN008132A01-AA Safety and Legal a specific mobile subscriber unit or configuration of certain parameters. Please refer to your Motorola Solutions contact for further information. 2022 Motorola Solutions, Inc. All Rights Reserved © Conformity Markings... -
Page 6: Icon Conventions
MN008132A01-AA Icon Conventions Icon Conventions The documentation set is designed to give the reader more visual clues. The following graphic icons are used throughout the documentation set. DANGER: The signal word DANGER with the associated safety icon implies information that, if disregarded, will result in death or serious injury. -
Page 7: Foreword
Attention! The PMLN8334 Audio Adapter (Active) is only compatible with audio accessories product. This PMLN8334 Audio Adapter (Active) is non-certified for ATEX/IECEx, TIA4950, or any Hazardous Location certification. It provides functionality and operation of existing GCAI audio accessories to the APX N radio. -
Page 8: Chapter 1: Product Overview
Chapter 1 Product Overview The PMLN8334 is an Audio Adapter (Active). NOTE: Contact a Motorola Solutions representative for your radio compatibility with the audio accessory adapter and applicable audio accessories. Radio Operation with Adapter The radio operation changes when the adapter with an audio accessory is attached to the radio. For example, the radio audio is muted and routed through the adapter to the attached audio accessory. -
Page 9: Chapter 2: Attaching The Adapter And Accessory
MN008132A01-AA Attaching the Adapter and Accessory Chapter 2 Attaching the Adapter and Accessory Procedure: 1 To attach the audio accessory to the adapter, hook on the accessory Global Core Accessory Interface (GCAI) connector to the adapter. Number Description Adapter Accessory GCAI connector 2 Insert the accessory GCAI connector and turn the screw clockwise. - Page 10 MN008132A01-AA Chapter 2 : Attaching the Adapter and Accessory 3 To attach the adapter to the radio, hook the GCAI Mini connector and turn the screw clockwise. 4 Turn on the radio.
-
Page 11: Chapter 3: Removing The Adapter And Accessory
MN008132A01-AA Removing the Adapter and Accessory Chapter 3 Removing the Adapter and Accessory Procedure: 1 Turn off the radio. 2 To remove the adapter from the radio, turn the screw anti-clockwise and detach the Global Core Accessory Interface (GCAI) Mini connector. 3 To remove the GCAI audio accessory from the adapter, turn the screw anti-clockwise and detach the connector. -
Page 12: Chapter 4: Cable Management
MN008132A01-AA Chapter 4 : Cable Management Chapter 4 Cable Management This section describes the recommended cable position. Figure 1: Recommended Figure 2: Not Recommended To ensure optimum range and user experience, it is recommended to avoid crossing accessory cable with the radio antenna. -
Page 13: Chapter 5: Service And Warranty
Chapter 5 Service and Warranty The PMLN8334 Audio Adapter is not repairable. Order a replacement adapter as necessary. The audio adapter is covered under the standard Motorola Solutions one-year limited warranty. Refer to your Motorola Solutions dealer or point-of-purchase for detailed information on warranty...
