Opti-Med
®

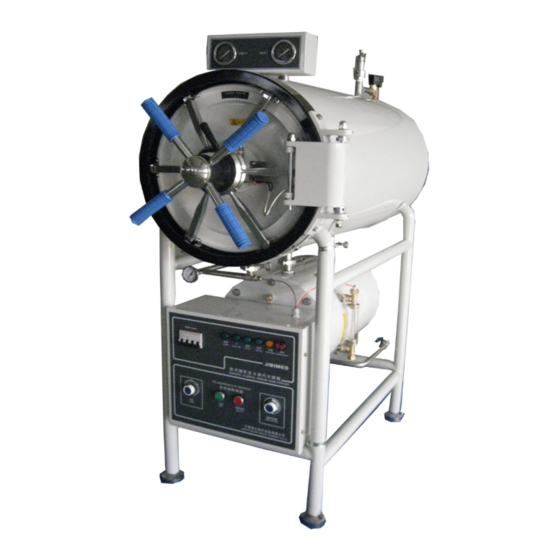

Horizontal Cylindrical Pressure Steam Sterilizer
JM032-HA Series
Model
USER MANUAL
Hangzhou Jupiter Medical Equipment Co., Ltd
1116, Gudun Road, West Lake District, Hangzhou, China
Tel: +86-15021634329
Web: www.opti-med.net
Email: info@opti-med.net
Warning: please read the user's manual carefully before using the machine.
Advertisement
Table of Contents
Summary of Contents for Opti-Med JM032-HA Series
- Page 1 Opti-Med ® Horizontal Cylindrical Pressure Steam Sterilizer JM032-HA Series Model USER MANUAL Hangzhou Jupiter Medical Equipment Co., Ltd 1116, Gudun Road, West Lake District, Hangzhou, China Tel: +86-15021634329 Web: www.opti-med.net Email: info@opti-med.net Warning: please read the user’s manual carefully before using the machine.
-
Page 2: Specifications
Opti-Med ® Horizontal Cylindrical Pressure Steam Sterilizer Autoclave Machine) General Saturated pressure steam is used to sterilize article, for it will liberate a great amount of heat when condensing. To make the articles (need to be sterilized) hot and wet for a certain time, most resistant bacterial spores will be killed, and then sterilization aim is reached. - Page 3 Opti-Med ® and admit steam from jacket to chamber to make articles moist and heated. The above-mentioned method ensures requirements for pre-heating, sterilizing, drying and following operations. The vaporizer, gauge in front above easy watch, the thermometer on the side, all the pilots and display in front lower part control box for easy operating.
- Page 4 Opti-Med ® sterilizing temperature ( range 105℃~134℃) sterilizing time (range 1~60min.) key start press key start, the auto program sterilizing or dry begin, repeat press useless. key emergency stop press the key emergency stop recovered to connect power, vaporizer, and electric valve open all and release, pilot start, heat, sterilize off, repeat press useless.
-
Page 5: Installation
Opti-Med ® when the unit suddenly break the power and you need take the objects be sterilize urgent, you can manually turn on the bulb valve on the rear release the pressure, until the gauge back to zero you can take the objects. -
Page 6: Operation
Opti-Med ® Connect inlet with tap water supply and outlet with drain pipelines so as to make daily operation simpler. Extend exhaust pipe outside to avoid vapor throughout inside, so as to affect operation inside. During sterilizing, condense will be discharged through the condense ejector. It is suggested that a cone-shaped funnel is supplied to join the exhaust pipe and drain pipe. - Page 7 Opti-Med ® Objects Required heat Steam Pressure Relative steam preservation time Temperature ℃ (min) Rubber goods 0.1 – 0.11 Surgical dressings 15 - 20 0.1 – 0.22 121– 134 Utensils 0.1 – 0.22 121– 134 Instruments 0.1 – 0.22 121– 134...
-
Page 8: Maintenance
Opti-Med ® heating(auto release the condense)----drying(timing)----end auto display pilot indicator in drying processing power pilot on---- start pilot on---- heating pilot on---- sterilizing pilot on (heating pilot flash)---- heating,sterilizing pilot off Notice Do not sterilize different articles at the same time, such as dressing and solution or the same article but has different sterilization requirements ... - Page 9 Opti-Med ® for a period and large difference please replace. Breakdown Possible cause Removes method Dirt accumulated Unscrew the cover, clean the between the seats of ejector Required temperature in the the valve chamber can’t be reached The front part to the...
