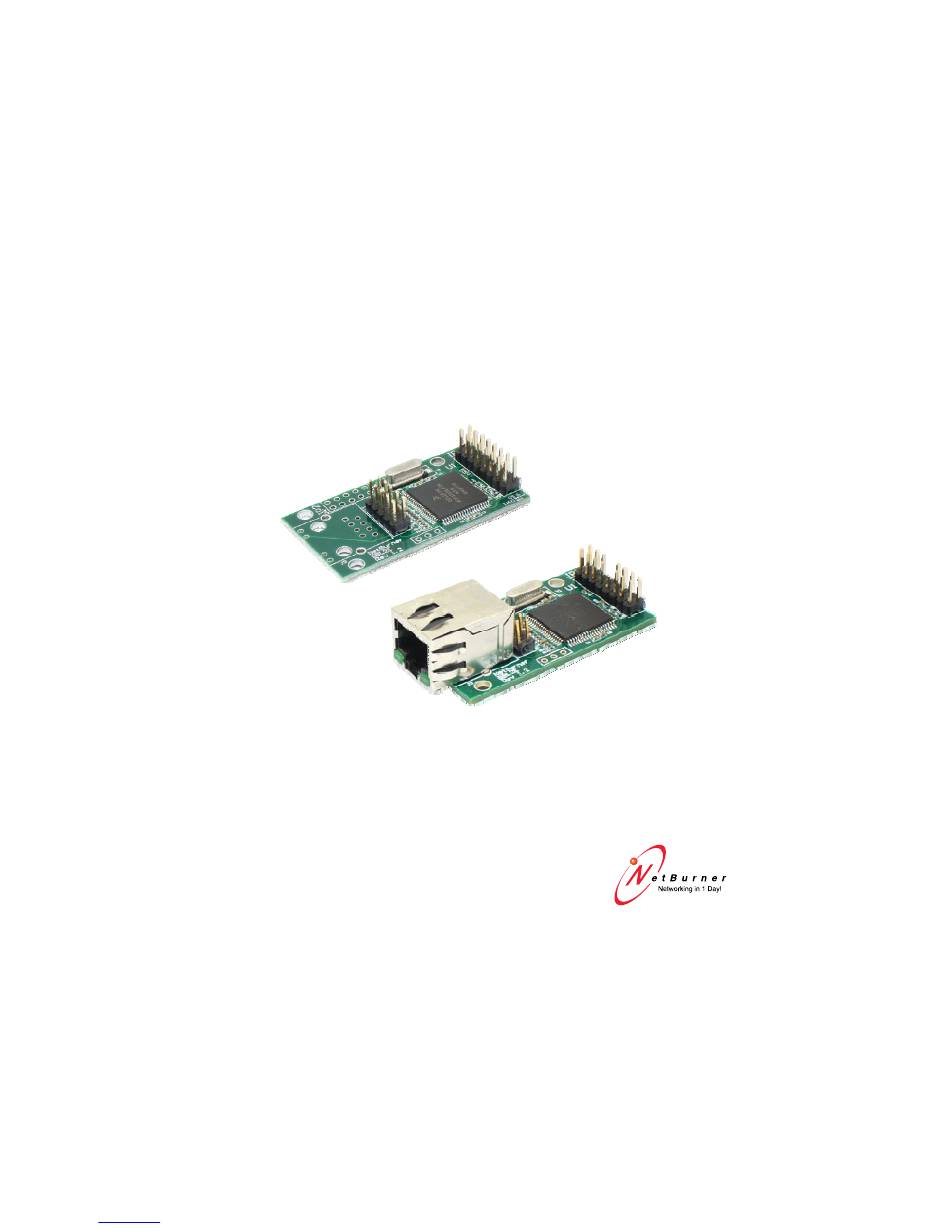

- Page 1 NetBurner, Inc. Evaluation Kit SBL2e Quick Start Guide Rev 1.1 August 2009 www.netburner.com Downloaded from Elcodis.com electronic components distributor...
- Page 2 SBL2e Evaluation Kit Quick Start Guide BLANK Downloaded from Elcodis.com electronic components distributor...
- Page 3 SBL2e Evaluation Kit Quick Start Guide Introduction The SBL2e Evaluation Kit is designed as a complete evaluation platform for NetBurner’s SBL2e board with 2 UART serial interfaces, four 12-bit analog to digital inputs, up to 10 general purpose I/O and 10/100 Ethernet support.
-
Page 4: Table Of Contents
Ethernet Connector ...................8 Figure 2. RJ-45 Ethernet Connector ..........8 Hardware Setup ..................9 Figure 3. The SBL2e carrier board with SBL2e-200IR ....9 Obtaining an IP Address ................9 Static IP Address ................10 Dynamic IP Address (DHCP) ............10 Running the NetBurner Factory Program ..........10 Figure 4. -
Page 5: Overview
RoHS Compliant Kit Contents • Quick start guide • SBL2E-200IR Serial to Ethernet Module • SBL2E adapter board with RS-232 level shifter • USB Cable (for power and/or serial communication) • Standard Ethernet Cable (blue) • Cross-wired Ethernet Cable (red) •... -
Page 6: Download The Public Netburner Software
Download the Public NetBurner Software The software for this kit is included in the documentation and software CD-ROM or it can also be downloaded from the NetBurner website. This software is publically available only for use on NetBurner devices. •... -
Page 7: Power Supply
SBL2e Evaluation Kit Quick Start Guide Power Supply The SBL2e carrier board is designed to be powered by a standard USB port or a 7.5V DC power supply. It is possible to configure the carrier board to use one of the following sources for the power supply. -
Page 8: Ethernet Connector
SBL2e Evaluation Kit Quick Start Guide Table 2. USB or UART 0 Data Routing Options Jumper Description Configuration For RX data from UART 0 DB9 (J7) For RX data from USB (J4) (Default) For CTS data from UART 0 DB9 (J7) -
Page 9: Hardware Setup
Obtaining an IP Address To get your application up and running as quickly as possible, you must first have an IP Address for both your host computer and your SBL2E. The NetBurner factory default program supports both Static and DHCP Downloaded from Elcodis.com... -
Page 10: Static Ip Address
Note: You cannot use the blue patch cable to connect directly to a network card in a computer. If you do not have a hub and want to connect your SBL2E directly to your host computer - Use the red RJ-45 patch cable. Note: You cannot use the red patch cable to connect to a network hub port or existing network jack. -
Page 11: Testing With A Telnet Connection
Static IP Address could be 10.1.1.111 and the Mask could be 255.255.255.0. Note: Remember to click the Set button in the IPSetup window to send (and save) the modifications in your SBL2E board. If you are using DHCP, verify that the IP Address and Mask have been set. -
Page 12: Telnet To Serial Test Procedure
When you type text in the telnet window, it should appear in the serial terminal window and visa versa. In the following example, an IP Address of 10.1.1.79 is be used for the SBL2e. Replace this IP address with the actual IP Address of your SBL2e. Telnet to Serial Test Procedure Connect your hardware in one of the above configurations. - Page 13 23” after the prompt, and press the Enter key. The “23” is the network port number of the SBL2e that is listening for incoming connections. This example syntax uses the default value of 23 for SBL2e serial port 0, which is connected to the USB serial interface and to the SBL2e serial port 0.
-
Page 14: Sbl2E Interface Connector Pinout
For additional signal information, please refer to the SBL2E- 100CR datasheet. Table 3. J8 Interface Connector Pinout... -
Page 15: Adapter Board Connector Pinout
SBL2e Evaluation Kit Quick Start Guide Adapter Board Connector Pinout J7 Provides RS-232 signal levels for UART 0. Null modem configuration. Table 4. RS-232 UART 0, DB-9 Female Pin on J7 Signal Description Pin on J7 Signal Description Short to 6 Short to 4 J5 Provides RS-232 signal levels for UART 1. -
Page 16: Additional Services
Software Licensing The Software included in your NetBurner Network Evaluation Kit is licensed to run only on NetBurner provided hardware. Please read the license.txt file located (by default) in your C:\Nburn\docs directory. If your application involves manufacturing your own hardware, please contact Sales@NetBurner.com for details on a royalty-free software... -
Page 17: Life Support Disclaimer
NetBurner, Inc. prior to use. As used herein: (1) Life support s or systems are s or systems that (a) are...
