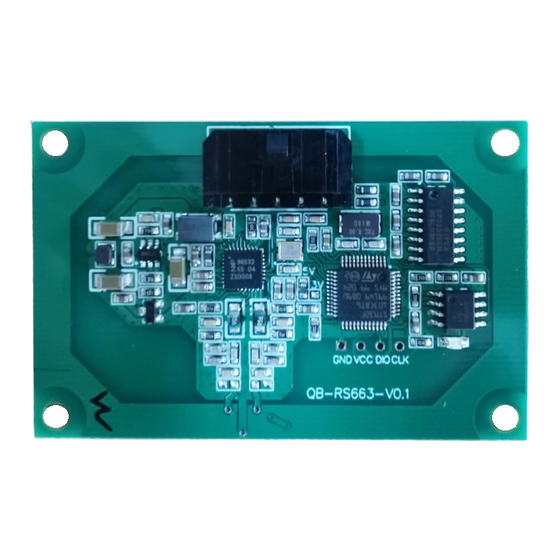

- Page 1 Kunshan QuanBao Electronic Ltd. Product Technical Specification Confirmation Product Name：QB-RS663 Card Reader Module Product Model：QB-RS663 Product SN：QB-RS663-V0.1A Kunshan QuanBao Electronic Ltd. Address:No. 515, Lidu Road, QianDeng Town, Kunshan City Tel: 0512-57279908 — 1 —...
-
Page 2: Product Introduction
Kunshan QuanBao Electronic Ltd. 1.Product Introduction OM9663 is the main chip used on QB-RS663 RFID reader model.OM9663 is the multi- protocol RF read card IC launched by NXP company.It is RF card reading IC with most supported protocols so far. OM9663 is a highly integrated transceiver chip, which is used on non contact communication for 13.56MHz. -
Page 3: Product Technical Specification
Kunshan QuanBao Electronic Ltd. 3.Product Technical Specification Electrical Specifications Working Current 40-60mA@ DC 12V Idle Current 5-10mA@DC 12V Sleep Current <80uA Peak Current <80mA Working Frequency 13.56MHz +/- 0.3KHz Communication Distance ≦4.5cm@DESFire Mechanical Specifications Product Size： 65mm×42mm×6mm Working Temp(℃) -40~85 Storage Temperature(℃) - Page 4 Kunshan QuanBao Electronic Ltd. Antenna-Layer View 5.Product Specification Chart 6.Pin Definition Diagram — 4 —...
-
Page 5: Communication Protocol
Kunshan QuanBao Electronic Ltd. Pin Name Function +12V Power supply The power supply current should more than 100mA,LDO is recommend Power supply ground RS232 RXD User TXD RS232 TXD User RXD Power supply ground 7.Communication protocol The communication is initiated by the host computer (command packet)，and the reader- board returns ACK data (response packet) after receiving the command. -
Page 6: Command Table
Kunshan QuanBao Electronic Ltd. DATA：data field (optional fields: there is no data in the data field when LEN is 0x0000) LRC：Parity Check Codes, byte by byte or value of all data in the packet (excluding the start character of 0x02 and the end character of 0x03) 0x03：terminator... - Page 7 Kunshan QuanBao Electronic Ltd. Uid_Len 1 byte uid length card unique identification number Explain: After receiving the command, the card reader enters the automatic card searching state and returns the response. It will continue the automatic card search later. It returns new result when the card search result changes (from card to card free, or from card free to card present).
- Page 8 Kunshan QuanBao Electronic Ltd. answer： DATA： nothing 6. M1 card reading command： CMD： 0x14 DATA： Adr: 1 byte block number answer： DATA： R_Data: 16 bytes data 7. M1 card writing command： CMD： 0x15 DATA： Adr: 1 byte block number data：...
- Page 9 Kunshan QuanBao Electronic Ltd. CMD： 0x17 DATA： KNO： 1 byte key number password： 16 byte key number answer： DATA： password2: 16 byte encryption key 10. Desfire card key modification command： CMD： 0x18 DATA： KNO： 1 byte key number password： 16 byte new key...
-
Page 10: Flow Diagram
Kunshan QuanBao Electronic Ltd. DATA： none 13. M1 card read file (merge instruction) command： CMD： 0x1B DATA： Mode: 1 byte 0x00 verify A password 0x04 verify B password Sector: 1 byte sector for password verification Adr : 1 byte block number... - Page 11 Kunshan QuanBao Electronic Ltd. 1. Card reading process — 11 —...
- Page 12 Kunshan QuanBao Electronic Ltd. 2. Card Writing Process — 12 —...
- Page 13 Kunshan QuanBao Electronic Ltd. 10.Attention 1、 As the electromagnetic wave in 13.56MHz band can be absorbed by water and other liquids, and also reflected by metals,so the antenna position of the card reader module should be as far away from liquid and metal as possible, with clearance above 2cm .
- Page 14 Kunshan QuanBao Electronic Ltd. 3. RF exposure statement This equipment complies with radio frequency exposure limits set forth by the FCC for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the device and the user or bystanders.
