AGNEUS AGCD2035HP User Manual

General Safety Recommendations

1. Batteries stores a large amount of energy. Under all circumstances, never short circuit a Battery. We
recommend connecting a fuse directly to the positive battery terminal, adjusted to the maximum intensity of
use and without overpass the nominal intensity of AGNEUS Regulator.
2. Batteries can produce flammable gases. Avoid making sparks using fire or any naked flame. Be sure that the
battery room is ventilated.
3. Avoid touching or short circuiting wires or terminals. Use isolated tools, remains always in dry floor and keep
your hands dry.
4. Keep children away from batteries and the charge regulator.
5. Please, observe the safety recommendations of the battery manufacturer. If you have any doubt, consult your
seller or installer.

Intended Use

The charge regulator is designed to be used in a isolated photovoltaic system for a Lead-acid battery with 12V of
nominal voltage.

Liability Exclusion

The manufacturer shall not be able for damages, especially on the battery, caused by use other than as intended or as
mentioned in this manual, or if the recommendations of the battery manufacturer are neglected. The manufacturer shall
not be liable if there has been service or repair carried out by any unauthorized person, unusual use, wrong installation
or bad system design. Opening case voids warranty.

General Description

The High Power battery charge regulator AGNEUS AGCD2035HP tracks the Maximum Power Point of the photovoltaic
module (Maximum Power Point Tracking MPPT), increasing the electric energy yields if compares with the traditional
market regulators. Moreover, it makes an active control of photovoltaic module and loads, to protect battery from
overcharge and extended uses without finishing a deep battery charge or equalization charge.

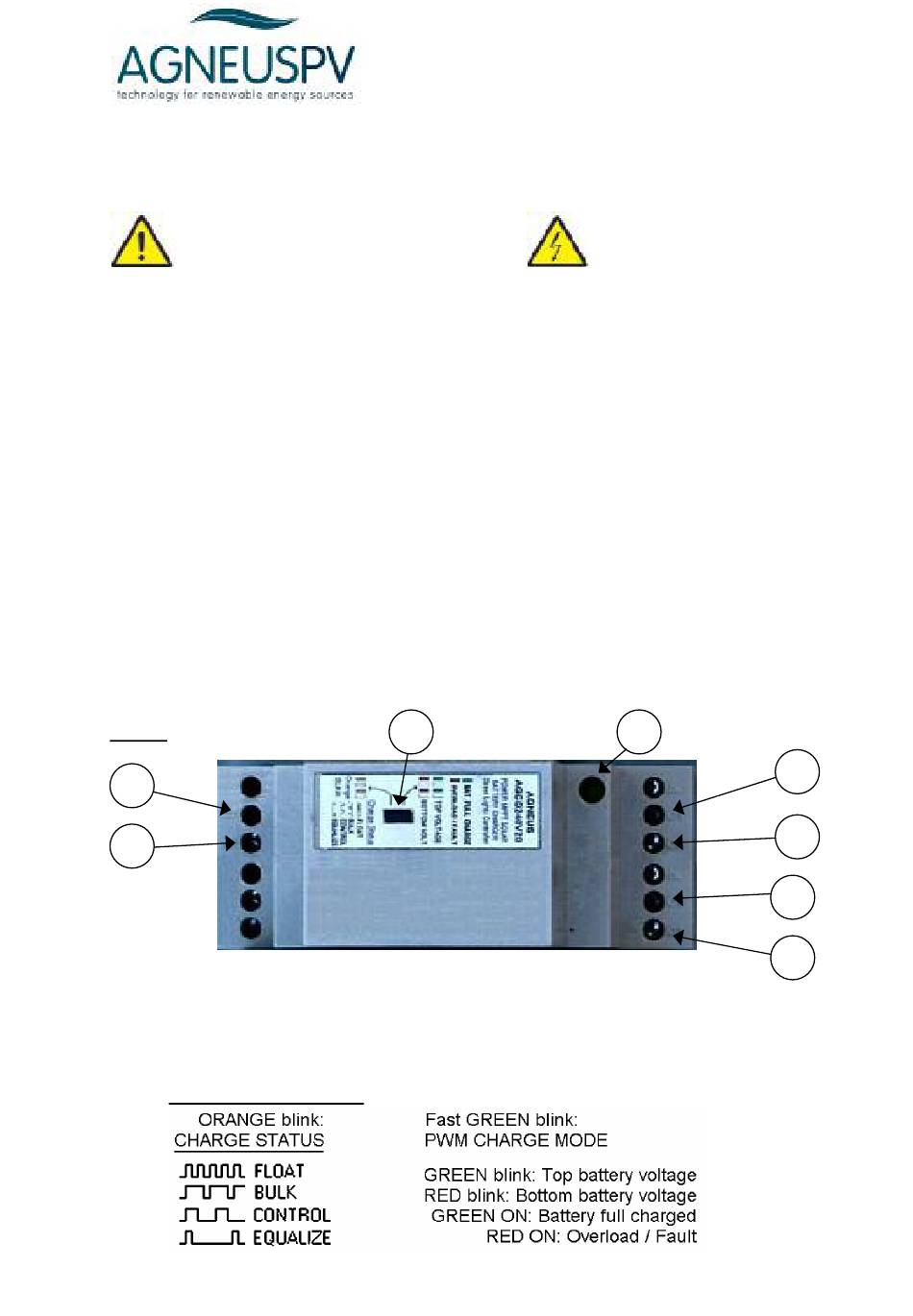

Figure 1
1
2
1. Positive of Photovoltaic module PV+
2. Negative of Photovoltaic module PV-
3. Positive of the output for user's loads OUT+
4. Negative of the output for user's loads OUT-
5. Positive of battery BAT+
6. Negative of battery BAT-
7. Switch on Loads LED indicator (Street Light Controller version)
8. Battery State LED indicator:
AGNEUS AGCD2035HP
Solar High Power MPPT Controller
Solar MPPT 20A Charge Controller for 12V battery
8
User's Manual
READ BEFORE TO INSTALL
7
6
5
4
3
