Summary of Contents for RPC PowerPole

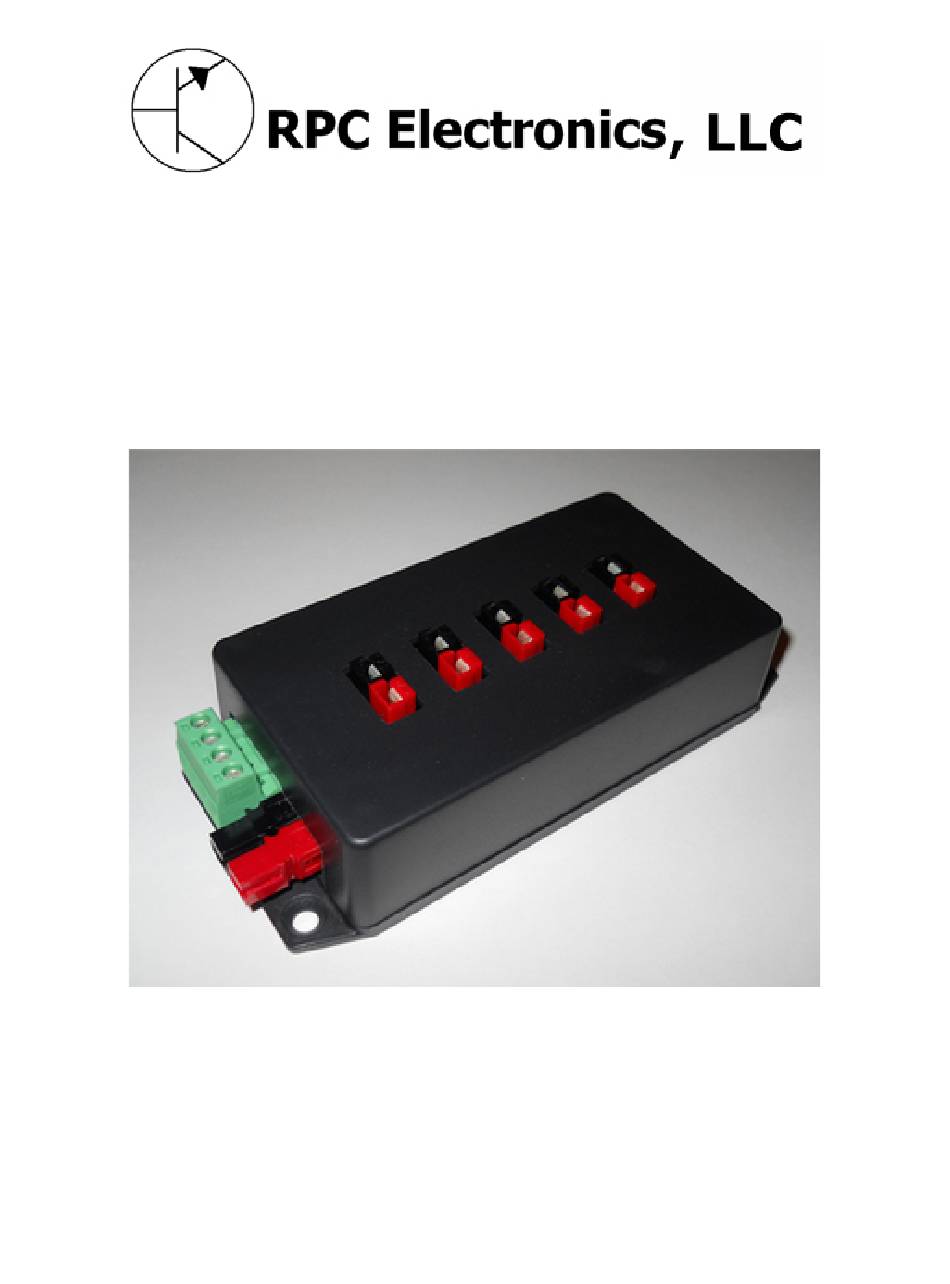

- Page 1 Controlled PowerPole Distribution Block User Manual Rev A.
- Page 2 Table of Contents Introduction Package Contents Device Overview Interface Connections Trigger Methods...
- Page 3 1. Introduction Thank you for purchasing the Controller PowerPole Distribution Block! This device is a unique play on the standard PowerPole distribution power block that is commonly used for connecting several devices to a single +12VDC power supply. What sets this device apart from the others is the ability to remotely control two of the power ports.
- Page 4 3. Device Overview The Controlled PowerPole Distribution Block has a single input connector on the end of the unit that accepts a standard PowerPole, connected to any +12VDC source. There are five output ports located on the topside of the unit. The ports are numbered from left to right, 1-5.
- Page 5 5. Trigger Methods 1. Double Ended - A complete circuit is made by shorting the “Trigger” and “GND” connections together. This can be done by using a simple switch. In this method the “GND” is a ground return connection, used to trigger the port. This method requires two wires per port to be ran from the unit to the controlling switch.
