KEMET USEQCSK0000000 Quick Start Manual

USEQCSK0000000 – QUICK START GUIDE – Please Refer to the Sensor Evaluation Tool Software User Manual
1. Check the Contents
A. Preassembled backplane PCB (green) with
STM32nucleo board (white)
B. USB stick (evaluation software)
C. Ribbon cable, optional use (up to 4)
D. USB communications cable
A
C
D
2. Install Software
Install Sensor Evaluation Tool from the folder
on the USB stick. Software is compatible with
Windows 7, 8, 10.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

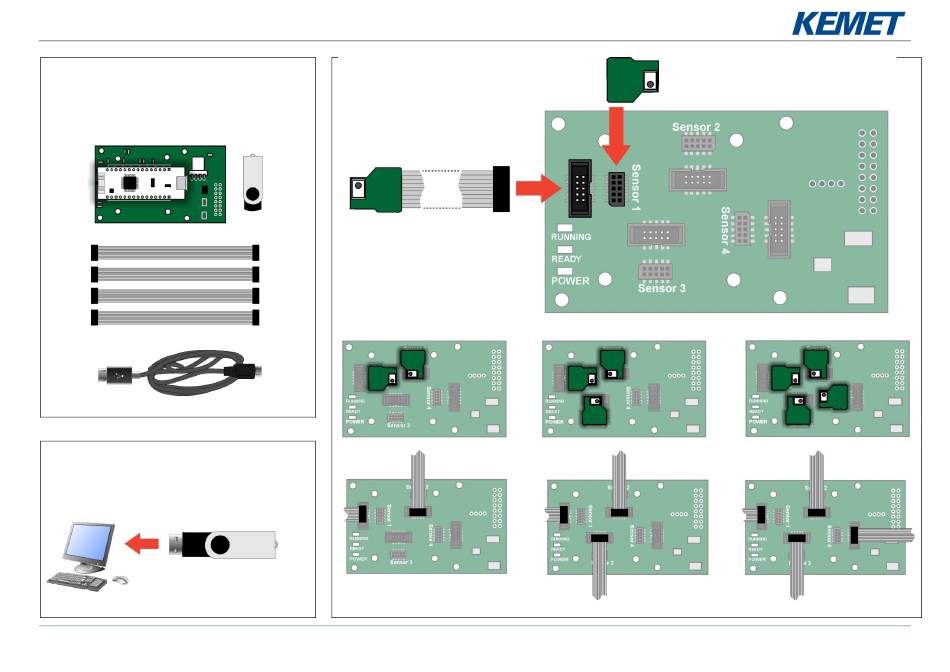

3. Populate the Backplane Board with up to 4 Sensors (Sensors not Supplied with the Backplane Board)
Connect sensor to the Sensor 1
position. You can connect the sensor
directly to the socket on the board or
use one of the supplied extension
ribbon cables.
B
Add further sensors in numerical
order. For example, if you want to use
two sensors ensure they are placed in
positions 1 and 2.
2 sensors
NOTE: One sensor must be connected
to the Sensor 1 position for the system
to work correctly.
3 sensors 4 sensors
1
