Summary of Contents for Metalcraft TFA11- 8

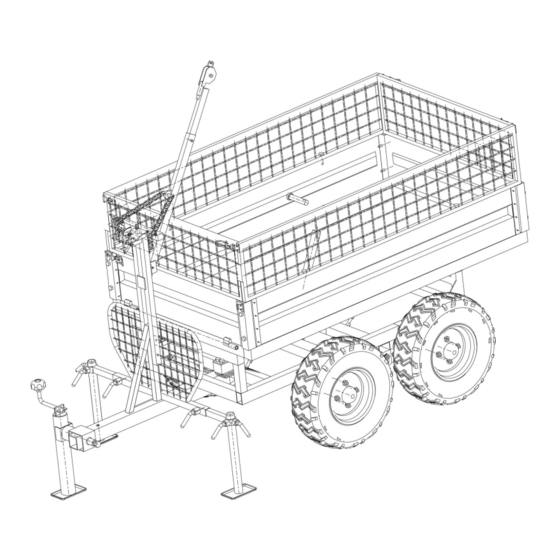

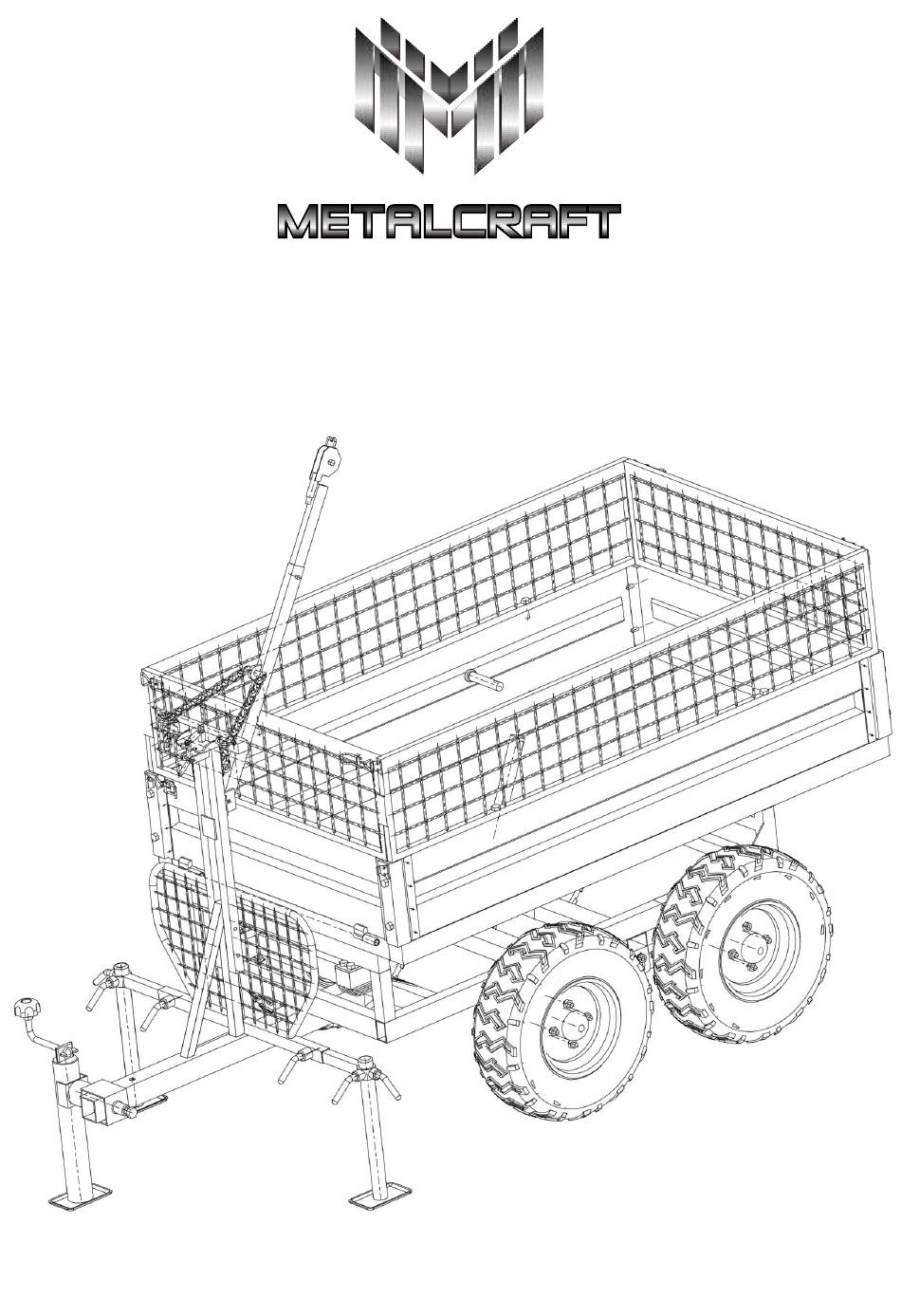

- Page 1 ATV trailer with Linear Actuator TFA11- 8...
- Page 2 Specific Warnings and Precautions for the linear actuator 1. Read through and understand the manual before using the linear actuator. 2. Connect the plug with an ATV or UTV trailer to make the linear actuator work. 3. Make sure the motor has fully stopped before changing directions. If you change directions when the motor is running, it may damage the motor.
- Page 3 2. Install the net frame &the jack, then install the stanchion, using 2-M16*50 bolt, M6 nut. Tighten the nut after adjusting to the appropriate position. Install the linear, using ⌀12*70bolt M12 nut, install the capacity seat plate with 4-⌀8* 20 bolt, M8 nut, Install the tool box with 2 -⌀6*20 bolt, M6 nut. SEE FIGURE 2.
- Page 4 3. Install the car floor, using 2- M16*80 bolt, 2-M16 nut, Install the linear, using ⌀12*70bolt M12 nut,Install the four columns & two side plates, using 8-M10*55 bolt 8-M10 nut, install the front and the rear doors, then use a quick fixture to fix the other side of the doors.
- Page 5 4. Install the crane, using 2-M14*140 bolt, M14nut, install the rotating parts with the hanger, using M20 nut, ⌀20 washer, ⌀20washer, ⌀16spring, adjust the chain length, using 2-D pin. Install the rotating parts, using 2- M10*80 bolt,2-M10 nut, 2-⌀10 washer, 2-⌀10 spring washer, 2-⌀16 bolt sleeve. SEE FIGURE 4.
- Page 6 WARNING READ, UNDERSTAND AND FOLLOW ALL ASSEMBLY, INSPECTION, MAINTENANCE & USE INSTRUCTIONS PROVIDED BEFORE EACH USE. FAILURE TO FOLLOW ALL WARNINGS AND INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. DOUBLE CHECK THE ASSEMBLY OF YOUR TRAILER TO BE SURE YOU ASSEMBLED IT CORRECTLY AND ALL NUTS &...
- Page 7 A11-8 ATV trailer Part List DESCRIPTION DESCRIPTION M12 wheel hub nut M10*55 bolt M10 nut M12 wheel hub nut M10*55 bolt M10 nut M12 wheel hub nut M10*55 bolt M10 nut M12 wheel hub nut M10*55 bolt M10 nut M12 wheel hub nut Ø8*30 bolt M8 nut M12 wheel hub nut Ø8*30 bolt M8 nut...
