Microchip Technology PD-USB-DP30 Quick Start Manual

PD-USB-DP30 Quick Start Guide

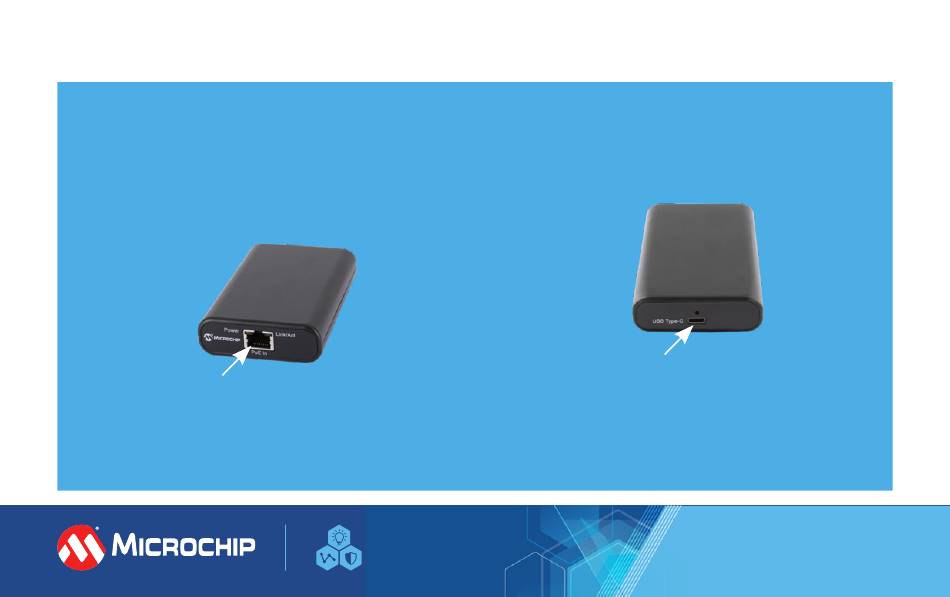

1. Connect an IEEE

PSE to the PD-USB-DP30's "PoE IN" RJ45

socket using a standard Cat 5/5e/6 Ethernet

cable. (Note: The maximum allowed length

of the Ethernet cable is 100 meters).

PoE IN

2. Check that the "Power" LED is yellow to

verify that the PD-USB-DP30 is powered on.

802.3af/at/bt-compliant

3. Connect one side of the supplied USB

Type-C

cable to the PD-USB-DP30's

USB-C socket. (Note: Any USB-C connec-

tion polarity is allowed.)

USB-C®

4. Connect the other side of the USB Type-C

cable to the USB-C powered device.

5. Verify that the USB-C powered device is

getting power from the PD-USB-DP30.

microchip.com

Table of Contents

Do you have a question about the PD-USB-DP30 and is the answer not in the manual?

Page 1 PD-USB-DP30 Quick Start Guide 1. Connect an IEEE 802.3af/at/bt-compliant 3. Connect one side of the supplied USB ® PSE to the PD-USB-DP30’s “PoE IN” RJ45 Type-C cable to the PD-USB-DP30’s ® socket using a standard Cat 5/5e/6 Ethernet USB-C socket. (Note: Any USB-C connec- cable.
Page 2 LED Indicators Appearance Status PD-USB-DP30 is: No Light powered off or powered on as a dongle Power PD-USB-DP30 is powered Yellow On No Light No data link Link/ Green On Data link on Green Data activity on Blinking...
Page 3 Specifications Environmental Information: • Operating Temperature: 0°C to 40°C (32°F to 104°F) Data • Operating Humidity: 90% Max (non-condensing) • PoE IN • Storage Temperature: −20°C to +70°C (−4°F to +158°F) • 10/100/1000 Mbps • Storage Humidity: 95% Max (non-condensing) •...
Page 4 ® • If the USB host doesnt recognize the PD-USB-DP30 as a USB device, please go to the LAN7800 product page to download and install the appropriate device driver. • Powering multiple PD-USB-DP30 from the same PoE multiport midspan may affect data/power performance to connected USB-C devices if they are sharing common peripheral equipment such as monitors, projectors, etc.
