SERVICE MANUAL
Let's Go Indoor rollator
from Trustcare

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trustcare Let's Go and is the answer not in the manual?

Questions and answers

Related Manuals for Rehabmart Trustcare Let's Go

Summary of Contents for Rehabmart Trustcare Let's Go

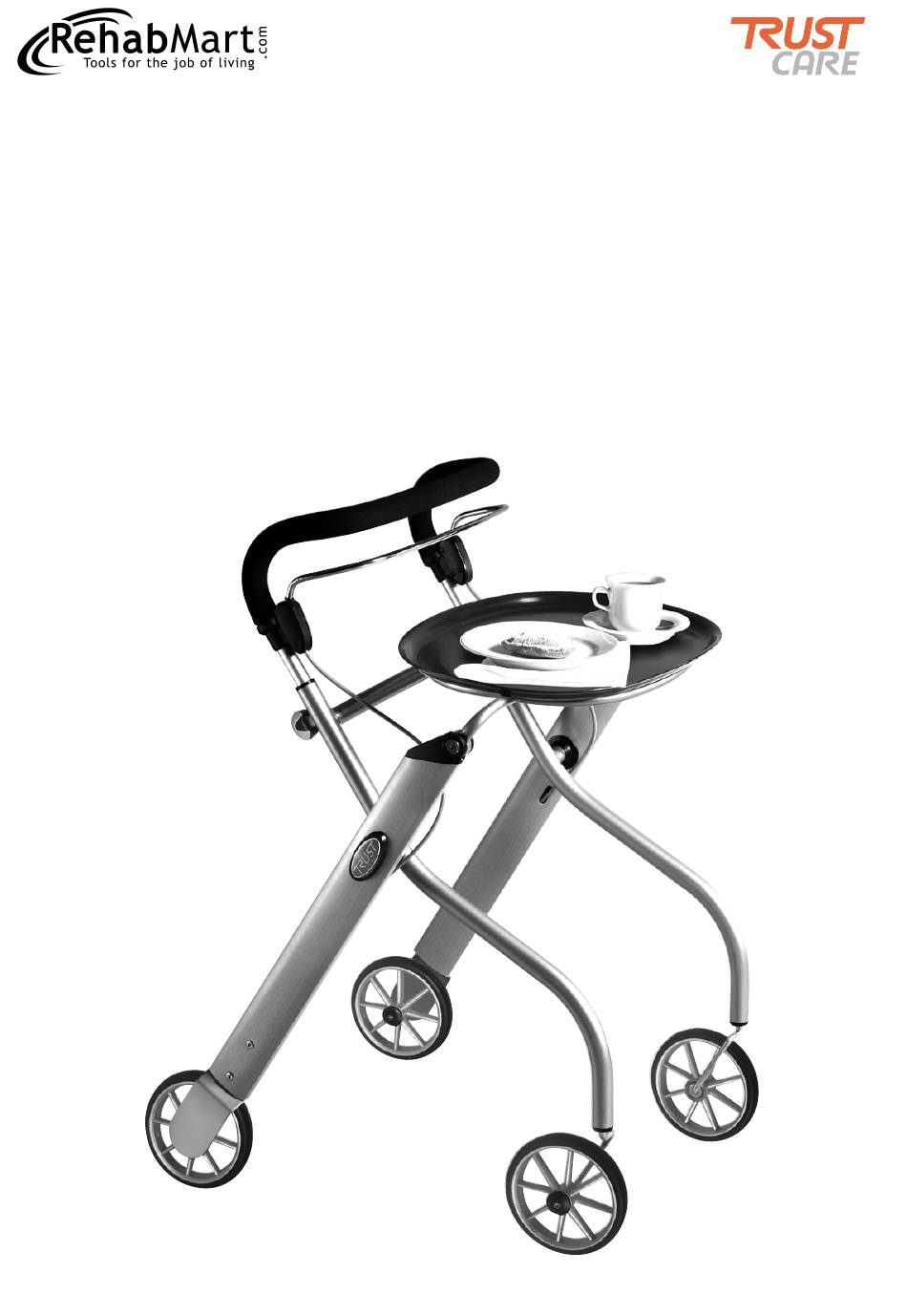

  • Page 1 SERVICE MANUAL Let’s Go Indoor rollator from Trustcare...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Exchange of brake wire Page 3 Exchange of locking claw for tray support ring Page 4 Exchange of tray ring joint Page 5 Exchange of brake housing Page 6 Exchange of central joint and joint cover Page 7 Exchange of handle tube, rubber and bushings Page 8 Exchange of wheel...

  • Page 3: Exchange Of Brake Wire

    Exchange of brake wire. Let’s Go Spare part. Art. No. 1097, 1098. Let’s Go Service Manual. Revision version No: 1 – Jan 2016 1. Adjust the handle to lowest 2. Unscrew the two screws A on the 3. Remove the wire at C and rear leg and pull out the bracket B position and the wire tension screws remove the sleeve at D.

  • Page 4: Exchange Of Locking Claw For Tray Support Ring

    Exchange of locking claw for tray support ring. Let’s Go Spare part. Art. No. 1101. Let’s Go Service Manual. Revision version No: 1 – Jan 2016 1. Drill out the rivet that holds the claw. 2. Remove the claw and the spring. 3.

  • Page 5: Exchange Of Tray Ring Joint

    Exchange of tray ring joint. Let’s Go Spare part. Art. No. 1103. Let’s Go Service Manual. Revision version No: 1 – Jan 2016 1. Unscrew the double screws, both sides. 2. The tray ring can now be easily removed. Joint block Metal spring 3.

  • Page 6: Exchange Of Brake Housing

    Exchange of brake housing. Let’s Go Spare part. Art. No. 1096. Let’s Go Service Manual. Revision version No: 1 – Jan 2016 1. To exchange the brake housing, first unscrew the 2. Remove the wires and brake bow from the brake brake housing covers on both sides of the handle tube.

  • Page 7: Exchange Of Central Joint And Joint Cover

    Exchange of central joint and joint cover. Let’s Go Spare part. Art. No. 1108 and 2221. Let’s Go Service Manual. Revision version No: 1 – Jan 2016 1. Remove the joint cover carefully 3. The old central joint can now be 2.

  • Page 8: Exchange Of Handle Tube, Rubber And Bushings

    Exchange of handle tube, rubber and bushings. Let’s Go Spare part. Art. No. 4000 and Art. No. 1094. Let’s Go Service Manual. Revision version No: 1 – Jan 2016 1. To exchange the Handle, first unscrew the brake 2. Take out the wires and brake bow from the brake housing, both sides.

  • Page 9: Exchange Of Wheel

    Exchange of wheel. Let’s Go Spare part. Front Art. No. 1131. Rear Art. No. 1141. Let’s Go Service Manual. Revision version No: 1 – Jan 2016 1. To replace the wheel, remove the wheel cap with an 2. Open the retaining ring (snap-ring) with a pliers. Allen key.

  • Page 10: Exchange Of Tray Support Ring

    Exchange of tray support ring. Let’s Go Spare part. Art. No. 1105, 1106, 1107. Let’s Go Service Manual. Revision version No: 1 – Jan 2016 1. Unscrew the double screws, both sides. 2. The tray ring can now be easily removed. 3.

  • Page 11: Mounting Of Rear Wheel Mounting Bracket

    Exchange of rear wheel mounting bracket. Let’s Go Spare part. Art. No. 2300. Let’s Go Service Manual. Revision version No: 1 – Jan 2016 1. To remove the wheel, remove the wheel cap with an 2. Open the retaining ring (snap-ring) with a pliers. Allen key.
