ATTREZZATURE FERROVIARIE
FCS
srl
Via E. Ferrari, 30 - 45038 Polesella (RO) - ITALY
+39 0425 947707
www.fcsrail.com

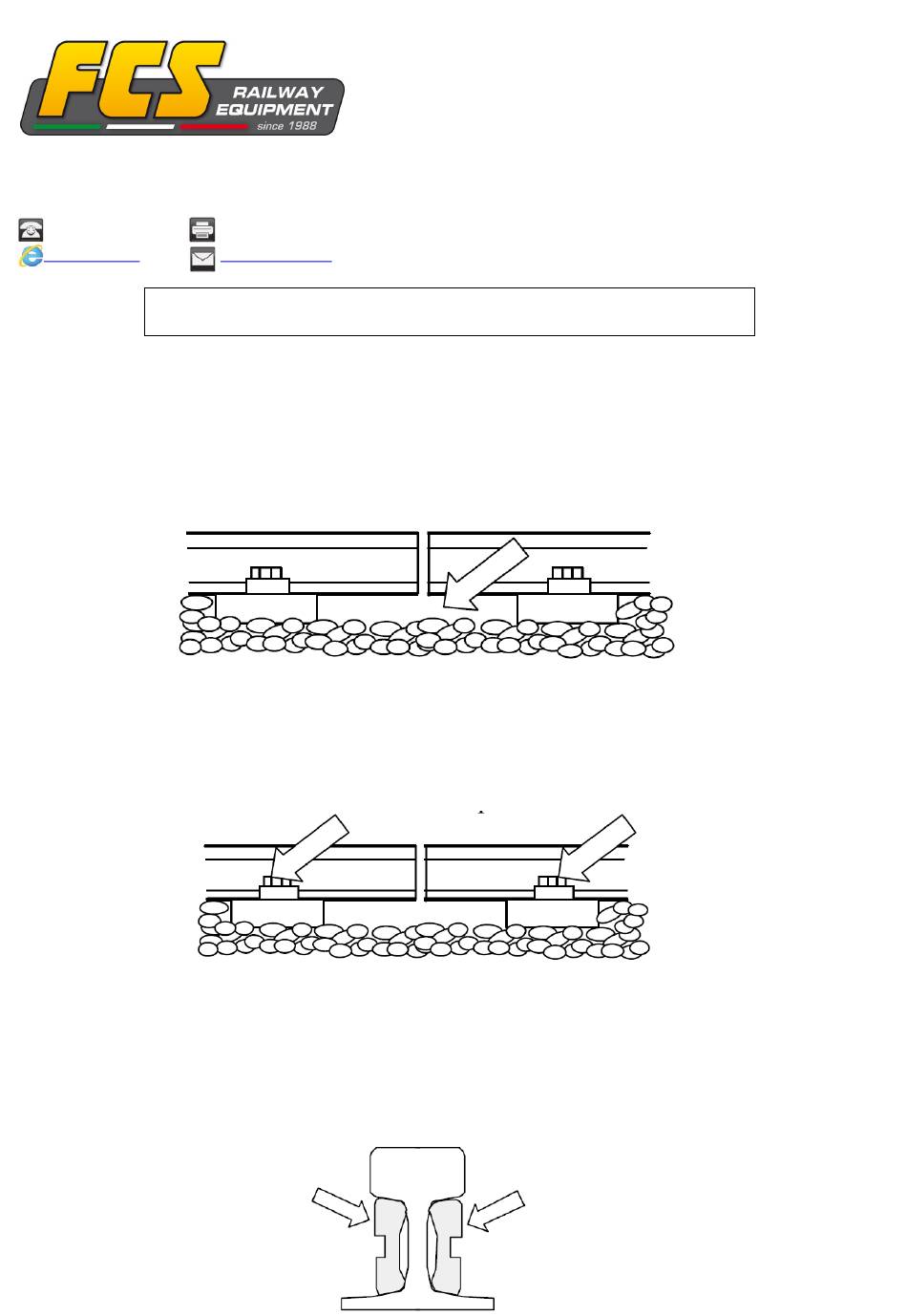

HOW TO USE THE MECHANICAL RAIL CLAMPS
1)
Remove the ballast under the rail, where is necessary to place the rail clamps
2)
Loosen the rail screws, near the joint, to allow the correct alignment between the
two parts of the rails
3)
Place the steel fishplate on the both side of the rail, and be sure that are correctly
placed
+39 0425 30132
fcsrail@fcsrail.com
USER MANUAL
" MM series "
Page | 1
Advertisement
Related Manuals for FCS MM Series
Summary of Contents for FCS MM Series
- Page 1 USER MANUAL HOW TO USE THE MECHANICAL RAIL CLAMPS “ MM series “ Remove the ballast under the rail, where is necessary to place the rail clamps Loosen the rail screws, near the joint, to allow the correct alignment between the...
- Page 2 ATTREZZATURE FERROVIARIE Via E. Ferrari, 30 - 45038 Polesella (RO) - ITALY +39 0425 947707 +39 0425 30132 www.fcsrail.com fcsrail@fcsrail.com Place the rail clamps (2 Pcs. of MM1 and 1 Pc. of MM2) for the temporary joint on the fishplate, taking care to place the ends of the rail clamps in the groove of the fishplate Hit the fishplate with an heavy hammer so that they fit snugly to the rail Tighten the rail clamps with a torque wrench with a tightening torque of 580 Nm...
- Page 3 ATTREZZATURE FERROVIARIE Via E. Ferrari, 30 - 45038 Polesella (RO) - ITALY +39 0425 947707 +39 0425 30132 www.fcsrail.com fcsrail@fcsrail.com After the first train has passed, hit the fishplate with an heavy hammer so that the fishplate adhere perfectly to the rail and tighten again the rail clamps with torque wrench with a tightening torque of 580 Nm Here below some 3D pictures of the rail clamp MM1: Page | 3...
- Page 4 ATTREZZATURE FERROVIARIE Via E. Ferrari, 30 - 45038 Polesella (RO) - ITALY +39 0425 947707 +39 0425 30132 www.fcsrail.com fcsrail@fcsrail.com Here below a picture of the rail clamp MM1: Page | 4...
