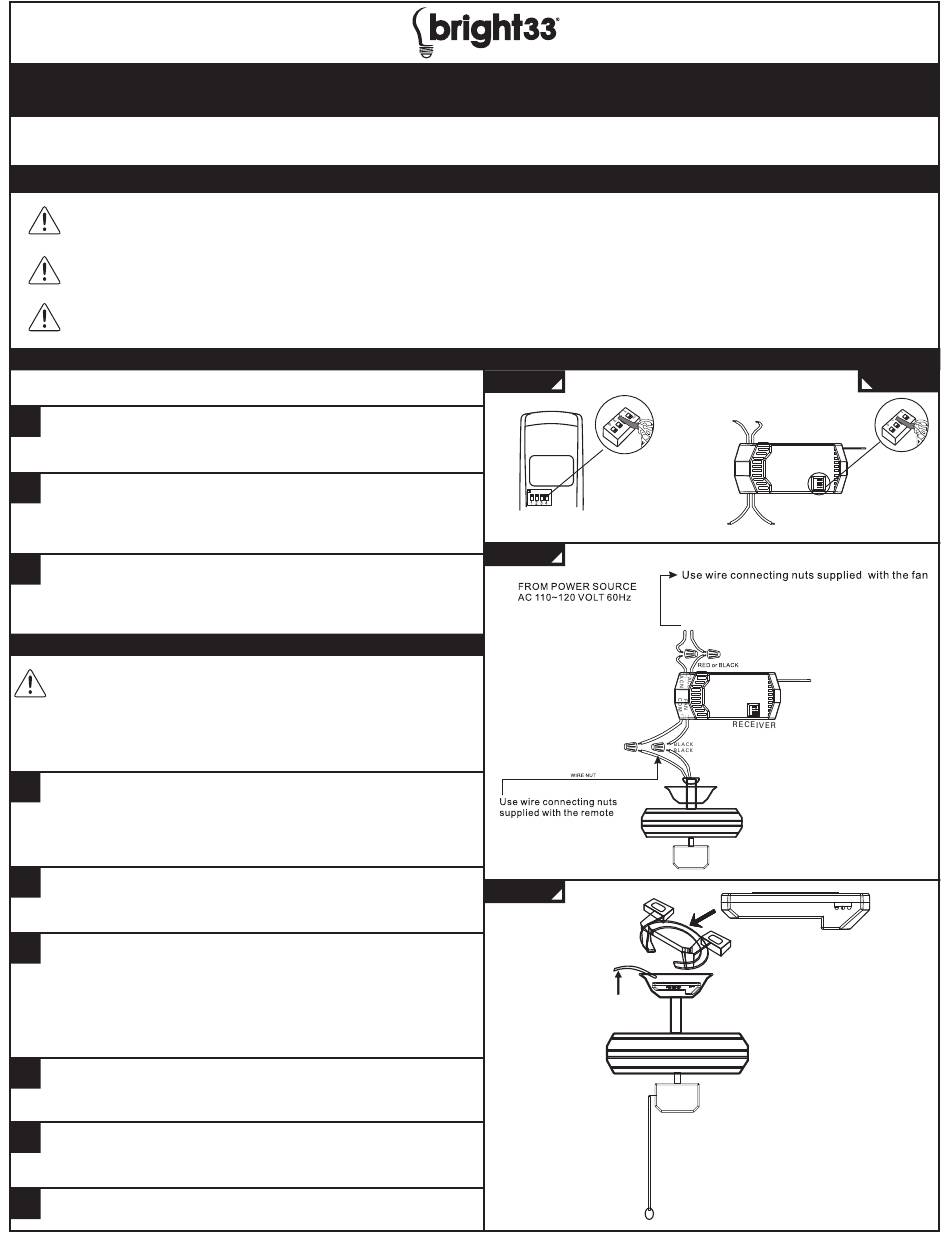

Bright33 B33CFR Instructions

WARNINGS:

Turn power off before installation, inspection, or removal.
Use all necessary precautions while performing this procedure.
Ceiling fan assembly must meet the following requirements:
Do not use with solid state fans.
Electrical rating: 120V, 60Hz, 3.5A, Max motor amps: 1.0
TO REDUCE THE RISK OF ELECTRICAL SHOCK, THIS FAN MUST BE
INSTALLED WITH A WALL CONTROL/SWITCH.

SETTING THE CODES

This unit has 16 different code combinations. To set the codes, perform the
following steps:
1
Set the codes on the transmitter: Remove the battery cover on the
TRANSMITTER. Press firmly on the arrow to slide the battery cover off.
2
Slide the CODE SWITCHES to your preference, either in the Up or Down
position. All settings come in the Up position and will need to be adjusted.
Use a small screwdriver or ball point pen to firmly slide the
CODE SWITCHES up or down (Figure 1).
3
Set the codes on the receiver: Slide the CODE SWITCHES on the RECEIVER
to the same position as set on the TRANSMITTER (Figure 2). Replace the
battery cover on the TRANSMITTER.

INSTALLING THE RECEIVER IN CEILING FAN

WARNING: HIGH VOLTAGE! SHUT OFF MAIN ELECTRICAL SUPPLY FROM
THE MAIN FUSE BOX/CIRCUIT BREAKER!
• Do not use with solid state fans
• Electrical wires must meet all local and national electrical code requirements
• Supply for fan must be 110/120 volt, 60Hz. Maximum fan motor amps: 1.0,
otherwise power can result in serious injury or death.
4
Install the receiver in fan: SHUT OFF MAIN ELECTRICAL SUPPLY FROM THE
MAIN FUSE BOX/CIRCUIT BREAKER!
Remove the ceiling fan CANOPY from the MOUNTING BRACKET.
Disconnect the existing
wiring between the ceiling fan and the supply wires in the junction box.
5
Remove the ceiling fan CANOPY from the MOUNTING BRACKET.
Disconnect the existing wiring between the ceiling fan and the supply
wires in the junction box.
6
Make the following wire connections (Fig.3), using the provided WIRE NUTS:
RED OR BLACK RECEIVER WIRE (AC IN L) TO RED OR BLACK SUPPLY WIRE
WHITE RECEIVER WIRE (AC IN N) TO WHITE SUPPLY WIRE
WHITE RECEIVER WIRE (TO MOTOR N) TO WHITE FAN WIRE
BLACK RECEIVER WIRE (TO MOTOR L) TO BLACK FAN WIRE
If necessary, wrap all wire connections in electrical tape to ensure
secure connection.
7
Carefully tuck all wiring back into the junction box.
8
Lay the BROWN ANTENNA WIRE on top of the RECEIVER,
and place the RECEIVER onto the MOUNTING BRACKET (Figure 4).
9
Attach the ceiling fan CANOPY back onto the MOUNTING BRACKET
(Figure 4).
BRIGHT33 LIGHTING CEILING FAN REMOTE
®
B33CFR | .3569898
Please read carefully before installation and operation
Save these instructions, as you may need them at a later date.
GENERAL: All electrical connections must be in accordance with local and
National Electrical Code (N.E.C.) standards. If you are unfamiliar with proper
electrical wiring connections, contact and obtain the services of a
qualified electrician. Use UL or IEC approved wire only for
input/output connections.
Remove fixture and mounting components from the box, and make sure that
no parts are missing by referencing the illustration in the installation instructions.
Figure 1
ON
CODE
SWITCHES
(FIG.1)
ON
TRANSMITTER
Figure 3
3.5AMPS.
WHITE
INPUT
OUTPUT
WHITE
WHITE
controller.
Figure 4
ANTENNA PLACED OUTSIDE
OF THE CANOPY CAN INCREASE
THE OPERATION DISTANCE
F A N M U S T B E K E P T A T T H E H I G H S P E E D
Figure 2
ACN ACL
RECEIVER
ANT
INPUT
OUTPUT
COM FAN
ANT
CANOPY
RECEIVER
CANOPY
ON
CODE
SWITCHES
(FIG.2)
