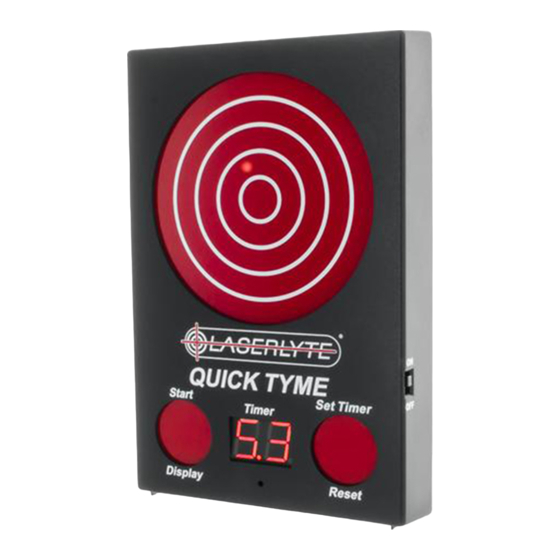

- Page 1 ® QUICK TYME LASER TRAINER TARGET TLB-QDM ® QUICK TYME ® Start Set Timer Timer Display Reset KEY FEATURES A: ON/OFF SWITCH E: WALL HANGER B: TARGET AREA F: BATTERY COMPARTMENT C: START/DISPLAY G: DO NOT UNSCREW THESE SCREWS D: RESET/SET TIME QUICK TYME ®...
- Page 2 3 YEAR LIMITED WARRANTY Crimson Trace Corporation warrants that this LASERLYTE® product will be free from defects in materials and workmanship for a period of three (3) years from the date of manufacture or, upon presentment of a dated sales receipt, from the date of original retail purchase. For complete warranty terms and conditions pleasewww.laserlyte.com/warranty, or contact us at the address /...
- Page 3 ™ ® QUICK TYME TARGET TLB-QDM USER GUIDE ® QUICK TYME LASER TRAINER TARGET TLB-QDM...
- Page 4 TLB-QDM TARGET USAGE ® • QUICK TYME Mode 5 Second Score Mode 10 Second Score Mode 15 Second Score Mode • Laser Tracer Fire Mode ® QUICK TYME MODE 1. Turn QUICK TYME ® TARGET to ON. 2. Fire laser in the SET TIME circle (lower right). Timer will display 9.9 seconds.
- Page 5 LASER TRACER FIRE MODE 1. Turn QUICK TYME® TARGET to ON. 2. Fire 2 shots at the Reset circle. Ensure Timer displays 0.0 Seconds. 3. Begin firing laser at target. 4. Fire laser at Display circle to see shots on target. 5.
- Page 6 BATTERY WARNINGS WARNING: KEEP BATTERIES AWAY FROM CHILDREN. THERE IS A CHEMICAL BURN HAZARD ASSOCIATED WITH BATTERIES. • When used correctly, batteries provide a safe and dependable source of portable power. However, misuse or abuse may result in leakage, fire, or explosion.
