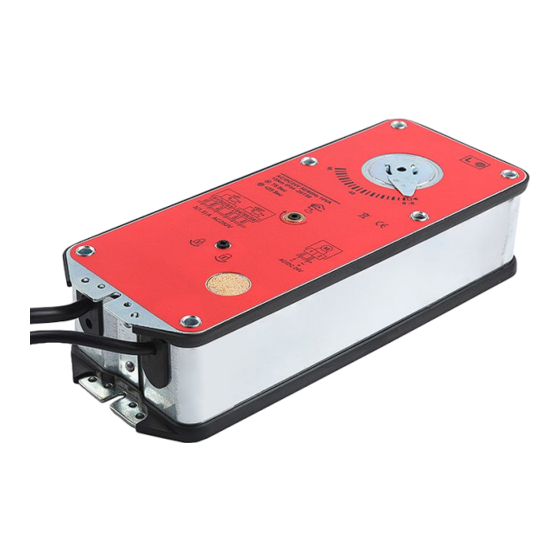

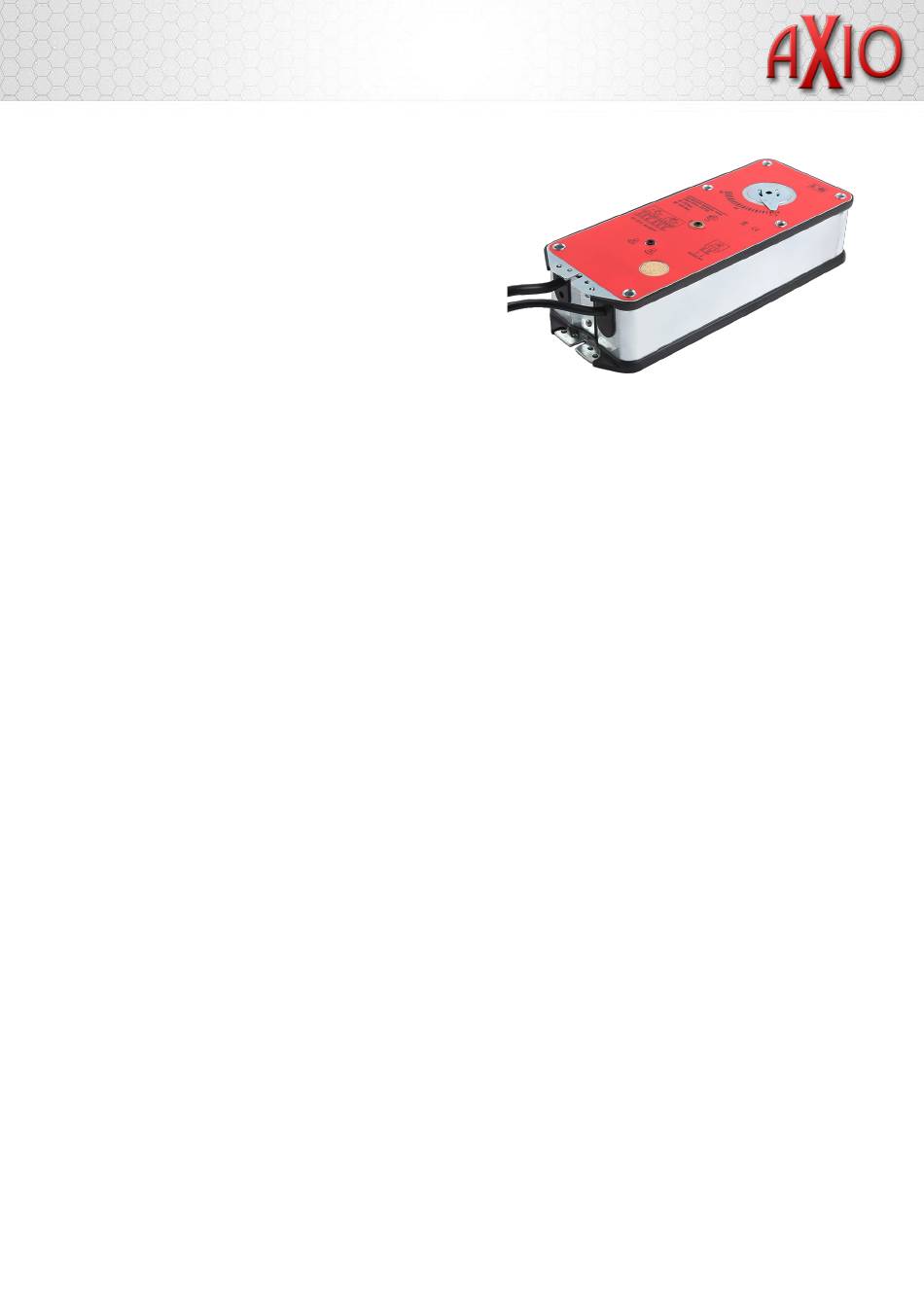

AX-RAF-15D
Fire Damper Actuator, Spring Return & Aux Sw, 15Nm
Product Overview
The AX-RAF-15 spring-return damper actuators are designed
for fire and smoke dampers in ventilation and air-
conditioning systems. These 24Vac/dc operated actuators
comes with two auxiliary SPDT switches and an optional
thermal switch which operates at 72°C.
Products Features
•
Square shaft : Max 12x12 mm
•
Control: On/Off
Product Specifications
Torque:
Damper size:
Running time
Power supply:
Power consumption:
Thermal switch (optional):
Angle of rotation:
Angle limit:
Direction:
Position indication:
Manual override available:
Auxiliary switch:
Auxiliary switch rating:
Sound power level, motor:
Sound power level, spring return:
Ingress protection:
Ambient temperature:
Ambient humidity:
Storage temperature:
Weight:
Compliance:
Country Of Origin:
Order Codes
Part number
AX-RAF-15DS
AX-RAF-15DST
Issue 1.0
Tel: +44 (0)1420 487788 Fax: +44(0)1420 477799 Email: sales@annicom.com Website: www.annicom.com
(03/05/2023)
15Nm
2
3m
Less than 150s . Spring reset time <25s
24Vac 50/60Hz or DC 24V
Runtime: 10W, Idle:3W
Cut-off at 72°C
95° max
5° to 80°
Selectable by mounting L/R
Machine Instruction
Yes
2x SPDT
1mA...3(1.5)A, AC220V
45dB (A)
62dB (A)
IP54
-20°C to 50°C
95 % RH, Non Condensing
-30 to 80°C
<2.6 Kg
CE
UK
Fire damper actuator, spring return, 15Nm, 2x SPDT Aux switches
Fire damper actuator, spring return, 15Nm, 2x SPDT Aux switches , Thermal switch
ANNICOM Ltd
Unit 21, Highview, High Street, Bordon, Hampshire, GU35 0AX
Copyright Annicom Ltd. All rights reserved.
•
Two auxiliary switches
•
Optional thermal switch
Description
Page
1
of
2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axio AX-RAF-15D
Summary of Contents for Axio AX-RAF-15D
- Page 1 AX-RAF-15D Fire Damper Actuator, Spring Return & Aux Sw, 15Nm Product Overview The AX-RAF-15 spring-return damper actuators are designed for fire and smoke dampers in ventilation and air- conditioning systems. These 24Vac/dc operated actuators comes with two auxiliary SPDT switches and an optional thermal switch which operates at 72°C.
- Page 2 AX-RAF-15D Fire Damper Actuator, Spring Return & Aux Sw, 15Nm Dimensions (mm) Wiring Diagram Page Copyright Annicom Ltd. All rights reserved.
- Page 3 AX-RAF-15D Fire Damper Actuator, Spring Return & Aux Sw, 15Nm Installation Manual Page Copyright Annicom Ltd. All rights reserved.
- Page 4 AX-RAF-15D Fire Damper Actuator, Spring Return & Aux Sw, 15Nm Operation When power is applied, the actuator moves the damper at the same time as tensioning the return spring. It returns to the safety position by spring energy when the supply voltage is interrupted.
