HAI 33A00-4 Manual

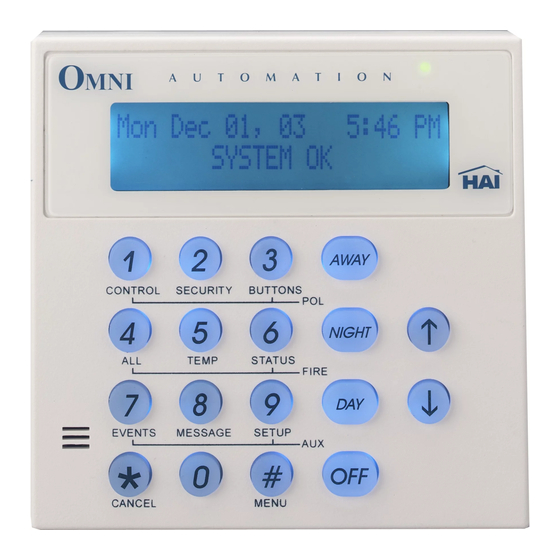

Omni console with built-in speaker and microphone
Hide thumbs
1
2

Advertisement

Table of Contents

DESCRIPTION

Follow these instructions to install the Console. See the Controller Installation Manual and Owner's Manual for
wiring, programming and other important information.

INSTALLATION

1.
Unpack the Console and remove the front from the back by gently prying the unit open with a screwdriver.
2.
Place the back housing against the wall at eye level so the horizontal edges are level. Make a mark on the
wall at four of the mounting slots in the back housing and trace the wire access opening.
3.
Drill a 3/16 diameter hole at each of the mounting hole marks and drive in a wall anchor. Drill or cut a
hole in the wall for wire access.
4.
Place the back housing over the wall anchors and screw it into place.
5.
Attach the wire to the supplied cable assembly and plug the cable into the connector on the Console
Printed Circuit Assembly. See the controller installation manual for wiring diagram.
6.
Snap the front housing onto the back housing.
MOUNTING
WIRE
SLOTS (X 8)
ACCESS

SPECIFICATIONS

Size:
4.5" W x 4.5" H x .75" D
Nominal Voltage:
10 – 13.7 VDC
Maximum Current:
100 mA
Home Automation, Inc.
Model 33A00-4 Omni Console with
Built-in Speaker and Microphone
New Orleans, LA • Phone 800-229-7256 • Fax 504-736-9290
