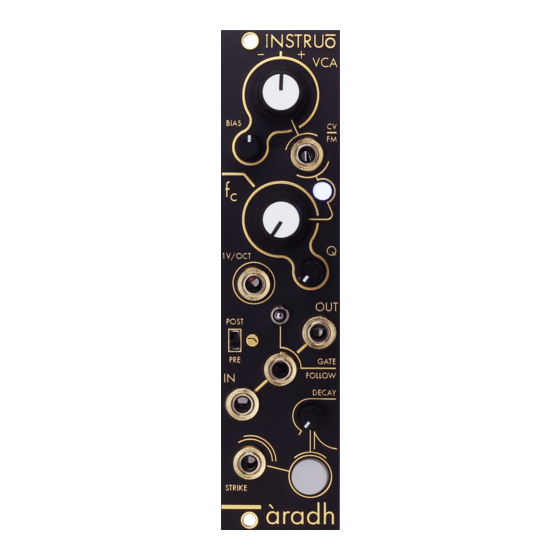

- Page 1 àradh Transistor Ladder Filter...
- Page 2 Pre/Post Switch The Pre/Post Switch configures the internal routing of the VCA in relation to the low pass filter. In its upward position, the VCA is routed after the low pass filter, similar to a traditional east coast synth voice. In its downward position, the VCA is routed before the low pass filter.
- Page 3 Strike Envelope Rising edge signals present at the Strike Input will trigger the decay/impulse envelope which modulates both the cutoff frequency of the low-pass filter and the amplitude 1V/OCT of the VCA. This can create a low-pass gate style effect with the transistor ladder filter.
- Page 4 Primary CV Assignment CV can be assigned to multiple parameters simultaneously. Press the CV Assign Button to set primary user-defined parameters. (Primary user-defined parameters can work simultaneously with the secondary user-defined parameters.) Unilluminated White Amber White/Amber No Parameter Cutoff VCA + Cutoff GATE FOLLOW Frequency...
- Page 5 Secondary CV Assignment To set secondary user-defined parameters, press and CV Assign Button (1) and tap the Strike Button hold the (2) 4 times. With the CV Assign Button still held down subsequent Strike Button taps will cycle through the four secondary parameters.
- Page 6 Envelope Follower & Comparator Gate Bias Threshold Disabled Envelope Follower Decay Knob Attack Time Release Time...
- Page 7 Press and hold CV Assign Button (1) Strike Button (2) access alternate parameters. Envelope Follower...
- Page 8 Compressor Patch The ratio of compression is defined by a combination of the threshold and make-up gain parameters. Bias Knob CV Attenuverter Set to desired position. Set to desired negative position. This acts as a make-up This acts as a threshold parameter gain parameter for compression.
