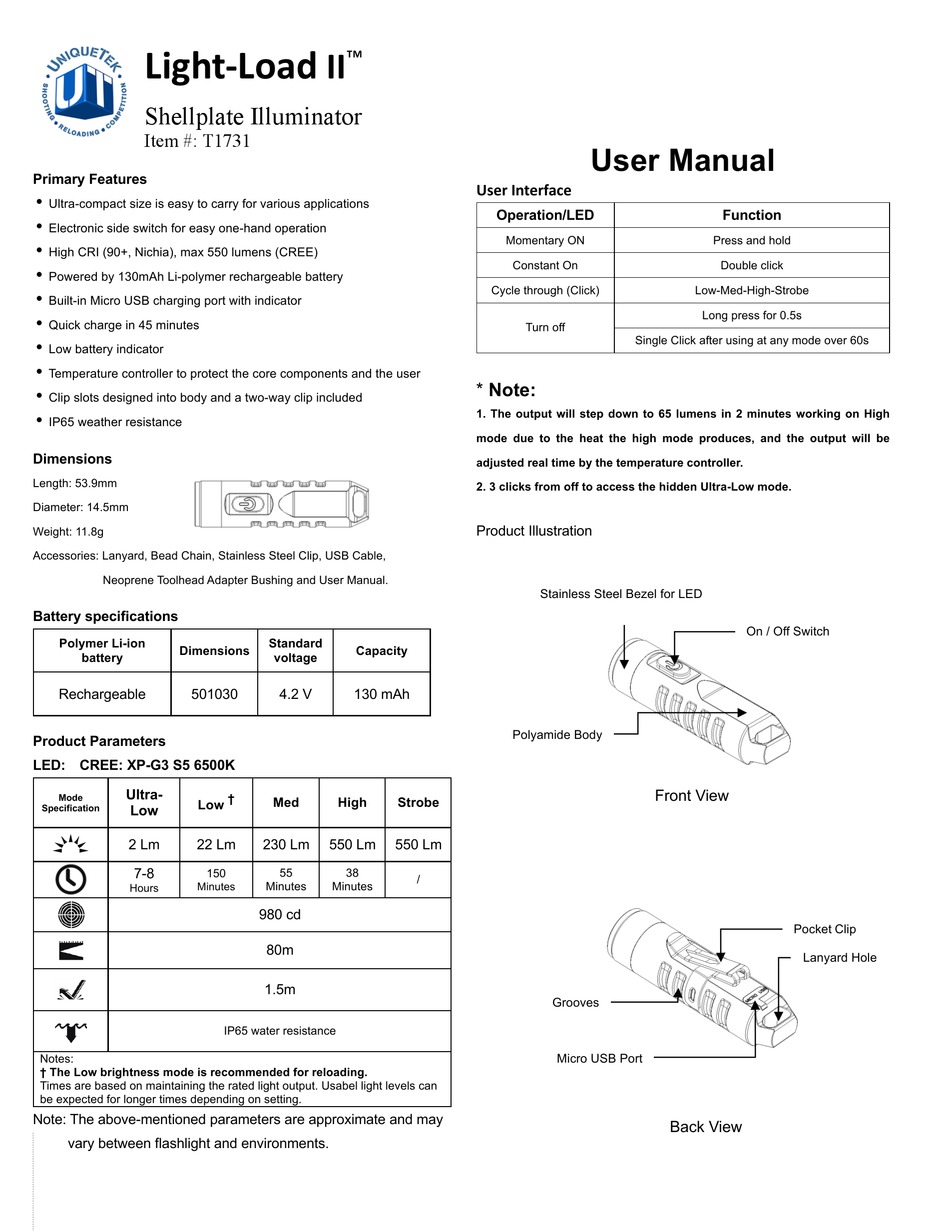

UniqueTek Light-Load II User Manual

Light-Load
Shellplate Illuminator
Item #: T1731
Primary Features
i Ultra-compact size is easy to carry for various applications
i Electronic side switch for easy one-hand operation
i High CRI (90+, Nichia), max 550 lumens (CREE)
i Powered by 130mAh Li-polymer rechargeable battery
i Built-in Micro USB charging port with indicator
i Quick charge in 45 minutes
i Low battery indicator
i Temperature controller to protect the core components and the user
i Clip slots designed into body and a two-way clip included
i IP65 weather resistance
Dimensions
Length: 53.9mm
Diameter: 14.5mm
Weight: 11.8g
Accessories: Lanyard, Bead Chain, Stainless Steel Clip, USB Cable,
Neoprene Toolhead Adapter Bushing and User Manual.
Battery specifications
Polymer Li-ion
Dimensions
battery
Rechargeable 501030
Product Parameters
LED: CREE: XP-G3 S5 6500K
Ultra-
Mode
Low
Low
Specification
2 Lm 22 Lm
7-8
150
Minutes
Hours
Notes:
† The Low brightness mode is recommended for reloading.
Times are based on maintaining the rated light output. Usabel light levels can
be expected for longer times depending on setting.
Note: The above-mentioned parameters are approximate and may
vary between flashlight and environments.
II ™
Standard
Capacity
voltage
4.2 V 130 mAh
†
Med High Strobe
230 Lm 550 Lm 550 Lm
55 38
Minutes Minutes
980 cd
80m
1.5m
IP65 water resistance
User Manual
User Interface
Operation/LED
Momentary ON
Constant On
Cycle through (Click)
Turn off
* Note:
1. The output will step down to 65 lumens in 2 minutes working on High
mode due to the heat the high mode produces, and the output will be
adjusted real time by the temperature controller.
2. 3 clicks from off to access the hidden Ultra-Low mode.
Product Illustration
Stainless Steel Bezel for LED
Polyamide Body
/
Grooves
Micro USB Port
vv
Function
Press and hold
Double click
Low-Med-High-Strobe
Long press for 0.5s
Single Click after using at any mode over 60s
On / Off Switch
Front
Front View
Pocket Clip
Lanyard Hole
Back
Back
Back View
V2
