ALM-010 - 'O/A/x2'

ALM-010

'O/A/x2'

- Operation Manual -

Table of Contents

Need help?

Do you have a question about the O/A/x2 and is the answer not in the manual?

Questions and answers

Summary of Contents for ALM O/A/x2

Page 1 ALM-010 - ‘O/A/x2’ ALM-010 ‘O/A/x2’ - Operation Manual -...
Page 2 Introduction .................... Technical Speciﬁcations ..................Core Operation ..................Panel Layout ......................General Usage ...................... Limited Warranty ..................Support ...................." 2...

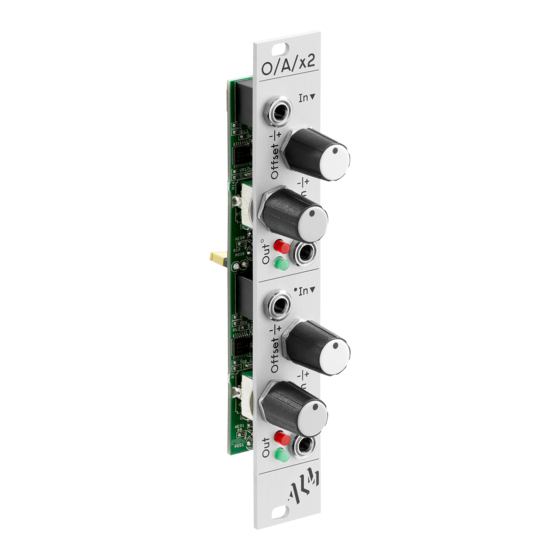

Page 3 ALM-010 - ‘O/A/x2’ Introduction ‘O/A/x2’ is a dual channel attenuverter with each channel also including a bipolar voltage offset and LED monitoring. The module is primarily intended for ﬁne grain ﬂexible ‘editing’ of control signals (i.e changing the phase, level and DC offset of an LFO signal) but also has uses with audio signals such as attenuation, inversion and mixing.
Page 4 ALM-010 - ‘O/A/x2’ Core Operation Panel Layout O/A/x2 Signal Input Offset adds or subtracts voltage (0-8v) to the output signal. Attenuverter controls attenuation and polaration of incoming signal Output signal combines both the offset and attenuverted input signal. LEDs indicate polarity and level.
Page 5 ALM-010 - ‘O/A/x2’ General Usage The O/A/x2 is split into two similar sections. For each section A signal patched into an input be both attenuated (Atten knob full CCW is X +1) or inverted (Atten knob full CCW is X -1) and have a DC offset added to it (Off knob full CV ~ +8v) or subtracted (Off knob full CCV ~ -8v).
Page 6 From the date of manufacture this device is guaranteed for a period of 2 years against any manufacturing or material defects. Any such defects will be repaired or replaced at the discretion of ALM. This does not apply to; • Physical damage arising for mistreating (i,e dropping, submerging etc).
Page 7 ALM-010 - ‘O/A/x2’ Support For the latest news, additional info, downloads and ﬁrmware updates please visit the ALM website at http://busycircuits.com and follow @busycircuits on twitter. Please send any questions or comments to info@busycircuits.com...
Page 8 ALM-010 - ‘O/A/x2’...
