Smart External
SC 14228SS - SmartScan External Programmer
INTRODUCTION TO THE SMART EXTERNAL SYSTEM
The Smart External system provides a simple, effective means
of controlling exterior luminaires independently or in groups
(zones). Significant energy savings and reduced operating costs
may be achieved by switching due to presence detection and
daylight sensing.
SMART EXTERNAL LIGHTING
Each Smart External luminaire is equipped with a Smart Micro-sensor
and Controller, so it responds to movement and light level.
1. OCCUPANCY SENSING - Each Smart External luminaire contains
a PIR. Detection area varies - specific details for each Luminaire are
available upon request.

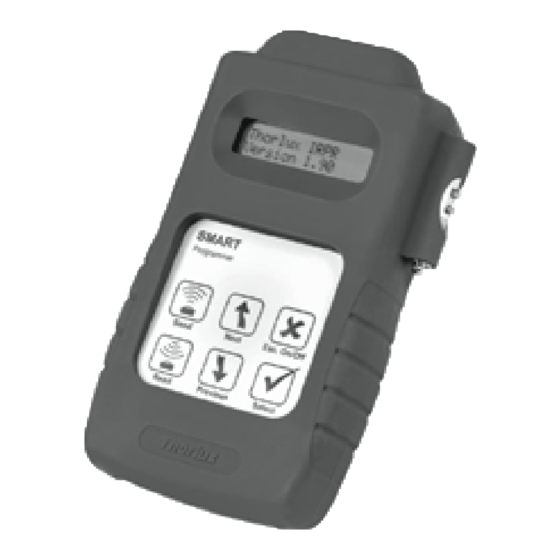

The Smart External Programmer has six 'touch pad' buttons.
DISPLAY
On the first LCD line the menu point is displayed. On the second line, the status line, the possible settings for this menu
point are shown. During a data transmission, the actual transmission status (as well as any error messages) is shown.
TECHNICAL DATA
Dimensions : 198 x 121 x 52mm
■
Power : 4-off AA/1.5V Battery (supplied)
■
PARAMETERS - EACH OF THE FOLLOWING PARAMETERS MAY BE FINE-TUNED TO SUIT LOCAL
Parameter Description
Light Level Sets the threshold at which the luminaire switches on.
Sets the period the luminaires will remain on after the last
Time Delay
detected movement before dimming down and switching off.
Sets the DALI level at which the luminaire will remain for the
Security Level
'If Vacant' period set below.
Determines what happens at the end of the Time Delay set above.
If Vacant If Vacant luminaire can be set to switch off, remain at the security
level for a preset period, or remain on continuously.
Sets the PIR for the luminaire. Normal setting is active.
PIR
May be set to inactive or Off only to avoid nuisance switching.
(Off only needs a Motionline signal to switch the light On).
PIR Sensitivity
May be adjusted to suit local conditions, and reduce nuisance switching.
Determines whether the luminaires are switched off during the day or operate
at all times. If set to Yes, the luminaire will switch off if the measured light
Bright-Out
level is above the Bright-Out Threshold for more than 10mins. If set to No,
the luminaires will never switch off as a result of increased ambient light.
Sets the level at which the luminaires will switch off. It is set as a percentage
Bright-Out
of the Light Level setting. (Default setting requires there to be greater than
Threshold
140 lux for more than 10 minutes before the light will switch off.)
Determines what happens after a power cut or when the electrical
Power Up
supply is re-connected. If lights power up On, they will switch off
if movement is not detected.
Determines whether the luminaire (on Power Up or after time-out) returns
Hold Override
to automatic mode (No), or goes to the last manually set level (Yes).
21LFT25430 Issue 6
GB - CLASS II LASER. DO NOT STARE INTO BEAM
FR - LASER DE CLASSE 2. NE PAS REGARDER LE FAISCEAU
DE - LASERKLASSE II. BITTE NICHT IN DEN STRAHL BLICKEN
SE - KLASS 2 LASER. TITTA INTE IN I LASERSTRÅLEN
ES - LASER CLASE II. NO MIRE FIJAMENTE AL RAYO
NL - KLASSE 2 LASER PRODUCT. STAAR NIET IN DE STRAAL
NO - KLASSE II LASER. STIRR IKKE INN I LYSKILDEN
PL - LASER KLASY II. NIE PATRZEC PROSTO W PROMIEN
2. LIGHT MEASUREMENT/REGULATION – the ambient light level is
measured so that the luminaire does not operate during the hours
of daylight.
3. INFRA-RED PROGRAMMING - The Smart External Programmer
enables permanent adjustments to light levels, time delays and
switching patterns etc. Each luminaire needs to be programmed
individually and may be set to suit local conditions.
4. SMARTSCAN WIRELESS CONTROL - With the addition of an optional
plug on radio module Smart sensors can communicate through a mesh
radio network for group linking and remote energy monitoring.

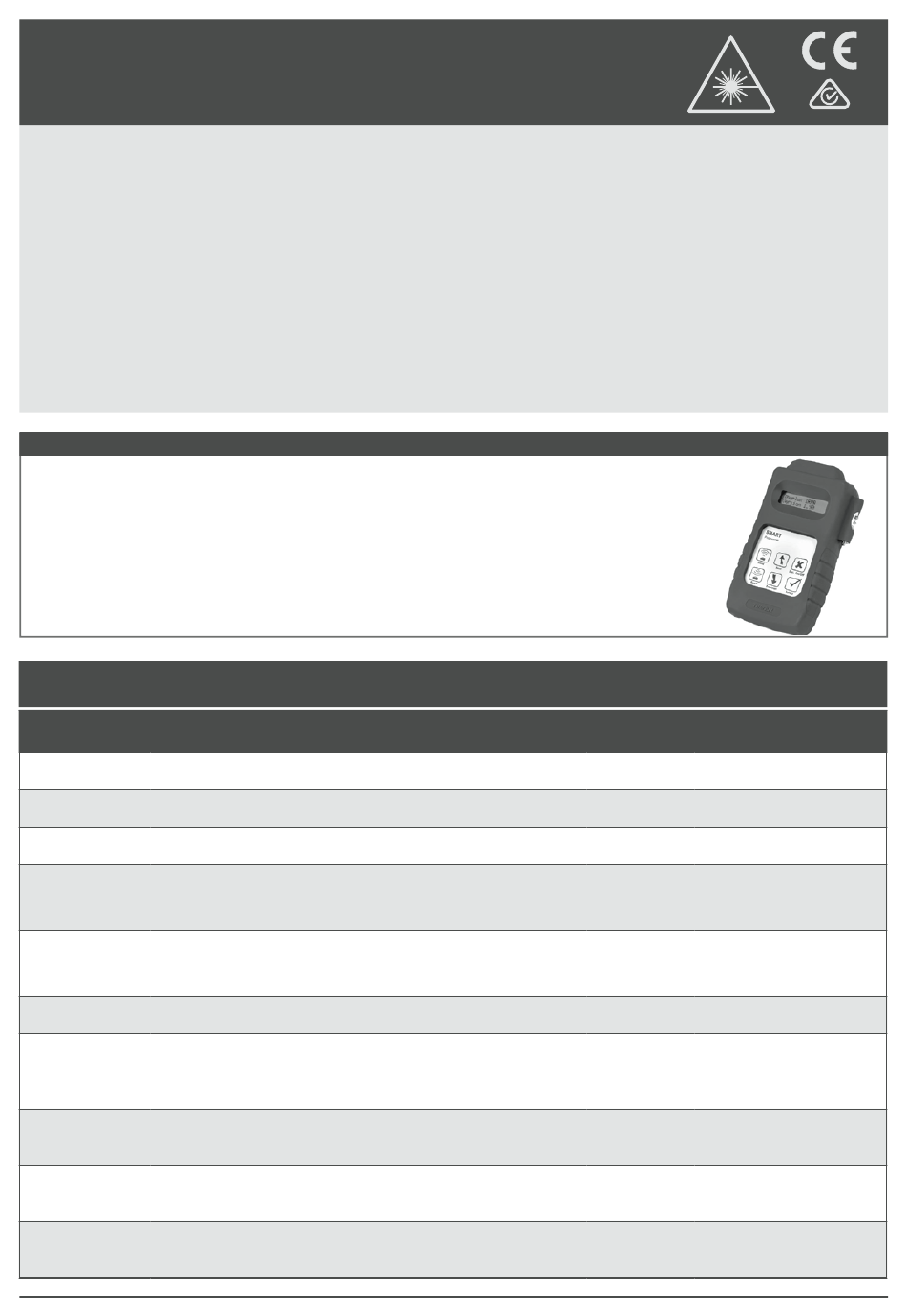

THE SMART PROGRAMMER
REQUIREMENTS AND CONDITIONS:
1
IP20
IP22
IP23
IP40
IP42
IP43
IP44
Factory
Range of
default
settings
settings
IP50
6 - 200 lux 70 lux
30s to 10hrs or
10 min
continuous
1 -100 % DALI 10 %
IP53
Off or at minimum
for between 30s 10 min
and 10hrs or cont.
IP54
Active / In-Active /
Active
Off Only
Min / 1.5 / Max 5
IP55
Yes / No Yes
IP60
100% - 400% in
200 %
increments of 50%
On / Off On
IP64
No / Yes No
IP65
Canolux LED
Factory Preset
200 lux
5 min
30 %
Continuous
Active
5
Yes
400 %
On
No
