AWSAM-CP
Installation
and Setup
The Best in Property Damage Detection

Advertisement

loading
Need help?

Need help?

Do you have a question about the AWSAM-CP and is the answer not in the manual?

Questions and answers

Summary of Contents for Vital AWSAM-CP

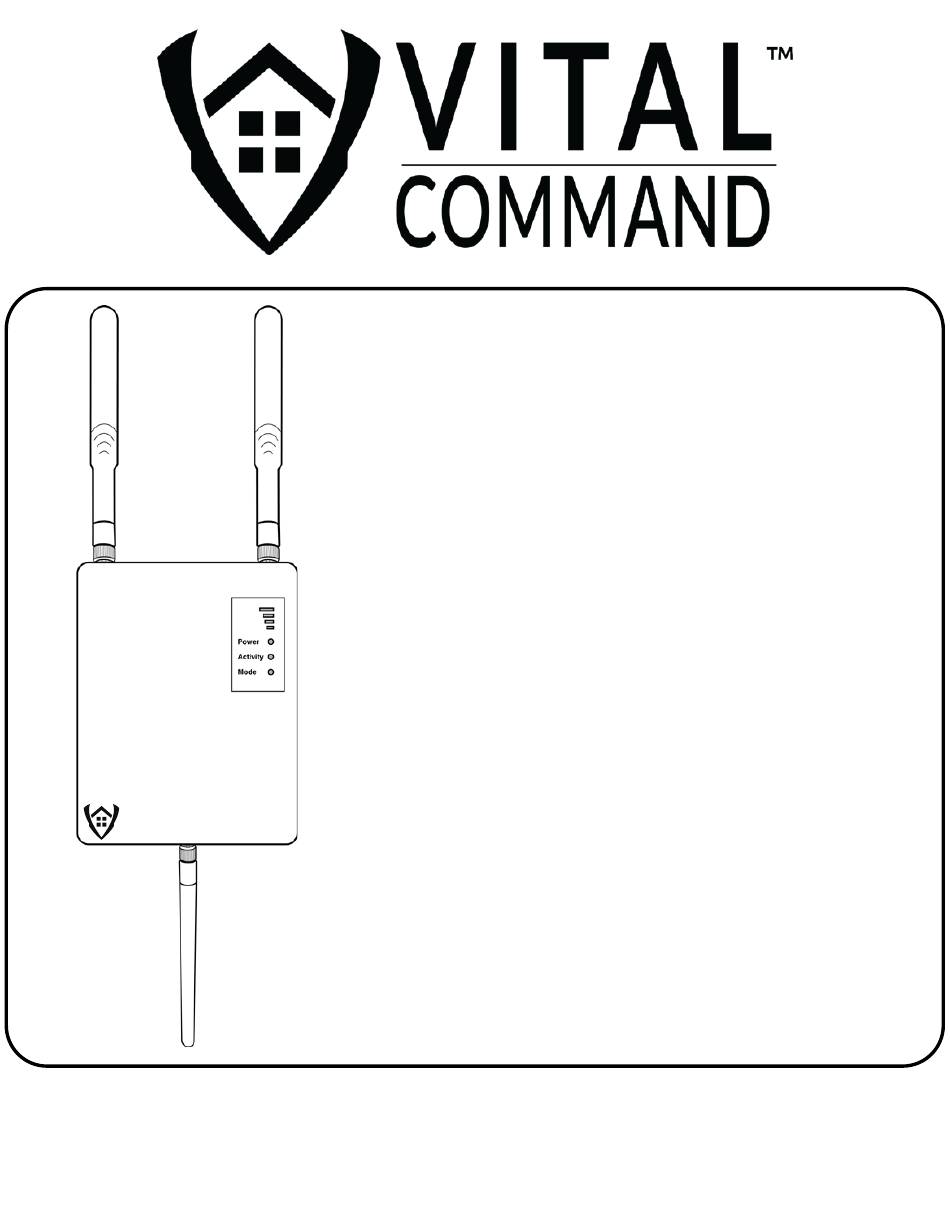

  • Page 1 AWSAM-CP Installation and Setup The Best in Property Damage Detection...
  • Page 2 By installing the Vital Command AWSAM System you agree and consent to all of Vital Command’s User Agreements and Terms and Conditions for use of the system and agree that Vital Command is not liable for any type of damage to your person or property.
  • Page 3 • Wirelessly control and manage the environmental, security and water sensors as well as the control valves that are paired with the AWSAM-CP via any mobile device or computer Online. • Setup, manage and notify system users via text, email or phone alerts of alarms and system operation.
  • Page 4 • In the event of a power loss to the system, the AWSAM-CP will operate for a approximately 24 hours on backup battery based on usage. The VC100 Valve Controller will also operate on AC or internal batteries if the batteries have a charge.
  • Page 5 AWSAM Control Panel Cellular Antennas Cell Signal Strength Bars Power Light • Green - AC Power Mode light and Battery Switch • Brief Blinking - Range Test Mode • Red - No AC or • Long Blinking- Battery Switch Off Add Devices Mode Sensor and Device...
  • Page 6 Back of Control Panel Cellular Antenna Connections IMEI Number The last 5 of this number can be used to identify your panel in the AWSAMCloud even if the name Mounting Bracket is changed Holes Power Jack Connection Wireless Device Any Position Power Antenna Connection Cable Channel Page 5...

  • Page 7: Battery Switch

    Right Side of Control Panel Add Devices and Battery Switch Range Test Button • Slide Up - Back up Operation: battery is ON • A simple button • Slide Down - Back up push turns on range battery is OFF test mode.
  • Page 8 Cellular Connection The AWSAM-CP will attempt to connect to the available cell network once powered on by battery or AC power or both. Once connected, the AWSAM-CP signal bars will light green based on the cell signal received. The smallest signal bar will light with a signal of -111 to -119 dBm or greater.
  • Page 9 Range Test Mode Press and release the button on the side of the panel to enter Range Test mode. Range Test Mode can also be switched ON or OFF in the AWSAMCloud specific Panel settings page. The Mode can be verified by the blinking “Mode Light” on the front of the Panel.
  • Page 10 Add Device Mode Press and hold the button on the side of the panel for 5 seconds. Note, the Mode light on the front of the panel will be blinking and mostly on. Press and release the sensor button inside the case. (See pic above) If the Panel is turned on and in range the TWS, HTWS and VC100 will all respond with multiple beeps.
  • Page 11 FCC Compliance Information for the U.S. Users: FCC part 15: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, includ- ing interference that may cause undesired operation.

  • Page 12: Warranty

    (Quote) or with registered product with VHS’s systems. Except as expressly set forth in the Quote or another signed agreement by VHS and or Vital Command, these T&Cs represent the sole understanding between VHS and Buyer with respect to Buyer’s purchase of Products.
  • Page 13 with its published specifications therefor for a period of 12 months after shipment to Buyer, under normal use and service. All Batteries and installation are excluded from the VHS Warranty. Buyer shall notify VHS of any non- conformance during the warranty period, and only after providing notice to VHS and obtaining authorization and an RMA number from VHS, return the affected Product to the VHS-designated facility as set forth in the RMA,...
  • Page 14 LIMITATION FROM THE FOLLOWING: THE PRODUCTS MAY FAIL TO OPERATE AS DESIGNED, WIRELESS CONNECTIONS BETWEEN THE PRODUCTS MAY FAIL OR NOT IMMEDIATELY TRIGGER, INTERNET AND TELECOMMUNICATIONS EQUIPMENT MAY FAIL, BATTERIES THAT OPERATE THE PRODUCTS MAY LOSE POWER, AND/OR THE PRODUCTS MAY NOT BE INSTALLED, PLACED, OR MAINTAINED PROPERLY BY A THIRD PARTY.
  • Page 15 OF ESSENTIAL PURPOSE OF ANY LIMITED REMEDIES. EACH PARTY ACKNOWLEDGES AND AGREES THAT THEY HAVE FULLY CONSIDERED THE FOREGOING ALLOCATION OF RISK AND FIND IT REASONABLE, THAT THIS ALLOCATION IS REFLECTED IN THE PRICE OF THE PRODUCTS, AND THAT THE FOREGOING LIMITATIONS ARE AN ESSENTIAL BASIS OF THE BARGAIN BETWEEN THE PARTIES.
