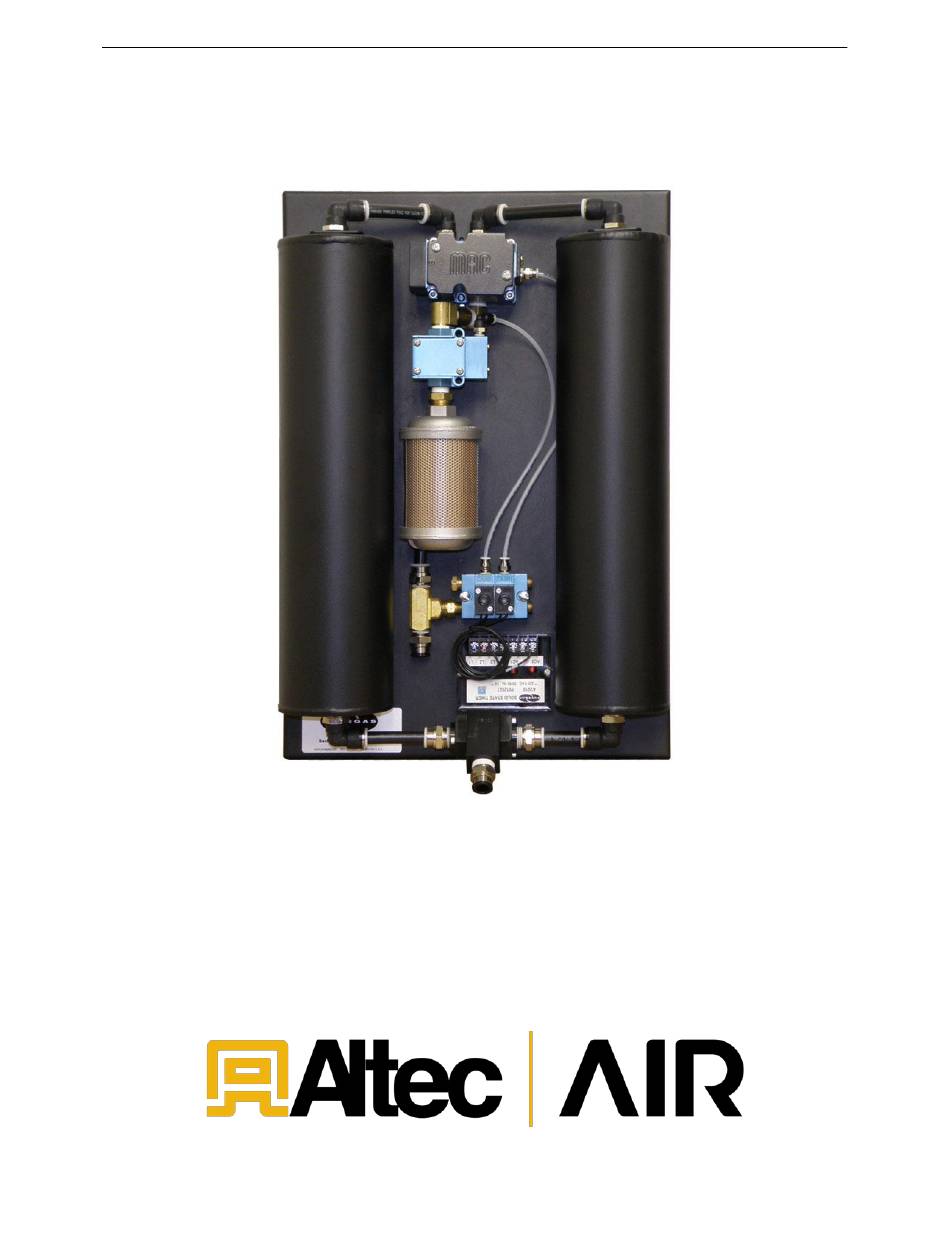

- Page 1 Quiet Dryer User’s Guide Altec AIR, LLC Quiet Dryer User’s Guide Includes: Filter Kit (51365-R) Installation & Maintenance 100510468 – REV C...
-
Page 2: Welcome & Congratulations
1. Welcome & Congratulations Congratulations on your purchase of a new ALTEC AIR Refrigerated Non-Cycling Series Air Dryer! We here at ALTEC AIR are very proud of our products and we are committed to providing you with the best value and service possible. -
Page 3: Table Of Contents
8.2 Back of Dryer ........... 20 3. Table of Contents ..........3 8.3 Accessories for your Quiet Dryer ..... 21 8.4 Ordering Parts from Altec AIR ....21 4. Safety & Warning Information ...... 4 9. Appendix ............22 5. Overview & Specifications ......5 9.1 Wiring Diagram ........ -
Page 4: Safety & Warning Information
Quiet Dryer User’s Guide Altec AIR, LLC 4. Safety & Warning Information This section contains general information about safety and warning points to consider and adhere to during installation and maintenance of your Quiet Dryer. PLEASE READ THIS SECTION BEFORE PERFORMING ANY OPERATION OR PROCEDURE ON YOUR QUIET DRYER. -
Page 5: Overview & Specifications
5. Overview & Specifications 5.1 Product Description The Altec AIR P013464 Quiet Dryer is a compact, regenerative air dryer designed to dry compressed air to a pressure dewpoint (PDP) of -70°C (-94°F) at the rated inlet conditions. The pressure-swing adsorption (PSA) process used is fully automatic and will remain consistent with minimal required periodic maintenance. -
Page 6: Installing Your Quiet Dryer
Incoming power to dryer must be 220 VAC, 1 Phase, 50/60 Hz CAUTION! Do NOT exceed the SCFM outlet flow capacity of the dryer. Be aware of what your dryer is rated for before you install your P013464 Quiet Dryer. 100510468 – REV C Page 6 of 25... -
Page 7: Before You Begin
Quiet Dryer User’s Guide Altec AIR, LLC 6.2 Before You Begin 6.2.1 Carefully inspect the entire unit including the shipping box for ANY DAMAGE CAUSED BY SHIPPING. If any shipping damage is detected, it is important to file a claim with the shipping company prior to continuing the installation procedures. -
Page 8: Included Contents
Quiet Dryer User’s Guide Altec AIR, LLC 6.3 Included Contents (1) P013464 Quiet Dryer (1) User’s Guide 51354-R Filter Kit Contents (if applicable): (1) 5 Micron Particulate Prefilter (1) 0.01 Micron Coalescing Prefilter (1) L-Bracket (1) 0.5 Micron Particulate Afterfilter... -
Page 9: Installation Steps
Quiet Dryer User’s Guide Altec AIR, LLC 6.5 Installation Steps IMPORTANT! To properly operate the Quiet Dryer, Altec AIR recommends that all essential elements, air filtration and regulator components be installed. 6.5.1 Remove the P013464 Quiet Dryer from packaging. 6.5.2 Inspect the Quiet Dyer for loose parts, wiring, tubing or damage. - Page 10 NOTE: If installing the 51365-R Filter Kit, proceed to the next steps. If NOT installing the 51365-R Filter Kit, proceed to step 6.5.14 . CAUTION: When installing a typical complete Quiet Dryer, or Point-of-Use System, Altec AIR recommends assembling ALL components before mounting the P013464 Quiet Dryer. 6.5.5 Assemble the Outlet Pressure Regulator.
- Page 11 Quiet Dryer User’s Guide Altec AIR, LLC 6.5.8 Attach the L-Bracket to the 5 Micron Particulate Prefilter. 6.5.9 Replace the bowl on the 5 Micron Particulate Prefilter. 6.5.10 Remove the Bracket from the other included Joiner Set. 6.5.11 Attach the 5 Micron Particulate Prefilter to the 0.01 Micron Coalescing...
- Page 12 Quiet Dryer User’s Guide Altec AIR, LLC 6.5.12 Attach the Inlet and Outlet Filter Assemblies to the back of the Quiet Dryer Frame. 6.5.13 Using necessary fittings, connect the Air Source and Process supply lines: 6.5.13..1 Connect Air Source to the input...
- Page 13 Quiet Dryer User’s Guide Altec AIR, LLC 6.5.14 Connect the Air Source and Process supply lines: 6.5.14..1 Connect air source supply line to the Input port. 6.5.14..2 Connect the process supply line to the Outlet port. NOTE: This instruction step only applies when NOT installing the 51365-R Filter Kit.
-
Page 14: Installation Checklist
Quiet Dryer User’s Guide Altec AIR, LLC 6.5.18 Using necessary hardware (not supplied), mount the Quiet Dryer in its final location. 6.5.19 Check for air leaks: NOTE: This is a general procedure that can be applied to any fitting or hose that has air pressure in it. -
Page 15: Maintaining Your Quiet Dryer
Quiet Dryer User’s Guide Altec AIR, LLC 7. Maintaining Your Quiet Dryer In order to ensure that your P013464 Quiet Dryer continues to operate efficiently and reliably, Altec AIR recommends performing the following maintenance procedures at the specified Six-Month intervals. -
Page 16: Maintenance Log Sheet
Quiet Dryer User’s Guide Altec AIR, LLC CAUTION! Observe precautions for handling Electrostatic Sensitive Devices. 7.2 Maintenance Log Sheet MODEL: LOCATION NAME: SERIAL NUMBER: ADDRESS: DATE INSTALLED: Maintenance Interval (Months) Procedure Section Visually Inspect Quiet Dryer for Loose Wiring, ... -
Page 17: Replacing The Purge Muffler
Quiet Dryer User’s Guide Altec AIR, LLC 7.4 Replacing the Purge Muffler 7.4.1 Remove the Purge Muffler by unscrewing it Counter- Clockwise. 7.4.2 Install the new Purge Muffler by screwing it Clockwise to the fitting. 7.5 Replacing the Filter Element NOTE: This is general procedure and will vary slightly visually depending on the Filter Element being replaced. - Page 18 Quiet Dryer User’s Guide Altec AIR, LLC 7.5.2 Remove the Filter Element by unscrewing it Counter- Clockwise. 7.5.3 Install the new Filter Element by screwing it Clockwise to the housing. 7.5.4 Replace the Filter Bowl. 100510468 – REV C Page 18 of 25...
-
Page 19: Replacement Parts & Accessories
Quiet Dryer User’s Guide Altec AIR, LLC 8. Replacement Parts & Accessories 8.1 Front of Dryer Recommended Description Part Number Quantity Spare Tower Switching Included in Tower Switching Valve Valve (1) Assembly - P013379 Purge Valve Purge Muffler P011884... -
Page 20: Back Of Dryer
Quiet Dryer User’s Guide Altec AIR, LLC 8.2 Back of Dryer Recommended Description Part Number Quantity Spare Included in Filter Kit w/ Regulator – 0.5 Micron Particulate Filter 51365-R Included in Filter Kit w/ Regulator – Joiner Set 51365-R Included in Filter Kit w/ Regulator –... -
Page 21: Accessories For Your Quiet Dryer
User’s Guide and will not be covered. Please refer to the information included with the specific replacement part for this instruction. Once you have identified your required parts and accessories, contact the Altec AIR Inside-Sales department to order: (800) 521-5351 Fax –... -
Page 22: Appendix
Quiet Dryer User’s Guide Altec AIR, LLC 9. Appendix 9.1 Wiring Diagram 100510468 – REV C Page 22 of 25... -
Page 23: Limited Warranty Agreement
Broomfield, Colorado. Freight charges are the responsibility of the user. This warranty shall not apply to any Altec AIR product which shall have been repaired or altered in any way by anyone other than Altec AIR or authorized personnel so as to affect, in our judgment, its proper functioning or reliability, neither will it apply to any product which has been subject to misuse, negligence, or accident. -
Page 24: Contacting Altec Air
Quiet Dryer User’s Guide Altec AIR, LLC 11. Contacting Altec AIR 11.1 General ALTEC AIR, LLC 226A Commerce Street Broomfield, Colorado 80020 (800) 521-5351 (303) 427-3700 Fax – (303) 657-2233 info@AltecAIR.com www.AltecAIR.com 11.2 Sales (800) 521-5351 (option 2) Fax – (303) 657-2205 sales@AltecAIR.com... -
Page 25: Maintenance Log Sheet
Quiet Dryer User’s Guide Altec AIR, LLC 12. Maintenance Log Sheet MODEL: LOCATION NAME: SERIAL NUMBER: ADDRESS: DATE INSTALLED: Maintenance Interval (Months) Procedure Section Visually Inspect Quiet Dryer for Loose Wiring, Tubing, or Hardware ...
