Harwin Z55-020 Quick Start Manual

Archer kontrol idc termination hand tool
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

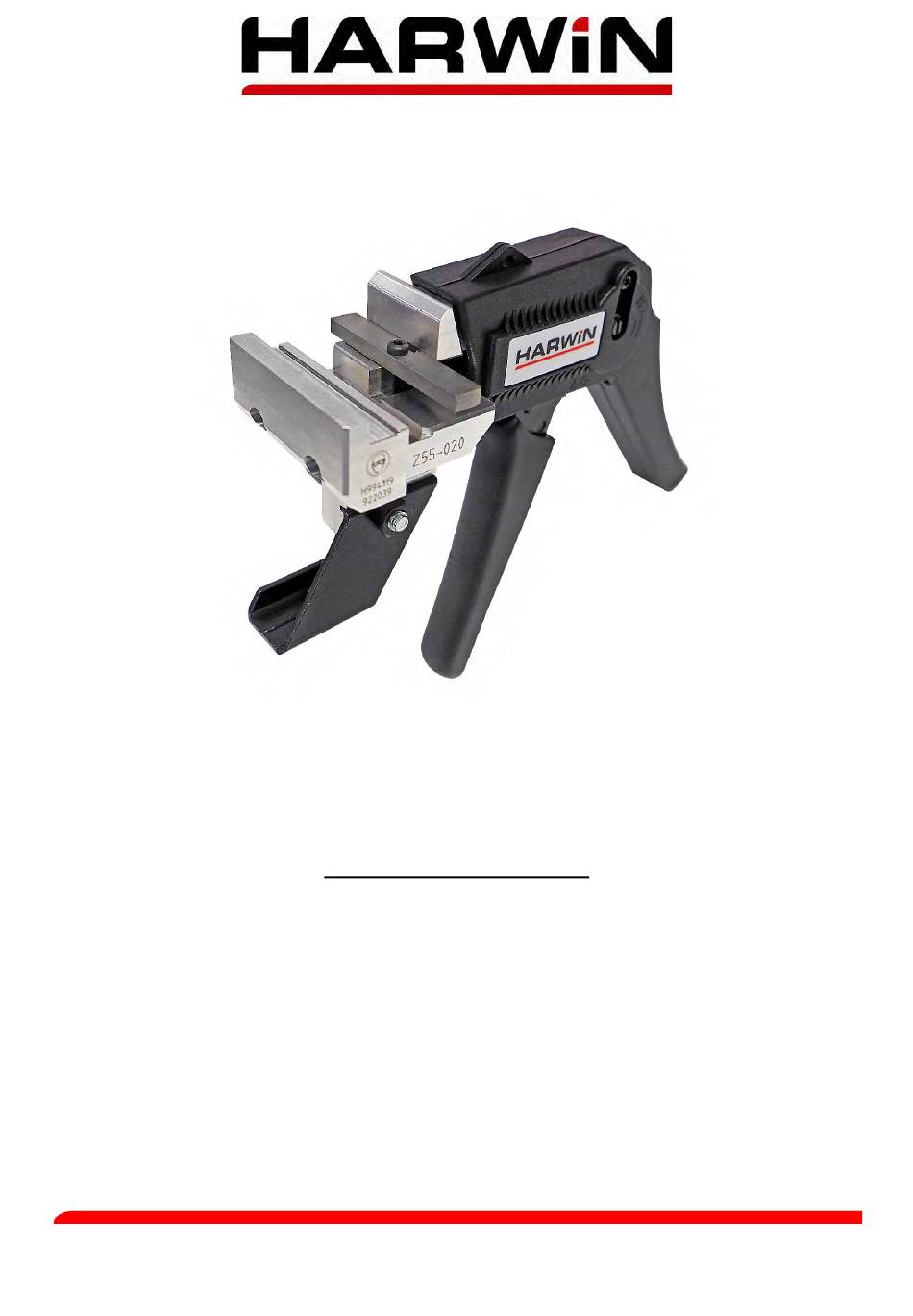

Z55-020 – Archer Kontrol IDC Termination Hand Tool
This IDC Termination Hand Tool is intended for use with the following Archer Kontrol 1.27mm
pitch cable connectors:
M55-820XX42 .............. Female IDC Cable Connector for 30 AWG ribbon cable
(XX = up to 80 contacts)

GENERAL INFORMATION

The Z55-020 IDC Termination Hand Tool ensures the complete and secure assembly of Archer
Kontrol IDC connectors. The tool uses a ratchet mechanism and press plate to assemble the
connector onto the ribbon cable. The tool is also supplied with a desk clamp, for secure fastening
during operation.
The connector is fully assembled once the tool is free to open fully to its original position, i.e.
when the ratchet releases. The ratchet will release once the handles have been compressed to
the fully closed position and should not be forced open before reaching fully closed.
Harwin North America
Harwin Europe
Harwin Asia
T: +1 603 893 5376
T: +44 (0) 23 9231 4545
T: +65 6 779 4909
E: mis@harwin.com W: www.harwin.com
E: mis@harwin.co.uk W: www.harwin.com
E: mis@harwinasia.com W: www.harwin.com
IS-51
Issue: 1
Date: 26-Apr-22
C/Order: 31534
Page 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z55-020 and is the answer not in the manual?

Questions and answers

Summary of Contents for Harwin Z55-020

  • Page 1 (XX = up to 80 contacts) GENERAL INFORMATION The Z55-020 IDC Termination Hand Tool ensures the complete and secure assembly of Archer Kontrol IDC connectors. The tool uses a ratchet mechanism and press plate to assemble the connector onto the ribbon cable. The tool is also supplied with a desk clamp, for secure fastening during operation.
  • Page 2 Harwin North America Harwin Europe Harwin Asia T: +1 603 893 5376 T: +44 (0) 23 9231 4545 T: +65 6 779 4909 E: mis@harwin.com W: www.harwin.com E: mis@harwin.co.uk W: www.harwin.com E: mis@harwinasia.com W: www.harwin.com IS-51 Issue: 1 Date: 26-Apr-22...
  • Page 3 3. Make certain that the hand tool is in the fully open position, and that the jaws are free from dirt and debris. 4. Select a suitable ribbon cable for the connector. Harwin recommends: Wire Type ......UL2678 Wire Pitch ......0.635mm Wire Thickness ....
  • Page 4 Harwin North America Harwin Europe Harwin Asia T: +1 603 893 5376 T: +44 (0) 23 9231 4545 T: +65 6 779 4909 E: mis@harwin.com W: www.harwin.com E: mis@harwin.co.uk W: www.harwin.com E: mis@harwinasia.com W: www.harwin.com IS-51 Issue: 1 Date: 26-Apr-22...
  • Page 5 Harwin North America Harwin Europe Harwin Asia T: +1 603 893 5376 T: +44 (0) 23 9231 4545 T: +65 6 779 4909 E: mis@harwin.com W: www.harwin.com E: mis@harwin.co.uk W: www.harwin.com E: mis@harwinasia.com W: www.harwin.com IS-51 Issue: 1 Date: 26-Apr-22...
