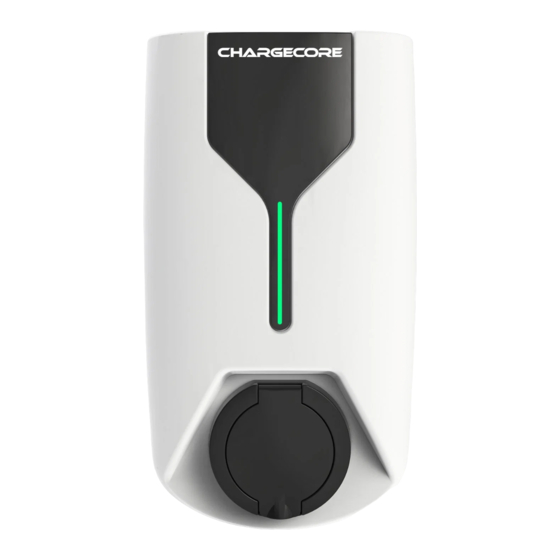

Summary of Contents for Powercore CHARGECORE AC Wallbox Series
- Page 1 Nanjing PowerCore Tech Co., Ltd AC Charger manual AC006 -- AC Wallbox series AC006 -- AC Wallbox series www.cnchargepoint.com AC Charger Manual...
-
Page 2: Table Of Contents
Nanjing PowerCore Tech Co., Ltd CONTENT 1.SAFETY PRECAUTIONS ..............................1 1.1S ................................1 AFETY RECAUTIONS 1.2I ..............................1 DENTIFICATION ESCRIPTION 1.3E ................................. 1 LECTRICAL AFETY 1.4 O ....................................3 THERS 2.PRODUCT DESCRIPTION ............................... 4 2.1S ..............................4 ERIAL NUMBER DESCRIPTION ................................ -
Page 3: Safety Precautions
Nanjing PowerCore Tech Co., Ltd 1.SAFETY PRECAUTIONS 1.1SAFETY PRECAUTIONS Before starting the operation, please read the operation instructions and precautions carefully to reduce the occurrence of accidents. The "CAUTION, WARNING, DANGER" items in the product and product manual do not represent all the safety precautions to be followed, but only serve as a supplement to various operational safety precautions. - Page 4 AC Wallbox series When the power supply system is running, some parts have high voltage, and direct contact or indirect contact with these parts through non-insulated objects will bring fatal danger. Construction operations on high-voltage lines may cause fire or electric shock accidents.
-
Page 5: Others
AC Wallbox series It is strictly forbidden to short-circuit the power distribution of the power system or short-circuit the non-grounded pole to the ground during operation, which will cause equipment burnout and personal safety hazards. The polarity of cables and interface terminals must be strictly checked during live work. ... -
Page 6: Product Description
AC Wallbox series 2.PRODUCT DESCRIPTION 2.1SERIAL NUMBER DESCRIPTION AC00 ROU012003000 PILE ID NUMBER ROU01 2003 0002 - CUSTOMER ROMARIA 01, MADE IN MARCH 2020, PILE 0002, HERE FOUR DIGITS IN DECIMAL. MANUFACTURER BOM VERSION： CHARGING POWER: 7: AC CHARGER RATED POWER 7KW 9: AC CHARGER RATED POWER 9KW 11: AC CHARGER RATED POWER 11KW 22: AC CHARGER RATED POWER 22KW... - Page 7 AC Wallbox series cable 7.3KG（N.W） ≥5m（CABLE Model） Cable length Socket Type1 or Type2（SINGLE OUTPUT） Cabinet size 195.9x149.6x350（mm） Dimensions Appearance drawing Film stickers Indicator light Socket Emergency stop Backplane fixing screws Cable entry hole...
-
Page 8: Technical Parameter
AC Wallbox series Network cable hole Cable wire hole (optional (optional network cable charging gun wire) interface) 2.3 TECHNICAL PARAMETER Parameter AC006(type2) AC006（type1）... -
Page 9: Features
AC Wallbox series ±10% 230VAC（1P+N+PE） 230VAC（L1+L2+PE） ±10% Input voltage 400VAC（3P+N+PE） ±10% Input 50Hz/60Hz 50Hz/60Hz frequency Rated power 7kW（1p)/11kW(3p)/22kW（3p） 7kW/9kW/11kW（L1-L2） Measurement ≤±1% ≤±1% accuracy Output Same as input voltage Same as input voltage voltage SINGLE PHASE:32A Output 32A/40A/48A THREE PHASE:16A/32A current User Emergency stop button, led indicator, card Emergency stop button, led indicator, card... - Page 10 AC Wallbox series AC006 AC charger has modern appearance design and user-friendly operation experience. It is mainly used for household use. It is an intelligent IoT charger. It can be used for Bluetooth distribution network through mobile APP, and it is easy to start and stop the charging pile anytime, anywhere.
-
Page 11: System Structure
AC Wallbox series 3.SYSTEM STRUCTURE 3.1 ELECTRIC Transformer-Switch-Charger-Car(Type2) TN-C-S 10kV/400V TN-S 电网10kV Transformer-Switch-Charger-Car(Type1) 3.2COMMUNICATION Communication Architecture Diagram... - Page 12 AC Wallbox series...
-
Page 13: Install
AC Wallbox series 4.INSTALL 4.1INSTRUCTION 4.1.1SAFETY INSTRUCTIONS The working voltage and current inside the charging system are high. In order to ensure personal safety, the following regulations should be observed at all times: ⚫ Only personnel who have received training on the charging system and have sufficient knowledge of the charging system can install it. - Page 14 AC Wallbox series ELECTRIC IMPACT DRILL DRILLING 1PCS IMPACT DRILL (Ø 6) DRILLING 1PCS TAPE MEASURE (5M) MEASUREMENT 1PCS LEVEL MEASUREMENT 1PCS 1/PHILLIPS SCREWDRIVER UNPACKING / ENCLOSURE / WIRING 1PCS EACH CABLE STRIPPER STRIP OFF THE INSULATING JACKET 1PCS DIAGONAL PLIERS CUT THE CABLE 1PCS INSULATION TAPE...
-
Page 15: Installation Notes
AC Wallbox series 4.3INSTALLATION NOTES 4.3.1CABINET INSTALLATION INSTRUCTIONS 1） FIXED IN PLACE a）Fix the base to the wall • Carefully and slowly descend, placing the charging station precisely in place • Take care to ensure that the cables have been exposed along the gland to the inside of the cabinet •... - Page 16 AC Wallbox series 4.3.2ELECTRICAL REQUIREMENTS Cable type: TN-C-S/TN-S, confirm whether it needs to be shielded according to local laws or regulations ⚫ If there is a shielding layer, both ends of the shielding network must be connected to the PE safety ground wire.
-
Page 17: Operation Debugging
AC Wallbox series ➢ Downlink：4 Mbps ⚫ Required connection reliability: 99.9% FOR SPECIAL CONFIGURATION, PLEASE CONTACT OUR COMPANY 4.3.4CONNECT THE POWER CABLE Note: Before making electrical connections, place all switches, fuses, etc. in the OFF position When installed, the charging pile needs to be connected with an additional TYPEB grade leakage protector ⚫... - Page 18 AC Wallbox series Ensure that the charging pile is installed stably, the wires are wired correctly and reliably, and the charging pile can be powered on. After the charging pile is powered on, the indicator light should be flashing blue or always on. Please refer to the appendix below for the description of the status of the indicator light: Description of the status of the indicator light.
-
Page 19: After-Sales Service
AC Wallbox series 5.1.4FORCED PULL-OUT RECOVERY It is forbidden to forcibly unplug the charging connector during the charging process! ⚫ If the normal stop operation fails to stop, it is recommended to press the emergency stop button. ⚫ Then unlock it manually, prohibiting the forced drawing of the connector. 6.AFTER-SALES SERVICE 6.1AFTER-SALES SERVICE 1.Two-year warranty on all parts. -
Page 20: Maintenance
The charger has the function of connecting with the device cloud platform to monitor the status of the charger in real time. When connected to the PowerCore platform, the platform can provide complete remote diagnosis, remote service, and remote upgrade services, and can timely discover and locate actual problems in the actual operation process, and provide corresponding solutions accordingly to help the operation center realize remote services. -
Page 21: Appendix
AC Wallbox series 7.APPENDIX 7.1 INDICATOR STATUS DESCRIPTION: LIGHT STATUS INSTRUCTION RED LIGHT CHARGER FAILURE GREEN LIGHT CHARGING BLUE LIGHT CHARGER STANDBY BLUE/GREEN/RED LIGHT IS ALWAYS ON ONLINE BLINKING BLUE/GREEN/RED LIGHT OFFLINE 7.2 GENERAL TROUBLESHOOTING INSTRUCTIONS FAULT POSSIBLE REASON SUGGESTED TREATMENT PHENOMENON CHECK WHETHER THE INPUT POWER SUPPLY OF THE CHARGING PILE IS NORMAL: THE VOLTAGE OF EACH PHASE OF THE AC THREE-PHASE INPUT IS... - Page 22 AC Wallbox series PLEASE REFER TO THE APPENDIX FOR THE DESCRIPTION OF THE STATUS OF THE INDICATOR LIGHTS OF THE CHARGING PILE TO CHECK THE MEANING OF THE STATUS THE CHARGING PILE IS THE INDICATOR LIGHTS, AND TRY TO POWER OFF AND RESTART. IF THE OF THE PRESSED FOR EMERGENCY RED LIGHT IS FAULTY OR FLASHING, PLEASE MAKE SURE THAT THE...
-
Page 23: Toxic And Hazardous Substances Or Elements Identification Table (Rohs)
Nanjing PowerCore Tech Co., Ltd 7.3 TOXIC AND HAZARDOUS SUBSTANCES OR ELEMENTS IDENTIFICATION TABLE (ROHS) TOXIC AND HAZARDOUS SUBSTANCES OR ELEMENTS PART NAME PBDE CABINET/SUBRACK/ × ○ ○ ○ ○ ○ COPPER BAR POWER MODULE × ○ ○ ○ ○... - Page 24 AC Wallbox series This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
