TenaControls CARL-BB Instructions

Standard car lighting system for 1/25 scale model cars

Ten^Controls LLC

Milford, M@ 01757

US@

www.ten^controls.com

Ten^Controls Brings Models to Life

Instructions for Model#: CARL-BB, the Standard Car Lighting

System for 1/25 Scale Model Cars

This unit is completely assembled and tested. The only thing you need to do is connect

up the led's and the Momentary Magnetic Switch to the connection points as shown

below in the Master Wiring Diagram. Then just plug in the provided 12 volt battery into

the holder and throw the micro slide switch on. Hot glue drops on the four sides of the

board works well for locking into place.

Items you will need: Soldering Iron, solder, cutter, wire stripper and additional wiring.

**Note: When using the shrink tubing, you need to only slide the shrink tubing over one

leg of the led to keep it from shorting against the other leg. Then use heat gun or flame

from lighter to heat the shrink tubing until it shrinks around the wire connected to one

of the led legs.

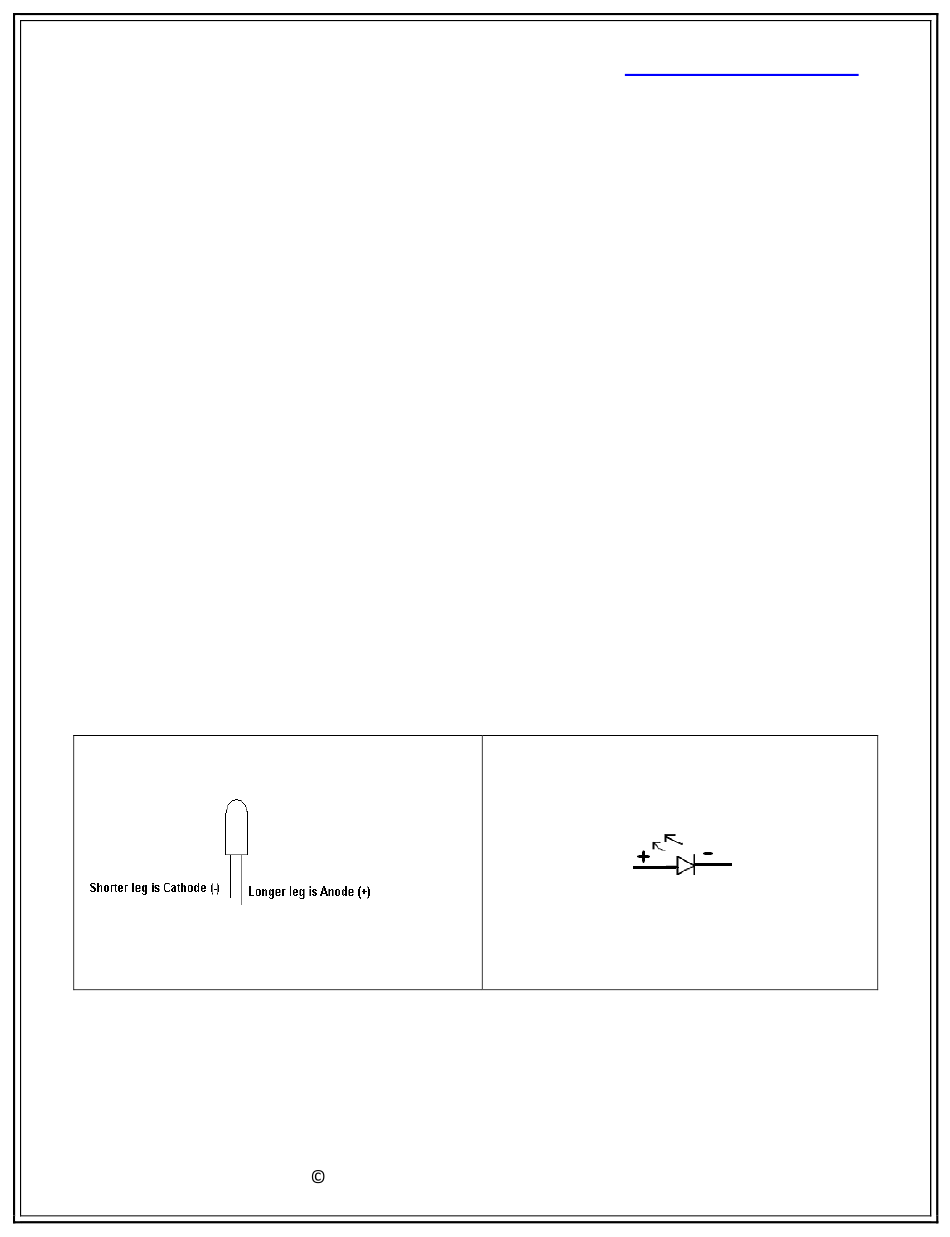

How to distinguish a led:

Anode Side (+)

Cathode Side (-)

P^ge 1

Table of Contents

Need help?

Do you have a question about the CARL-BB and is the answer not in the manual?

Page 1 Milford, M@ 01757 www.ten^controls.com Ten^Controls Brings Models to Life Instructions for Model#: CARL-BB, the Standard Car Lighting System for 1/25 Scale Model Cars This unit is completely assembled and tested. The only thing you need to do is connect up the led’s and the Momentary Magnetic Switch to the connection points as shown below in the Master Wiring Diagram.
Page 2 Ten^Controls LLC Milford, M@ 01757 www.ten^controls.com Ten^Controls Brings Models to Life Picture of magnetic switch Copyright 2013 Ten^Controls LLC P^ge 2...
Page 3 Ten^Controls LLC Milford, M@ 01757 www.ten^controls.com Ten^Controls Brings Models to Life Rear Back Up Lights 1. Two White led’s, LED1-LED2. The Two Anodes (+) of the Rear Back up Lights led’s, LED1-LED2 connect to the Blue wire from the pc board. Then connect the Cathode (-) of LED1-LED2 to the Orange wire from the pc board.
Page 4 Ten^Controls LLC Milford, M@ 01757 www.ten^controls.com Ten^Controls Brings Models to Life Left Side Front & Rear Directional Lights 5. Two Orange LED9-LED10. The Two Anodes (+) of the Left Side Front and Rear Directional Lights led’s, LED9-LED10 connect to the Black wire from the pc board.
Page 5 Ten^Controls Brings Models to Life Warranty TenaControls warrants that the control boards sold meet TenaControls specifications and are adequately contained, packaged and labeled and conform to the promises and affirmations of fact made on the container and label. THE FOREGOING...
