Peavey MM 8830 User Manual

Peavey MM 8830 User Manual

Mediamatrix mm 8800 series
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

MM
™
8800 Series
MM
™
8830
MM
™
8840
MM
™
8848
O p e r a t i n g G u i d e
A rc h i t e c t u r a l A c o u s t i c s
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MM 8830 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Peavey MM 8830

Summary of Contents for Peavey MM 8830

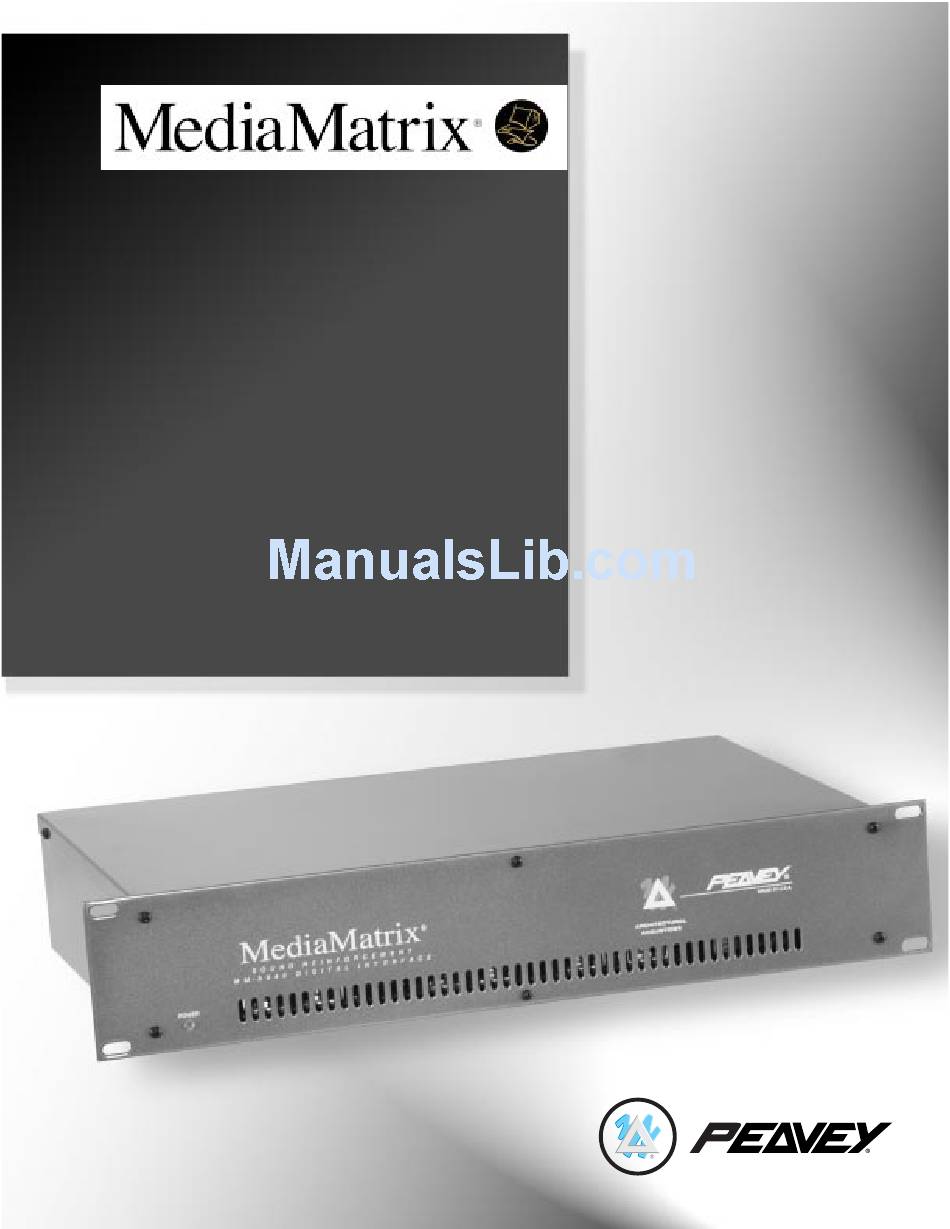

  • Page 1 ™ 8800 Series O p e r a t i n g G u i d e ™ 8830 ™ 8840 ™ 8848 A rc h i t e c t u r a l A c o u s t i c s ®...
  • Page 2 Intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

  • Page 3: Front Panel Power Led

    • Eight balanced audio inputs and eight balanced audio outputs, each utilizing 18-bit converters to transfer audio data to and from the MediaMatrix system. • Eight analog control inputs that may be used to control a device in a MediaMatrix view. •...
  • Page 4 Rear Panel: REAR PANEL IEC LINE CORD INPUT (2) Provided to accept the removable AC line cord. FUSE (3) WARNING: THE FUSE SHOULD ONLY BE REPLACED WHEN THE POWER CORD HAS BEEN DISCONNECTED FROM ITS POWER SOURCE. CAUTION: USING A FUSE LARGER THAN THE RECOMMENDED SIZE COULD RESULT IN PERMANENT DAMAGE TO THE UNIT.

  • Page 5: System Specifications

    SYSTEM SPECIFICATIONS Maximum Input Level: +18 dBu or +24 dBu Input Impedance: Greater than 12K ohms for +18 dBu full scale Greater than 15K ohms for +24 dBu full scale Electronically Balanced Maximum Output Level: +16 dBu, +12 dBu, +18 dBu, or +24 dBu (600 ohm load) Output Impedance: 200 ohms, electronically balanced...

  • Page 6: Wiring Diagram

    Wiring Diagram Control Input Examples Input Sources: Linear example allows control of device by tracking pot linearly. Nonlinear example allows control of device by tracking pot nonlinearly. Switch allows binary control of a device in a MediaMatrix view. Variable DC supply can be used to control device - NO MORE THAN 10V! (1) Linear Example 10K Linear Pot (2) Switch...
  • Page 7 Wiring Diagram Control Output Examples The eight control outputs appear on a separate Phoenix connector on the back of the Break-Out-Box. They provide logic outputs from the system. The output voltage is TTL format. Outputs are capable of sourcing 6ma and sinking 20ma while maintaining valid TTL levels. There are two electrical connections for each channel output control.
  • Page 8 Wiring Diagram Using the Breakout Box with an Unbalanced Audio Device 1. Unbalanced audio device output to balanced BoB input. 2. Balanced BoB output to unbalanced audio device input. Note: Be sure to ground the unused negative terminal on the BoB input/output. 1/4"...
  • Page 9 CD Player or Other Line Level Audio Device Note: If using an unbalanced audio source, be sure to ground the unused negative inputs on the BoB. Left Out Right Out Shield BoB Cable MediaMatrix Computer Wiring Diagram Insulated Conductor 1 Insulated Conductor 2 Shield Shielded,...
  • Page 10 MediaMatrix System with Microphone Preamp A/A-8P ™ MM-8800 Series BoB BoB Cable MediaMatrix Computer Wiring Diagram Pin 2 (+ conductor) Shielded, 2-Conductor Wire Left Input BoB Cable Connected to MM DSP Card IA 400 Power Amp Microphone Pin 1 (ground) Pin 3 (- conductor) Pin-to-Pin Connections use Shielded, 2-Conductor Wire...

  • Page 11: Panel Delantero

    Consulte los diagramas del panel delantero en la sección de inglés de este manual. Características de la interfaz “BoB” • Ocho entradas de audio balanceadas y ocho salidas de audio balanceadas, todas con convertidores de 18 bits para transferir datos de audio hacia y desde el sistema MediaMatrix.

  • Page 12: Panel Trasero

    Panel Trasero: PANEL TRASERO IEC LINE CORD INPUT (Tomacorriente para el cable de corriente) (2) Se suministra para enchufar el cable de corriente. FUSE (Fusible) (3) ADVERTENCIA: EL FUSIBLE DEBE REEMPLAZARSE SOLAMENTE CUANDO SE HAYA DESCONECTADO EL CABLE DE CORRIENTE DE SU FUENTE DE ENERGÍA ELÉCTRICA. PRECAUCIÓN: USAR UN FUSIBLE DE MAYOR CAPACIDAD QUE LA RECOMENDADA PODRÍA CAUSAR DAÑOS PERMANENTES AL APARATO.

  • Page 13: Panneau Avant

    Veuillez-vous référer au « front panel » art situé dans la section en langue anglaise de ce manuel. Caractéristiques de l’interface « BoB » • Huit entrées et huit sorties audio équilibrées, utilisant chacune des convertisseurs de 18 bits pour transférer les données audio depuis et vers le système MediaMatrix.

  • Page 14: Panneau Arrière

    Panneau Arrière: PANNEAU ARRIÈRE IEC LINE CORD INPUT (Prise pour câble d’alimentation) (2) Prise de branchement du cordon d’alimentation CA détachable. FUSE (Fusible) (3) AVERTISSEMENT : NE REMPLACER LE FUSIBLE QU’APRES AVOIR DECONNECTE LE COR- DON D’ALIMENTATION SECTEUR. ATTENTION : L’UTILISATION D’UN FUSIBLE D’UNE TAILLE SUPERIEURE A LA TAILLE RECOMMANDEE RISQUE D’ENDOMMAGER L’APPAREIL DE MANIERE PERMANENTE.
  • Page 15 Siehe Diagramm der Frontplatte im englischen Teil des Handbuchs. Merkmale der „BoB“-Schnittstelle • Acht symmetrische Audioeingänge und acht symmetrische Audioausgänge, die jeweils 18-Bit-Wandler einsetzen, um Audiodaten zum und vom MediaMatrix-System zu übertragen. • Acht analoge Steuerungseingänge, mit denen ein Gerät in einer MediaMatrix- Konfiguration gesteuert werden kann.
  • Page 16 Rückplatte: RÜCKPLATTE IEC LINE CORD INPUT (Stromanschluss) (2) Zum Anschliessen des abnehmbaren Wechselstrom-Kabels. FUSE (Sicherung) (3) Vorsicht: Vor dem Auswechseln der Sicherung muss unbedingt der Netzstecker aus der steckdose gezogen werden. Achtung: Durch die Verwendung einer grösser bemessenen Sicherung als vorgeschrieben kann der Apparat auf dauer beschädigt werden.
  • Page 17 For further information on other Peavey Architectural Acoustics products, ask your Authorized Peavey Sound Contractor for the appropriate Peavey Architectural Acoustics catalog/publication: Commercial Sound for Permanent Installations Engineered Sound Products for Permanent Installations Be Sure to Ask About Products in the Following Categories:...

  • Page 18: Limited Warranty

    If within one (1) year from date of purchase a properly installed product proves to be defective and Peavey is notified, Peavey will repair or replace it at no charge. (Note: Batteries and patch cords not covered.) “Original purchaser”...

  • Page 19: Important Safety Instructions

    16. The user should not attempt to service this equipment. All service work should be done by a qualified service technician. 17. This product should be used only with a cart or stand that is recommended by Peavey Electronics. 18. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time.
  • Page 20 ® ARCHITECTURAL ACOUSTICS® Features and specifications subject to change without notice. A Division of Peavey Electronics Corporation ® 711 A Street / Meridian, MS 39301 / U.S.A. / (601) 483-5376 / Fax (601) 486-1154 ©1996 #80300361 Printed in U.S.A. 7/96...
