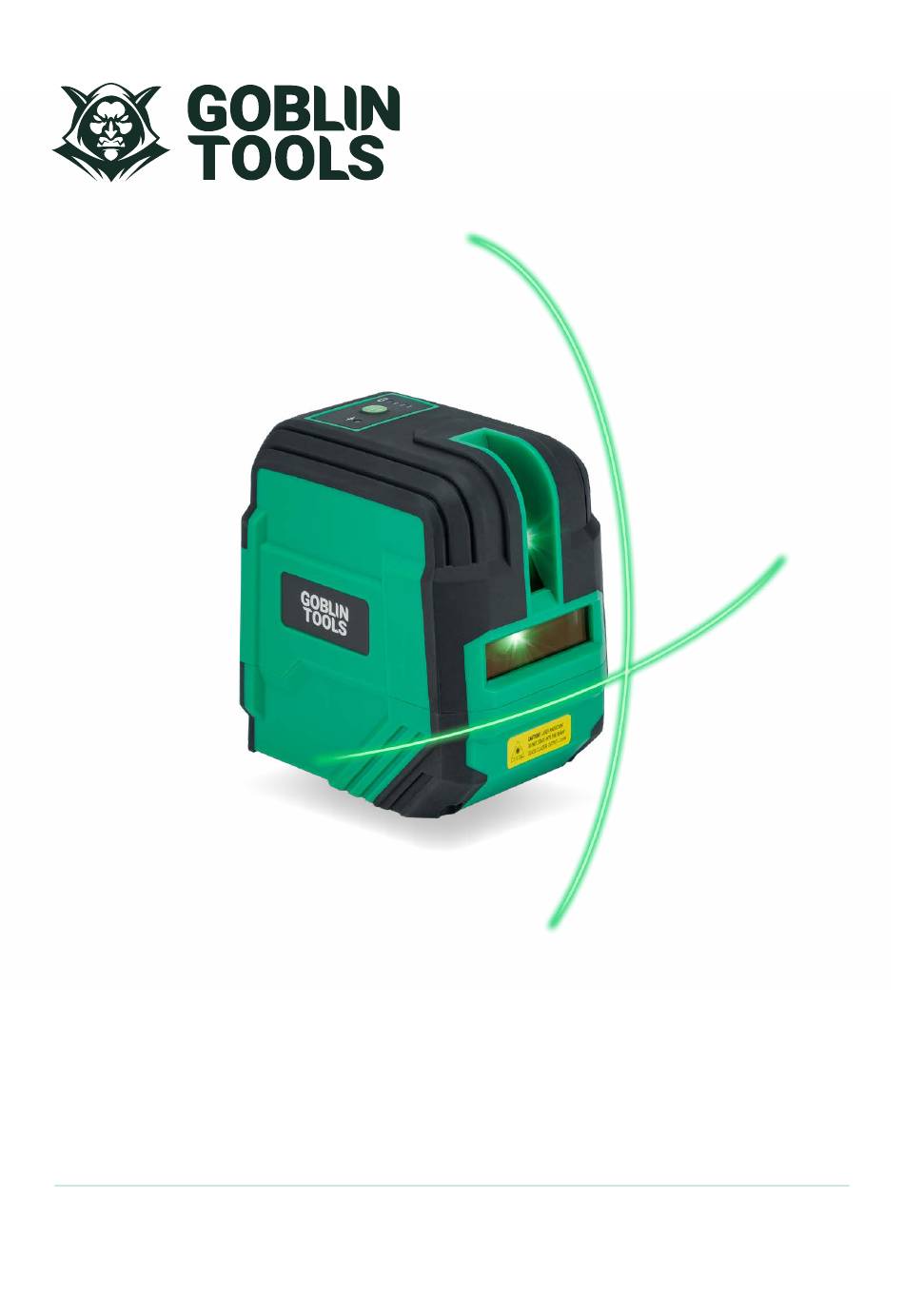

- Page 1 SKU: CLXPG21KT Revision 2022.1.0 CLX-PG21 Green Beam Crossline Laser Level Kit I N S T RU CT I ON MAN UA L...
-
Page 2: Table Of Contents
CONTENTS SAFETY ITEM CHECKLIST LASER OVERVIEW USING THE LASER MAGNETIC MOUNT MOUNTING TO A TRIPOD (NOT INCLUDED) USING A DETECTOR (NOT INCLUDED) CARE AND MAINTENANCE WARRANTY TROUBLE SHOOTING CUSTOMER SUPPORT EU DIRECTIVES AND DISPOSAL SPECIFICATIONS... -
Page 3: Safety
SAFETY Read the following safety instructions before attempting to • Do not set up the tool at a position where the laser beam operate this tool. can cross any person at head height. Keep these instructions in a safe place or store in the carry •... -
Page 4: Laser Overview
LASER LEVEL OVERVIEW Laser port 1/4”-20 thread Control panel Manual mode / detector (pulse) mode Power / locking switch Detector (pulse) mode indicator Charging port Power level indicator USING THE LASER LEVEL POWER SUPPLY • The laser level is supplied with a lithium-ion battery as its power source. - Page 5 USING THE LASER LEVEL (continued) SETUP • Select a place as close as practical to the work site. Ensure the location is clear of traffic. • Place the laser on a level surface such as a bench, floor or mount. OPERATION Powering on (self-levelling) •...
-
Page 6: Magnetic Mount
USING THE LASER (continued) MAGNETIC MOUNT Mounting via screw fixing points • Attach the laser level to the mount using the thumb screw MAGNETIC MOUNT OVERVIEW (Fig. 6). • Fix a screw into a secure surface and hook the mount Magnets over the screw, ensuring that the mount has a strong hold before releasing your hands. -
Page 7: Using A Detector (Not Included)
USING A DETECTOR NOT I N CLUD E D The detector and clamp is an optional accessory used to aid with locating the laser beam in bright conditions. Please refer to the following information to determine compatibility when choosing a detector: Detector type: Green and/or Hybrid. -
Page 8: Care And Maintenance
WARRANTY All Goblin Tools measurement tools are carefully checked 4 YEAR STANDARD WARRANTY PERIOD and tested to our precise quality assurance standards. 1. The warranty period for your tool is 4 years from the date We offer a warranty in accordance with the following of purchase. -
Page 9: Trouble Shooting
CUSTOMER SUPPORT SPECIFICATIONS To assist you with any queries or technical Specifications CLX-PG21 questions please contact customer support. Product code CLXPG21KT United Kingdom: 0808 189 1152 Warranty 8 Years* All other countries / regions: Accuracy ±2mm at 10m Visit www.goblintradetools.com for more information (±1/10in / 0.06in at 30ft) - Page 10 NOTES...
- Page 11 NOTES...
- Page 12 © 2023 Spot-on Global Group Ltd. Goblin Tools is a trademark of Spot-on Global Group Ltd and is used under license by Spot-on Laser & Tool Company UK Ltd. All Rights Reserved.
