Summary of Contents for Bardac drives T3-OPPAD

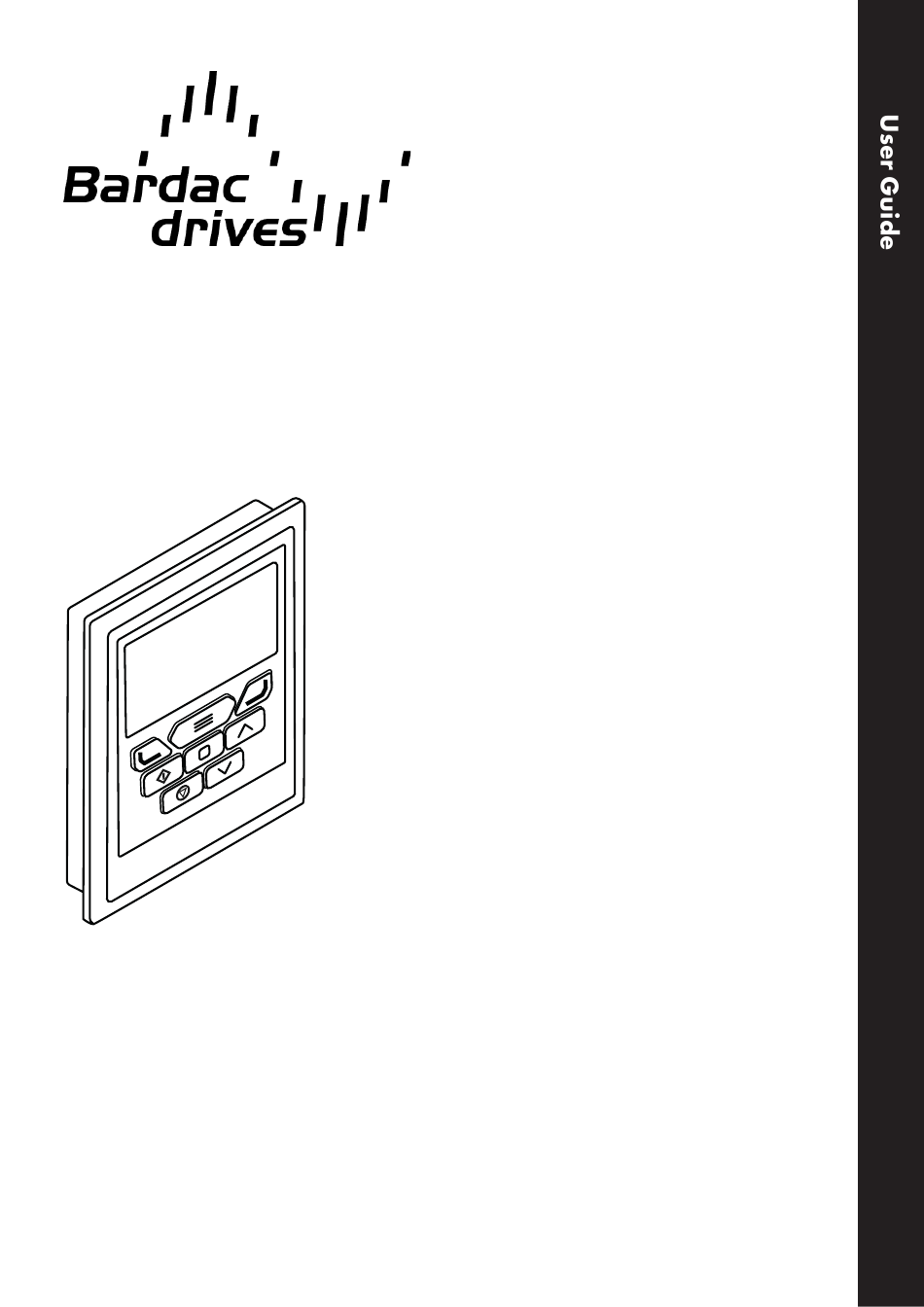

- Page 1 T3-OPPAD TFT Remote Keypad IP55...
- Page 2 IP55 Max Cable Length: 25m / 82.5ft shielded twisted pair Mechanical Installation Through Panel Mount The panel on to which the T3-OPPAD is to be mounted should Dimensions be cut out in accordance with the diagram below. 1 10mm 100mm...
- Page 3 NOTE Cannot be used with Master – Slave or Cascade Control Keypad and Display Layout The illustration below explains the main features of the T3-OPPAD. Please note that some features and display messages are specific to certain variants of the drive family.
- Page 4 To setup the drive communication address By default, the T3-OPPAD will try to communicate with the drive that has Address 1 in the network after powering up for the first time. The T3-OPPAD will display “Scanning for Drive 01.” after power up, which indicates that the T3-OPPAD is searching for the drive with the correct drive address in the network.
- Page 5 Indicates an Overload Display shows 'Fire Mode'. is powered only from an condition. Output current external 24 Volt source, exceeds the motor rated with no mains power current. applied. Version 1.02 | T3-OPPAD TFT Remote Keypad IP55 User Guide | 5 www.bardac.com...
- Page 6 Stop keys for the Stop key. parameters are keys for >2s. the Stop key. All parameters >2s. reset to Factory are reset to User defaults. Defaults. 6 | T3-OPPAD TFT Remote Keypad IP55 User Guide | Version 1.02 www.bardac.com...
- Page 7 Drive Fault Messages and Trip Codes See drive User Guide for further information. Further Status Messages and Troubleshooting T3-OPPAD uses various display messages to indicate different working status. See the following table for more information. Status Messages Message Explanation Scanning for Drive The T3-OPPAD is searching for the drive with address ‘xx’...
- Page 8 Ñ82-OPTFT-IN_V2.00[Ó 82-OPTFT-IN_V2.00 Bardac Drives 40 Log Canoe Circle. Stevensville, MD 21666 (410) 604-3400 | (888) 667-7333 bardac.com | driveweb.com | automationthings.com...
