REGAL-BELOIT
Variable Speed AC Motor Drives
Micro and PowerWash Series
Installation and Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spin Master PowerWash Series and is the answer not in the manual?

Questions and answers

Navin Maharaj
March 26, 2025

Good morning I have a issue with T424 model not coming on just saying limit when try to start

0

Summary of Contents for Regal-Beloit Spin Master PowerWash Series

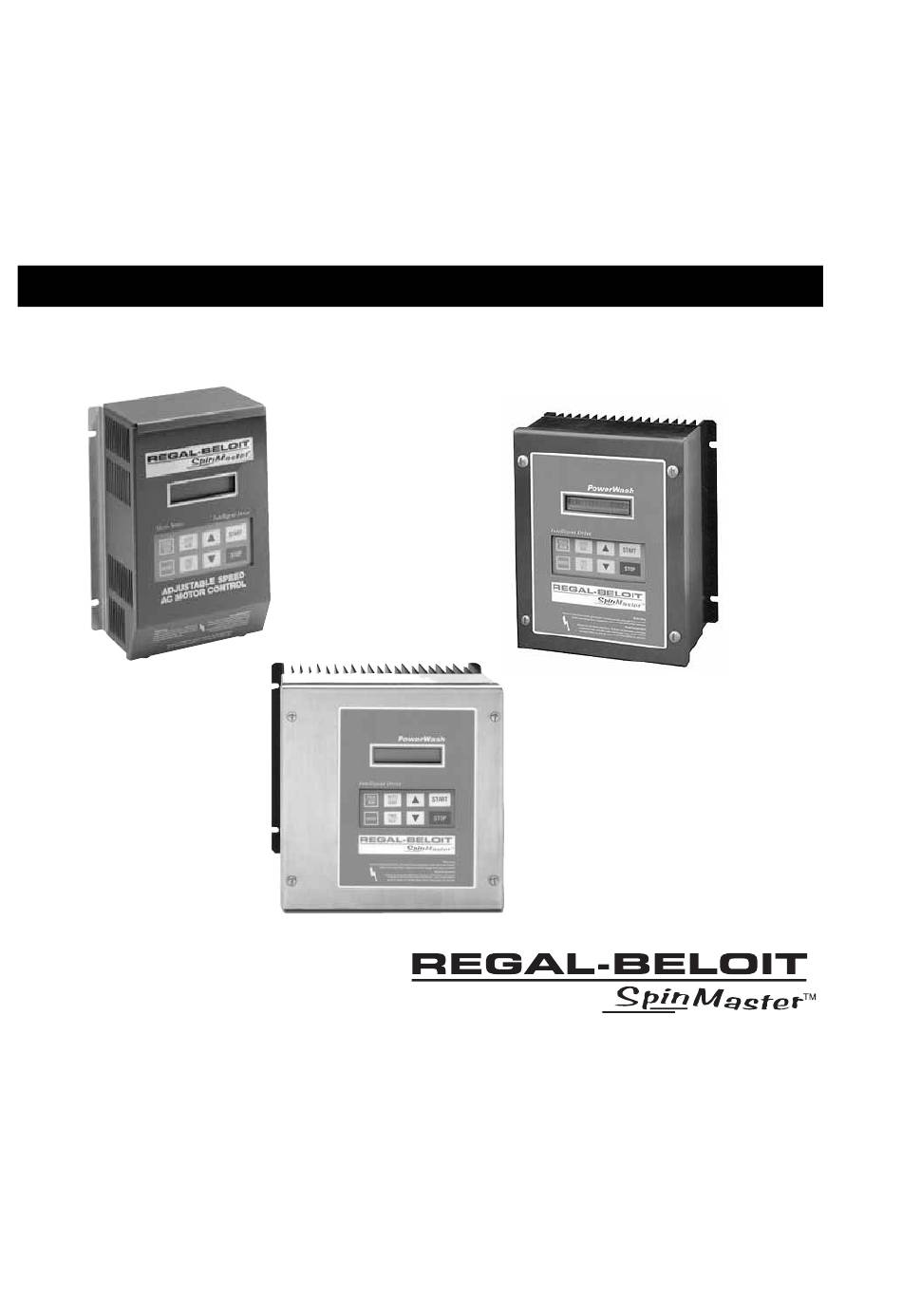

  • Page 1 REGAL-BELOIT Variable Speed AC Motor Drives Micro and PowerWash Series Installation and Operation Manual...

  • Page 2: Table Of Contents

    Manual Number: SB184 TABLE OF CONTENTS GENERAL ..........1 PRODUCTS COVERED IN THIS MANUAL .
  • Page 3 IMPORTANT NOTICE The following information is supplied to you for your protection and to provide you with many years of trouble free and safe operation of your Marathon Electric product. • Hazard of electrical shock! Disconnect incoming power and wait three minutes before servicing the drive.
  • Page 4 IMPORTANT NOTICE (continued) • Consult qualified personnel with questions. All electrical repairs must be performed by trained and qualified personnel only. • Consult motor manufacturer before operating motor and/or driven equipment above base speed. Resale of Goods: In the event of the resale of any of the goods, in whatever form, Resellers/Buyers will include the following language in a conspicuous place and in a conspicuous manner in a written agreement covering such sale: The manufacturer makes no warranty or representations, express or implied, by operation of law or otherwise, as to the merchantability or fitness for a particular purpose of the goods sold hereunder.

  • Page 5: General

    Variable Frequency Drive. PRODUCT CHANGES REGAL-BELOIT CORPORATION reserves the right to discontinue or make modifications to the design of its products and manuals without prior notice, and holds no obligation to make modifications to products sold previously. REGAL-BELOIT CORPORATION also holds no liability for losses of any kind which may result from this action.

  • Page 6: Receiving

    REGAL-BELOIT CORPORATION, its sales representatives and distributors, welcome this oppor- tunity to assist our customers in applying our products. Many customizing options are available to aid in this function. REGAL-BELOIT CORPORATION cannot assume responsibility for any modifications not authorized by its engineering department.

  • Page 7: Spinmaster™ Micro Drive Specifications

    SpinMaster™ PowerWash SPECIFICATIONS Storage Temperature -20° to 70° C Ambient Operating Temperature Type 1 (IP 31) -10° to 50° C (With 2.5, 6 and 8 kHz carrier, Type 4 (IP 65) -10° to 40° C derate for higher carriers) Type 12 (IP 54) -10°...

  • Page 8: Spinmaster™ Micro Drive Model Enclosure Designation

    SpinMaster™ Micro DRIVE MODEL ENCLOSURE DESIGNATION VOLTAGE PHASE NEMA 1 NEMA 4 NEMA 4X NEMA 12 120/240 T1110 T400 T410 — 120/240 T1112 T402 T412 — 208/240 T1212 T422 T452 — 120/240 T1114 T404 T414 — 208/240 T1214 T424 T454 —...

  • Page 9: Spinmaster™ Micro Drive Dimensions

    SpinMaster™ Micro DIMENSIONS SpinMaster™ NEMA 1 Enclosed ≤ IF W 7.86” CONDUIT HOLES: T = 0.20” S DIA. U = 0.34” 0.88” DIA. V = 0.19” 1.00” S DIA. IF W = 10.26” T = 0.28” U = 0.44” DIA. SLOT V = 0.24”...
  • Page 10 SpinMaster™ NEMA 1 Enclosed (continued) INPUT VOLTAGE MODEL 208/240 T1218 7.88 7.86 5.94 5.13 3.95 1.50 5.88 1.13 T1418 7.50 6.12 5.12 3.77 3.30 1.37 5.50 0.88 T1518 7.88 7.86 5.94 5.13 3.95 1.50 5.88 1.13 208/240 T1219 9.38 7.86 6.84 3.93 4.19...
  • Page 11 PowerWash NEMA 4 AND 4X Enclosed INPUT NEMA 4 NEMA 4X VOLTAGE MODEL MODEL 0.25 120/240 T400 T410 7.88 6.12 3.63 3.06 2.00 1.37 5.88 0.88 120/240 T402 T412 7.88 7.86 3.75 4.80 2.10 1.37 5.88 0.88 208/240 T422 T452 7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88...
  • Page 12 PowerWash NEMA 4 AND 4X Enclosed (continued) INPUT TYPE 4 TYPE 4X VOLTAGE MODEL MODEL 208/240 T428 T458 9.75 10.26 7.20 5.13 5.25 2.00 7.75 1.13 T438 T468 7.88 7.86 5.90 4.80 4.25 1.37 5.88 0.88 T448 T478 7.88 7.86 5.90 4.80 3.25 1.37 5.88 0.88 208/240 T429...
  • Page 13 SpinMaster™ NEMA 12 Enclosed INPUT NEMA 12 VOLTAGE MODEL 208/240 T532 15.75 10.26 8.35 5.13 5.75 1..75 1.38 (See NEMA 4 or 4X) (See NEMA 4 or 4X) 208/240 T533 20.25 10.26 8.35 5.13 5.75 2.00 16.25 1.38 T543 15.75 10.26 8.35 5.13 5.75...

  • Page 14: Spinmaster™ Micro Drive Ratings

    SpinMaster™ Micro Drive RATINGS The following tables indicate the input and output ratings of the SpinMaster™ Micro drive series. NOTE: The output current ratings are based on operation at carrier frequencies of 8 kHz and below. At full ambient temperature, operation at carrier frequencies above 8 kHz require der- ating the drive by multiplying the output current rating by the following factors: 0.94 at 10 kHz, 0.89 at 12 kHz, and 0.83 at 14 kHz.
  • Page 15 SpinMaster™ Micro Drive RATINGS (continued) SpinMaster™ Micro Drive 208/240 Vac Ratings Models Input Output (Note 1) (240 Vac, 50 - 60 Hz) (0 - 230 Vac) Nominal Nominal Current Current Rated Input (Amps) Power (Amps) Power Phase (Note 2) (KVA) (Note 2) (KVA) T1112, T402, T412...
  • Page 16 SpinMaster™ Micro Drive RATINGS (continued) SpinMaster™ Micro Drive 480 Vac Ratings Models Input Output (Note 1) (480 Vac, 50 - 60 Hz) (0 - 460 Vac) Nominal Nominal Current Current Rated Input (Amps) Power (Amps) Power Phase (Note 2) (KVA) (Note 2) (KVA) T1414, T434, T464...
  • Page 17 SpinMaster™ Micro Drive RATINGS (continued) SpinMaster™ Micro Drive 575 Vac Ratings Models Input Output (Note 1) (590 Vac, 50 - 60 Hz) (0 - 575 Vac) Nominal Nominal Current Current Rated Input (Amps) Power (Amps) Power Phase (Note 2) (KVA) (Note 2) (KVA) T1514, T444, T474...

  • Page 18: Theory

    THEORY DESCRIPTION OF AC MOTOR OPERATION Three phase AC motors are comprised of two major components, the stator and the rotor. The stator is a set of three electrical windings held stationary in the motor housing. The rotor is a metal cylinder, fixed to the motor drive shaft, which rotates within the stator.
  • Page 19 6.1.1 VARIABLE TORQUE VS. CONSTANT TORQUE Variable frequency drives, and the loads they are applied to, can generally be divided into two groups: constant torque and variable torque. Constant torque loads include: vibrating conveyors, punch presses, rock crushers, machine tools, and just about every other application that is not considered variable torque.

  • Page 20: Drive Function Description

    “Variable torque” refers to the fact that the torque required varies with the square of the speed. Also, the horsepower required varies with the cube of the speed, resulting in a large reduction in horsepower for even a small reduction in speed. It is easily seen that substantial energy savings can be achieved by reducing the speed of a fan or pump.
