Astera TITAN POWERBOX - Power Supply Manual

CONTENT

1. Titan PowerBox (FP1-PWB)
2. PowerCon True1 Cable (AX5-CHR)
3. 8 x Short DC cables (FP1-CHRCSE-SCS)
4. User manual

PRODUCT OVERVIEW

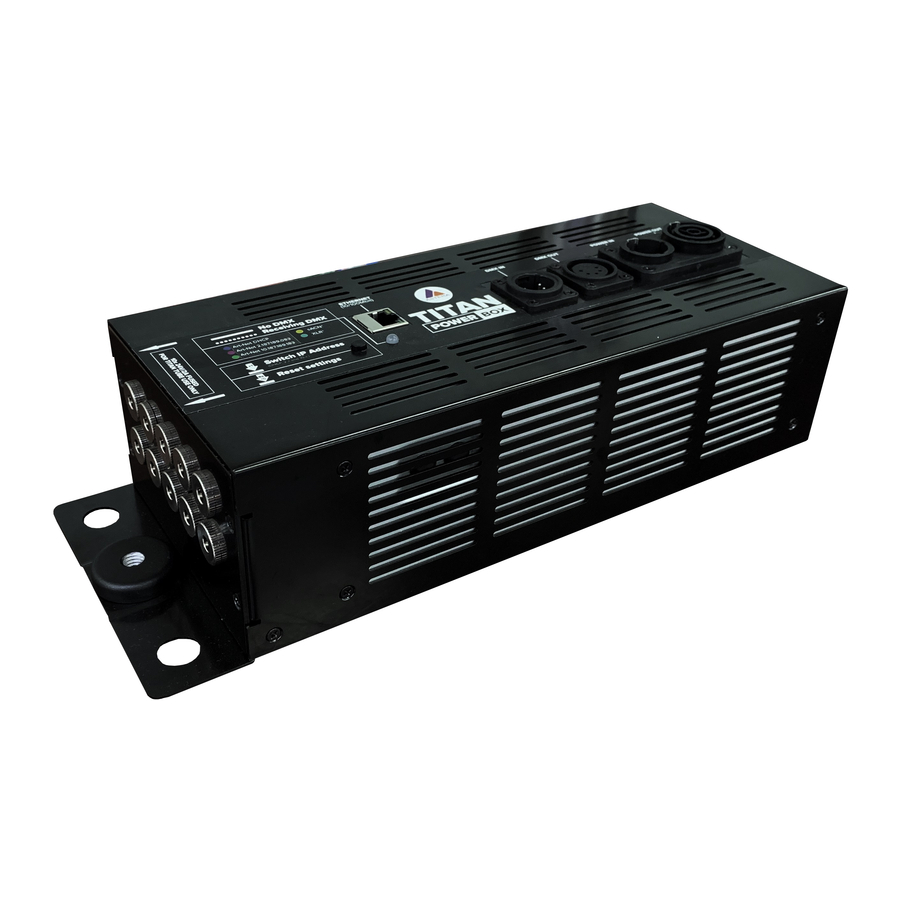

Isometric view

Top view

Side view

USAGE

AC- and DMX-Wiring

AC power and DMX data can be connected to Astera Lights via Astera's Titan PowerBox and Astera's power/data combination cable (FP1-PWB-CAB-5/10/15). That way, the lights can be wired for a longer show or permanent installation.

The Titan PowerBox contains Neutrik PowerCON True1 IN and OUT sockets and 5-pin XLR IN and OUT sockets so that several Titan PowerBoxes can be daisy chained. In addition, data can also be applied to the Titan PowerBox via its RJ45 Ethernet socket which accepts Art-Net DHCP, 2.X and 10.X as well as sACN. Its operation is explained in the next chapter.

The Titan PowerBox has 10 DC sockets to wire 10 Titan/ Helios Tubes via power/data combination cables (sold separately). 10 outputs mean that a whole DMX universe of Titan Tubes can be connected (10 tubes x 16 pixels x 3 channels).

Data Input

The inputs have the following priorities:

1. XLR
2. sACN
3. Art-Net

As long as XLR is received, sACN and Art-Net are deactivated. While sACN or Art-Net are received, DMX is also output on the XLR connector.

Status LED & control button

The PowerBox has a status LED next to the Ethernet socket. If the status LED is constantly on, this indicates that no DMX data is being received. If the status LED blinks slowly, this indicates that the PowerBox receives DMX.

The indicator LED can light up in different colors to indicate which data source is being received:

	Blue	Art-Net DHCP
	Magenta	Art-Net 2.X address
	Green	Art-Net 10.X address
	Yellow	sACN
	Cyan	XLR

There is a button next to the indicator LED. A single press on the button cycles between the different IP settings for Art-Net: DHCP, 2.x and 10.x. While sACN or Art-Net are received, DMX is also output on the XLR connector.

Reset & Update Firmware

You can enter the reset mode anytime by holding down the power button for 8s.

The controller can be reset to restore the universe ID to 1 again. Also, during each reset the controller tries to download a software update from the Internet. To be successful, it must be connected to a LAN which has an Internet access. Be sure that the PowerBox is in Art-Net DHCP mode: blue LED is on.

The reset is done like this:
Hold the button down → LED blinks blue → hold still → stops blue blinking after 4 seconds.

When the LED turns red, indicating the reset has been successful. Release the button. The PowerBox returns to Art-Net 2.x again if no update was found.

If an update was found, the LED flashes green/blue until the update has been installed.

Change universe ID manually

When the PowerBox is in normal mode (i.e. not blinking, no reset/ update ongoing) a long press (4 seconds)* enters the universe ID setting mode. In this mode the indicator LED blinks blue and shows the universe ID. For example; if the universe ID is 8, the LED blinks blue for 8 times then it stops for 2 seconds, this sequence is looped. A single short press increases the universe ID. As the maximum ID is 16 in this mode, a single short press sets to 1 if the universe ID is 16. During the universe ID setting mode a long press (4 seconds) goes back to normal mode.

• Be aware that 8 seconds long press enters the reset mode and restore the universe ID to 1 again!

Rigging

The PowerBox has a 3/8" - 16 UNC thread to easily attach appropriate mounting accessories. It can be can be turned into a 1/2" hole.

When hanging, always secure with a safety wire. Therefore one of the safety eyelets can be used. Make sure the PowerBox cannot drop more than 20cm if primary mounting fails.

INTRODUCTION / INTENDED USE

The Titan PowerBox can charge up to ten Titan/ Helios Tubes inside their respective case. When taken out of the case it can also be used to hard-wire Titan/ Helios Tubes for a longer usage. In addition, the Titan PowerBox can add DMX, Art-Net and sACN data to your Titan/ Helios Tubes. Power and Data can both run over special cables so only one cable is needed to connect a Titan/ Helios Tube to the Titan PowerBox. The Titan PowerBox can be used standing or hanging. For this purpose, the device is equipped with a 3/8" - 16 UNC thread to easily attach appropriate mounting accessories.

The Titan PowerBox can be used indoors and has an IP20 rating.

Do not shake the device. Avoid brute force when installing or operating the device.

When choosing the installation spot, please make sure that the device is not exposed to extreme heat or dust. Avoid direct sunlight for a longer period of time.

Never use the device during thunderstorms connected to the power mains. Overvoltage could destroy the device. Always disconnect the device during thunderstorms.

Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.

Always fix the fixture with an appropriate safety wire.

Operate the device only after having become familiarized with its functions. Please consider that unauthorized modifications on the device are not allowed due to safety reasons! If this device is operated in any way different from what is described in this manual, the device may suffer damages and the warranty may be void.

The disclaimer includes all damages, liability or injury resulting from failure to follow the instructions in this manual.

Furthermore, any other operation may lead to dangers like short circuit, burns, electric shock, crash etc. This device is not for household use and is not suitable for permanent installation.

SAFETY INFORMATION

Before you operate this unit read the manual carefully. Always make sure to include the manual if you pass/ rent/ sell the unit to another user.
Please use your own caution when operating.
This product is for professional use only. It is not for household use.

• Do not operate the unit in areas of high temperature conditions or under direct sunlight. It can cause abnormal function or damage the product.
• Always use a suitable safety wire when mounting the unit overhead.
• Connect the safety wire only to the intended safety mount.
• Always follow local safety requirements.
• Do not place in fire or heat.
• Do not use the unit if it is damaged.
• Avoid bumping or plunging, it may cause fire or explosion.
• It is recommended to charge at a temperature between 15°C and 35°C.

In extreme cases, abuse or misuse of standard/ rechargeable batteries can lead to:

• Explosion
• Fire development
• Heat generation or smoke and gas development.

• Do not open the product housing.
• Do not apply power if the unit is damaged.
• Do not submerge the unit into any liquid.
• Caution, risk of electric shock.

The PowerBox shall be installed near a socket-outlet which must be easily accessible.

Risk of electric shock - Do not open device.

• The exterior surfaces of the unit can become hot, up to 70°C (158°F) during normal operation.
• Ensure that accidental physical contact with the device is impossible.
• lnstall only in ventilated locations.
• Do not cover the device.
• Allow all units to cool before touching.

CLEANING AND MAINTAINING

Liquids entering the housing of the device can cause a short circuit and damage the electronics. Do not use any cleaning agents or solvents. Only clean using a soft damp cloth.

SECONDARY SAFETY MOUNTING

The Titan PowerBox must always be secured by a safety wire when used in a hanging position. If the primary suspension fails, the device must not fall more than 20cm.

Use safety eyelet for safety wire.
Please check the safety regulations in your region.

SPECIFICATIONS - TECHNICAL DATA

Astera LED Technology GmbH
Stahlgruberring 36
81829 Munich
Germany
info@astera-led.com | www.astera-led.com

https://astera-led.com/powerbox
