Summary of Contents for Metalcraft TFA11

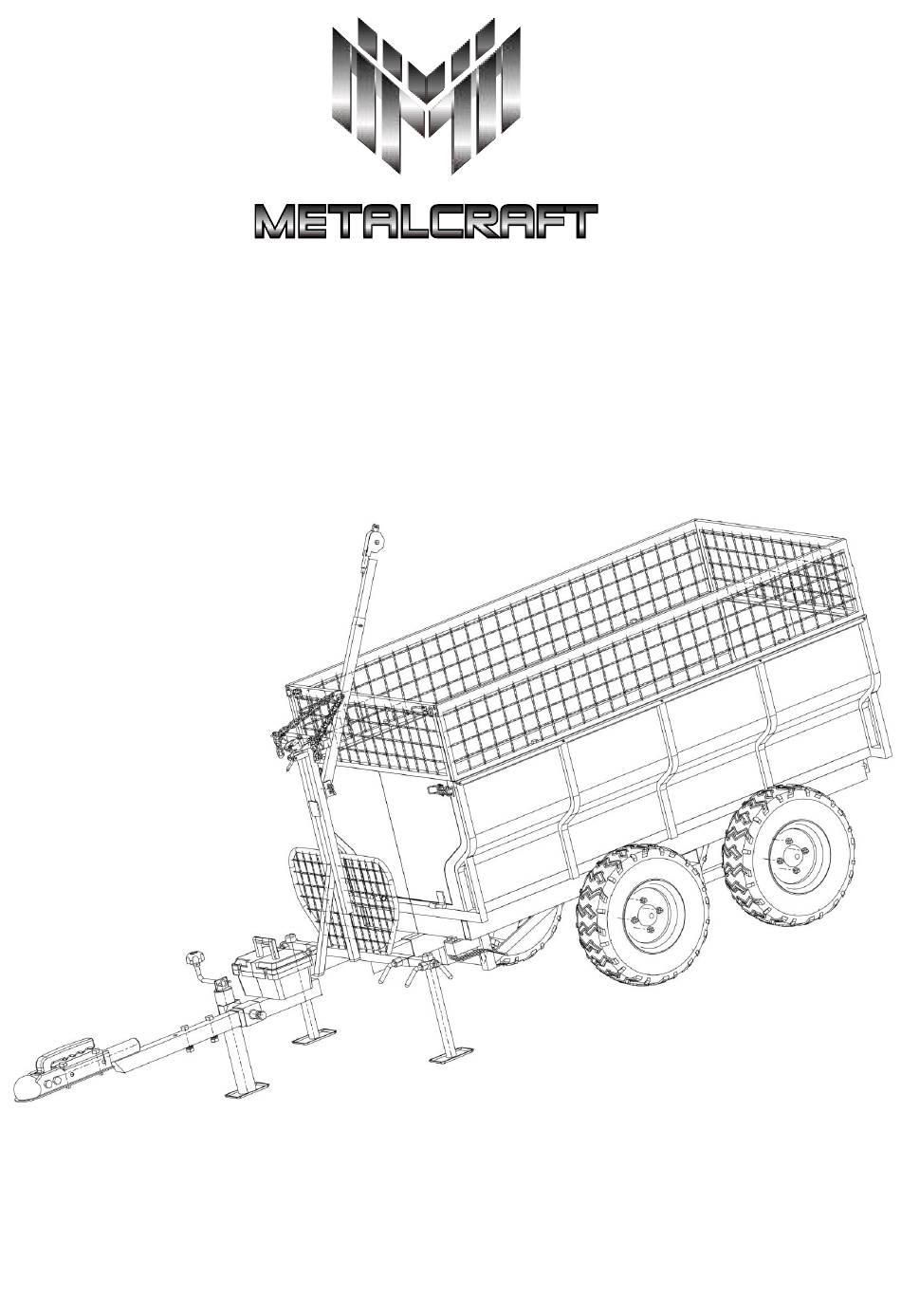

- Page 1 ATV trailer with Linear Actuator TFA11...
- Page 2 Specific Warnings and Precautions for the linear actuator 1. Read through and understand the manual before using the linear actuator. 2. Connect the plug with an ATV or UTV trailer to make the linear actuator work. 3. Make sure the motor has fully stopped before changing directions. If you change directions when the motor is running, it may damage the motor.
- Page 3 2. Install the net frame &the jack, then install the stanchion, using 2-M12*70 bolt, M12nut. Tighten the nut after adjusting to the appropriate position. Install the linear actuator, using ⌀12* 70bolt M12 nut, Install the tool box with 2 -⌀6 * 20 bolt, M6 nut.
- Page 4 3. Install the box, using 2- M18*80 pin roll, 2-“R” pin,2-M16 nut, Install the linear, using 12* 70 bolt M12 nut with the box. Install the door panel and fasten it. SEE FIGURE 3. 4. Install the fence, using 6-M8*30 bolt, M8 nut, fasten the fence. SEE FIGURE 4.
- Page 5 5. Install the crane, using 2-M14*140 bolt, M14nut, install the rotating parts with the hanger, using M20 nut, ⌀20 washer, ⌀20washer, ⌀16spring, adjust the chain length, using 2-D pin. Install the rotating parts, using 2- M10*80 bolt, 2-M10 nut, 2-⌀10 washer, 2-⌀10 spring washer, 2-⌀16 bolt sleeve. Install the tool box with 2 -⌀6 * 20 bolt, M6 nut. SEE FIGURE 5.
- Page 6 Never… • Use excessive speed while towing trailer. • Exceed the maximum load capacity of 1200KGS. • Allow people or animals to ride in trailer. • Use on hilly terrain. • Use a damaged product. • Use when intoxicated or using over-the-counter medication or prescription drugs. •...
- Page 7 A11 ATV trailer Part List DESCRIPTION M12 wheel hub nut M8*20 M12 wheel hub nut Ø18*80 pin roll M12 wheel hub nut "R" pin M12 wheel hub nut Ø18*80 pin roll M12 wheel hub nut "R" pin M12 wheel hub nut M12*70 bolt M12 wheel hub nut M12 nut...
