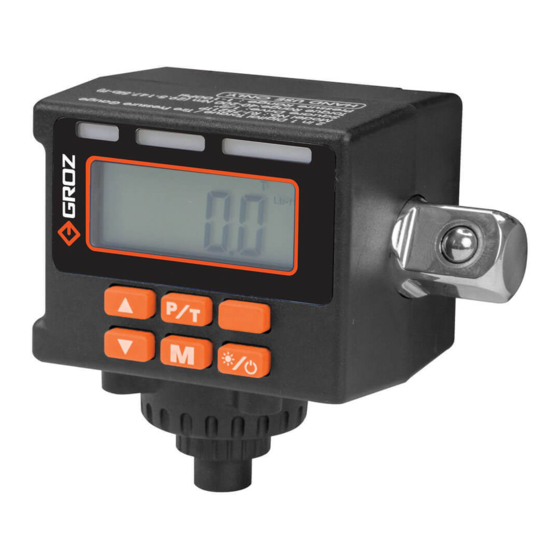

Digital Torque Adaptor
with Tire Pressure Gauge
Digital Torque
Adaptor comes
with an in-built Tire
Pressure Gauge
making it a must have
for every mechanic
After tightening tire
bolts, user can take
measurement of tire
pressure with the
same tool
Large easy to
read LCD display
with backlight & a
resolution of 0.1 Nm
(0.1 lb-ft) / 0.1 PSI
Light & sound
indication with three
LED lights which turn
from Green to Red on
reaching the required
torque level
Measures Torque in 5
units: Nm, Lb-ft, Lb-in,
kg-m, Kg-cm
Measure Pressure in
4 Units: PSI, Kpa, Bar,
Kg-cm
2
Memory function that
can store up to 50
readings
SPECIFICATIONS
Square Drive
Operation Modes
Backlight
Alert
Length
Weight
Operating Ambient Temperature
Storage Temperature
Auto Shut-Off
ORDERING INFORMATION
CAT NR.
TQA/D/200/100
WORKING MODES:
Mode 1:
Digital Torque
Adaptor
Mode 2:
Tire Pressure Gauge
Works with 2 AAA
batteries with a life
of 50 continuous
working hours
Each unit is supplied
with calibration
certificate.
Comes in a safe to
store & carry blow
moulded case
CONFORMS TO
ACCURACY
ISO 6789
±2%
WORKING PRESSURE
WORKING TORQUE
40-200 N-M
(29.5-147.6 LB-FT)
1/2"
Trace / Peak
Yes
LED & Buzzer
75 mm (3")
230 gms (0.5 lbs)
-10°C to 60°C (14°F to 140°F)
-20°C to 70°C (-4°F to 158°F)
60 seconds
ORD. NR.
38890
INSTRUCTION MANUAL
WORKING
PRESSURE
1-100 PSI
MODE 1
Use as digital torque adaptor
MODE 2
Use as tire pressure gauge
S2700, REV A
TQA-D
LED Indicator
(+) Increase
LCD Display with
backlight
1/2" Square
Drive
Power Button
Buzzer
Memory Button
(-) Decrease
1
Advertisement
Summary of Contents for Groz TQA-D
- Page 1 INSTRUCTION MANUAL S2700, REV A Digital Torque Adaptor TQA-D with Tire Pressure Gauge Digital Torque WORKING MODES: LED Indicator Adaptor comes Mode 1: with an in-built Tire Digital Torque (+) Increase Pressure Gauge Adaptor making it a must have for every mechanic...
- Page 2 Insert the ratchet handle drive in the female drive of the adaptor. Mount the socket of appropriate size on Press “P/T” button to change from peak to trace the male drive of the torque adaptor. mode and vice versa. *Feature applicable for torque mode only www.groz-tools.com...
- Page 3 Accessing saved torque values from memory* BATTERY CHANGING Remove the four screws at the back of the adaptor. Insert 2 AAA batteries and tighten the back cover with the four screws. Press “M” button to enter the memory slots and CAUTION “M”...
- Page 4 This warranty does not apply to damage due directly or indirectly, to misuse, abuse, wear and tear, negligence or accident, repairs or alterations outside GROZ plants, or to lack of maintenance. GROZ shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special or consequential damages arising from the use of its products.
