Summary of Contents for Tool Shed TSSH05

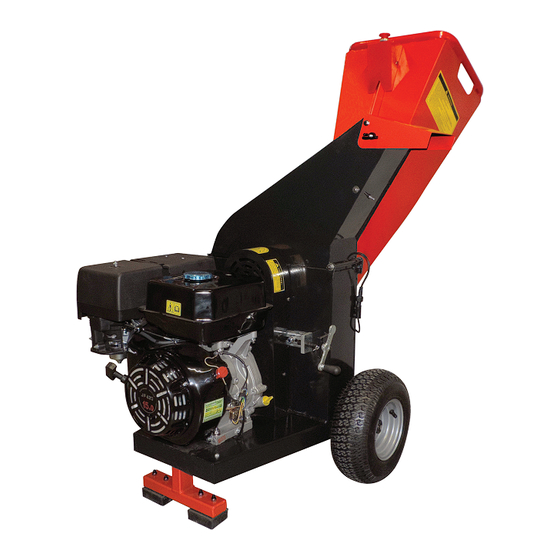

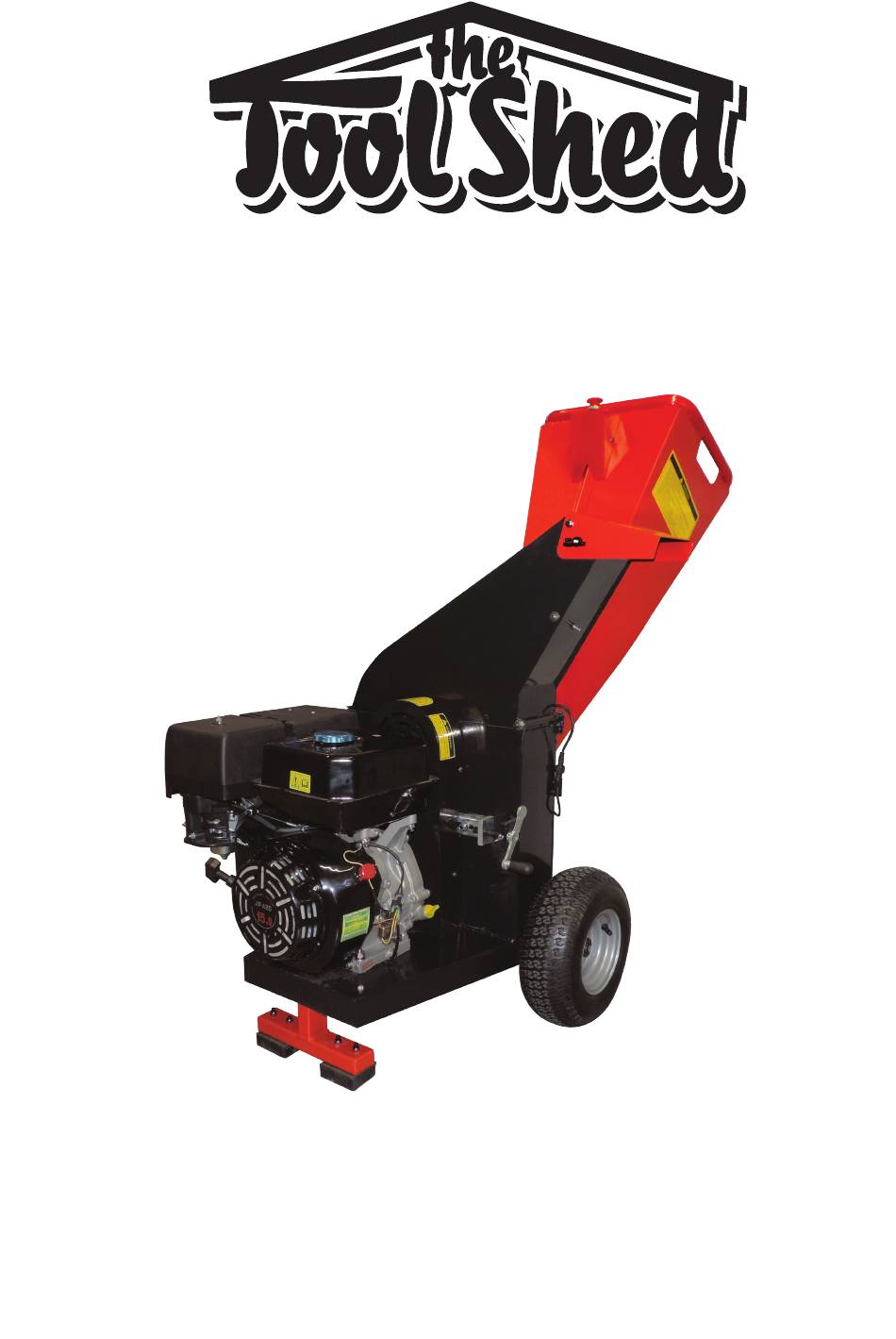

- Page 1 100MM PETROL POWERED CHIPPER/ SHREDDER TSSH05 / TSSH05E www.thetoolshed.co.nz...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Product Details Specifications Product Identification Safety Information Assembly Functions Operation Maintenance Troubleshooting Parts Diagram... -
Page 3: Product Details
Product Model ToolShed 100mm Petrol Powered Chipper/Shredder Product Code TSSH05/TSSH05E Distributed By Note: This manual is only for your reference. Due to the continuous improvement of the ToolShed products, changes may be made at any time without obligation or notice. -
Page 4: Specifications
SPECIFICATIONS Model TSSH05 / TSSH05E Engine 420cc / 15HP Fuel Volume 6.5L Oil Volume 1.1L Fuel Type Unleaded Gasoline Chipping Blade 3 pieces Max. Chipping Size 100mm... -
Page 5: Product Identification
PRODUCT IDENTIFICATION Emergency switch Support leg Discharge port Feed hopper Main body cover Main body Engine Wheels... -
Page 6: Safety Information
SAFETY GUIDELINES of risk away from moving parts or they WARNING could be caught. - Always remain alert and DO NOT READ ALL SAFETY WARNINGS & operate the power tool or machinery INSTRUCTIONS. Failure to follow under the influence of any substances instructions and warnings could lead to (drugs, medications, alcohol). - Page 7 SAFETY GUIDELINES Fuel & Engine Safety Gasoline & Vapors Engine exhaust contains carbon monoxide, a colorless, odorless, poison DANGER gas. Breathing carbon monoxide will cause nausea, dizziness, fainting or death. GASOLINE AND GASOLINE VAPORS If you start to feel dizzy or weak, get fresh ARE HIGHLY FLAMMABLE AND air immediately.
- Page 8 SAFETY GUIDELINES When Adding or Removing Specific Safety Gasoline - Always feed from the side. - DO NOT light or smoke cigarettes. - It is better to have a second trained - Turn the engine off and let it cool for at operator within reach of the machine.
- Page 9 SAFETY GUIDELINES - Wear long pants while operating the replace as necessary. wood chipper. - Never tamper with safety devices. Check - Keep bystanders at least 50 feet away they are operating properly regularly. from your work area at all times. Stop - Before performing any maintenance the engine when another person or pet or inspection procedure, shut down the...
-
Page 10: Assembly
ASSEMBLY Support Legs & Wheel Assembly Attach the support leg (A) to the main body, using nut M8 (I). Install the tires (C) to the main body using the wheel axle (B), bolt M8x20 (F), Ø8 spring washer, and Ø8x20x2 flat washer (H). - Page 11 ASSEMBLY Feed Hopper Assembly Open the main body cover by loosening the screw. Install the feed hopper (D) to the main body by using Ø8 flat washer (J), Ø8 spring washer (G), and nut M8 (I). Close the main body cover by tightening the screw. Connect the wire connector for the emergency stop button.
- Page 12 ASSEMBLY Discharge Port Assembly Install the discharge port (E) to the main body cover using bolt M6x12 (K), nut M6 (O), bolt M6x20 (N), Ø6xØ18x1.6 flat washer (M), and wing nuts (L).
- Page 13 ASSEMBLY Adding Engine Oil Adding Fuel WARNING WARNING DO NOT attempt to crank or start the Gasoline vapors are highly engine before it has been properly flammable and extremely explosive. filled with the recommended type and amount of oil. Damage to the Use clean, fresh, regular unleaded gasoline engine as a result of failing to follow with a minimum octane rating of 87 and...
-
Page 14: Functions
FUNCTIONS Fuel Valve Control Recoil Starter Grip The fuel valve opens and closes the Pulling the starter grip operates the recoil passage between the fuel tank and the starter to crank the engine. Use this to start carburetor. The fuel valve lever must be the engine on your machine. -
Page 15: Operation
OPERATION 9. To start a cold engine, move the choke lever to the CLOSE position. To restart a warm engine, leave the choke lever in the OPEN position. Starting Move the throttle lever away from the SLOW position, about 1/3 of the way In a well-ventilated outdoor area, add toward the fast position. -
Page 16: Maintenance
MAINTENANCE Access for Changing Blades & WARNING Clearing Blockages Before performing any maintenance or repair, disconnect the spark plug wire and let the engine cool. The engine contains flammable fuel. DO NOT smoke or work near open flames while performing maintenance. To ensure efficient operation and longer life of your chipper/shredder, a routine maintenance schedule should be prepared... -
Page 17: Troubleshooting
TROUBLESHOOTING Problem Cause Remedy Spark plug wire disconnected Attach spark plug wire securely to spark plug Out of fuel or stale fuel Fill with clean, fresh gasoline Fuel valve not in ON position Fuel valve must be in ON position Engine fails to Choke lever not in CLOSE position Choke level must be in CLOSE position for a cold start... -
Page 18: Parts Diagram
PARTS DIAGRAM 41 27...
