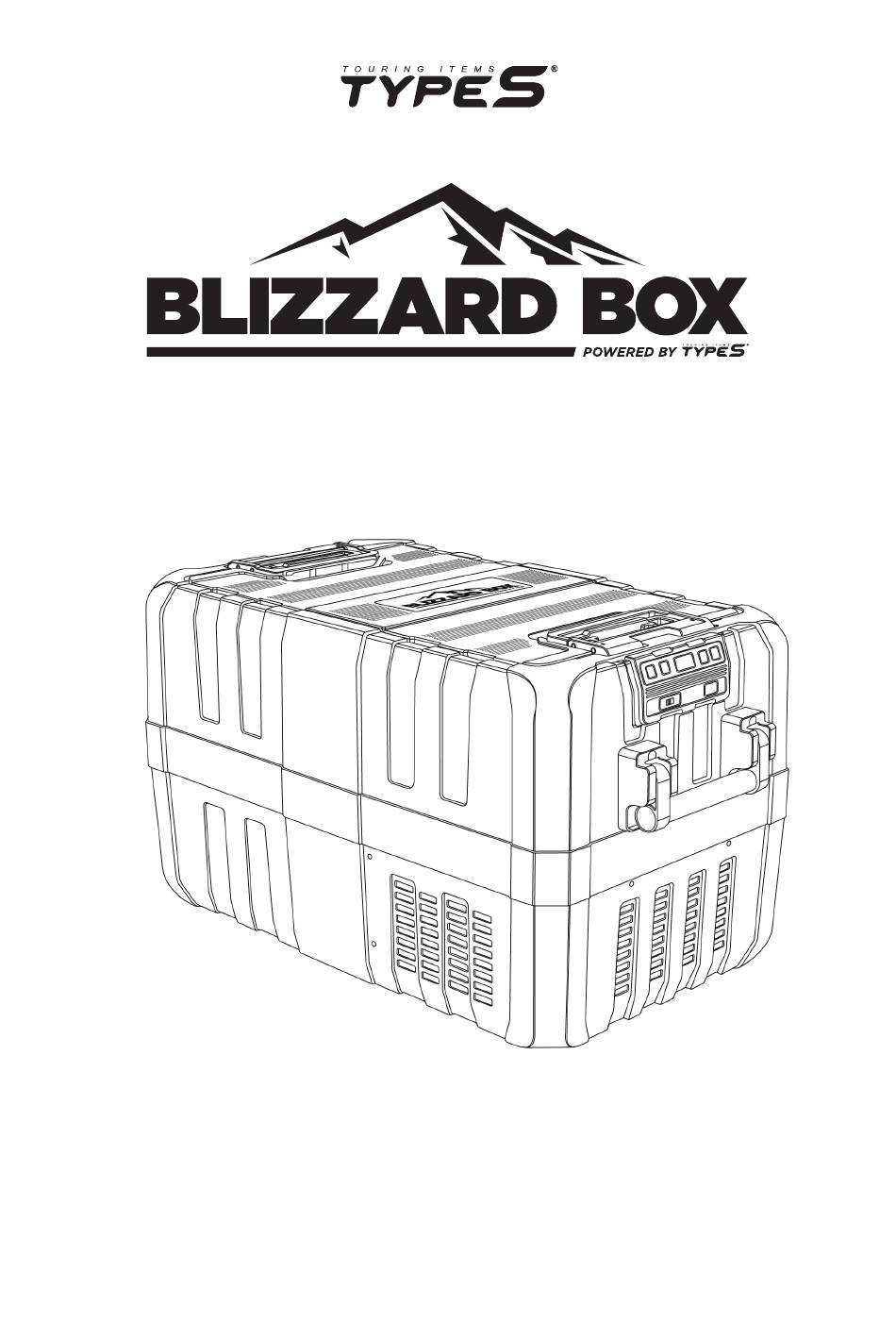

- Page 1 PORTABLE FRIDGE / FREEZER 56 Quart / 53 Liter WP ITM. AC57859 AC57859-1 INSTRUCTION MANUAL PLEASE READ THIS USER MANUAL CAREFULLY BEFORE CONNECTING AND OPERATING APPLIANCE. SAVE FOR FUTURE REFERENCE.
-
Page 2: Package Contents
PACKAGE CONTENTS: Blizzard Box Blizzard Box Lid AC to DC 12/24V Instruction Power Adapter - DC Power Cord - Manual 6’ Cord 9 1/2’ Output: 24VDC 4.75Amp* Small Large see footnote on page 15. Storage Basket Storage Basket Input: 100-240 VAC, 2.0Amp Max. -
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS: Capacity: 56 Quart (53L) Dimension: 31.9” x 17.9” x 17.4” (Including handles) (799mm x 448mm x 435mm) USB charging port output: 5 V / 1.5A rating Climate class: 50ºF ~ 109ºF (10ºC ~ 43ºC) (SN/N/ST/T) Compressor: SECOP/Danfoss PBC-2.0 Cooling performance: 0ºF ~ 50ºF (-18ºC ~10ºC) Refrigerant:... -
Page 4: Operation
OPERATION: BEFORE YOU START CAUTION! • To reduce the chances of overheating, keep your Blizzard Box in an open area, not to obstruct the heat dissipation side ventilation openings. Ensure these side vents are not blocked while in use, or shortly after use. •... - Page 5 OPERATION CONT.: 2. Operating panel Power / Status Light On / Off Button Temp. / Setting Up Orange: Stand-by Green: Running Setting Button Digital Display Temp. / Setting Down Error Light Red (Flashing): Low voltage or damage, contact Customer Care. 3.
- Page 6 OPERATION CONT.: - Use to switch between Fahrenheit and Centigrade. The cooling temperature appears on the display for a few seconds. The display flashes several times and then the current interior temperature is displayed again. NOTE If the ambient outdoor temperature is above +90°F (+32°C), the minimum setting temperature cannot be attained.
- Page 7 OPERATION CONT.: The selected mode then appears on the display for a few seconds. The display flashes several times before it returns to the current temperature. (Reference Section 9 for more information) 6. Turning off the Blizzard Box In working status, press and hold button for three seconds to turn off the Blizzard Box.
- Page 8 OPERATION CONT.: 8. USB port for power supply 1.5A USB Port allows you to charge most mobile devices. 9. Setting Vehicle Battery Protection / Low Voltage Battery Protection When the vehicle battery’s voltage drops to the below setting, the Blizzard Box compressor will turn off. This will protect the vehicle battery from over discharge.
- Page 9 OPERATION CONT.: 10. 3-Position Lid 11. Temperature Tips Suggested Beverage & Food Storage Temperatures Temperature Beer (Light), Sparkling Wines, Champagne 41°F / 5°C Beer (Craft), White Wine 46°F / 8°C Beer (Rich flavor), Red Wine 53°F / 12°C Soda / Pop 40°F / 4°C Fruit &...
- Page 10 OPERATION CONT.: Cleaning and Maintenance WARNING: Always disconnect Blizzard Box from power before cleaning or servicing. WARNING: Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the Blizzard Box. • Occasionally clean the device interior and exterior with a damp cloth. •...
- Page 11 • Pay attention to the voltage description on the rating label, and ensure that the power cord is connected to right power outlet. • If this power cable is damaged, it must be replaced by TYPE S, customer service or a similarly qualified person in order to prevent safety hazards.
- Page 12 WARNING CONT.: Over-voltage can damage the electronics of the device. • Blizzard Box can only be maintained by authorized person, improper maintenance may lead to unexpected dangers or damages. • Corrosive materials should not be stored in Blizzard Box. • The Blizzard Box should be used, kept and stored in a dry place, avoiding water splashes, rain, or other moisture.
-
Page 13: Warranty
Conditions of Warranty: If during the 1 year warranty period your new product is found to be defective, TYPE S will repair such defect without charge for parts or labor, or will replace the product, subject to the following condition: 1. - Page 14 WARRANTY CONT.: BLIZZARD BOX MODEL#: AC57859 Responsible Party: TYPE S 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, USA Tel: 1-866-294-9244 FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the...
- Page 15 NOTE: - This type of cooler has a compressor pump and it doesn’t run continually. After the Blizzard box is cooled down to set temperature the pump only turns on “as needed” with 65 watt draw at 12 volts. When the Blizzard Box first starts and is cooling down it does run full time at 65W until set temperature.
-
Page 16: Troubleshooting
Have a comment or question? Email us at: info@typesauto.com or visit us online at www.typesauto.com A Horizon Brands Company 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 1.866.294.9244 | info@typesauto.com ©2020 TYPE S. All rights reserved. www.typesauto.com ML-57859_V1...
