Summary of Contents for Tool Shed TSARN

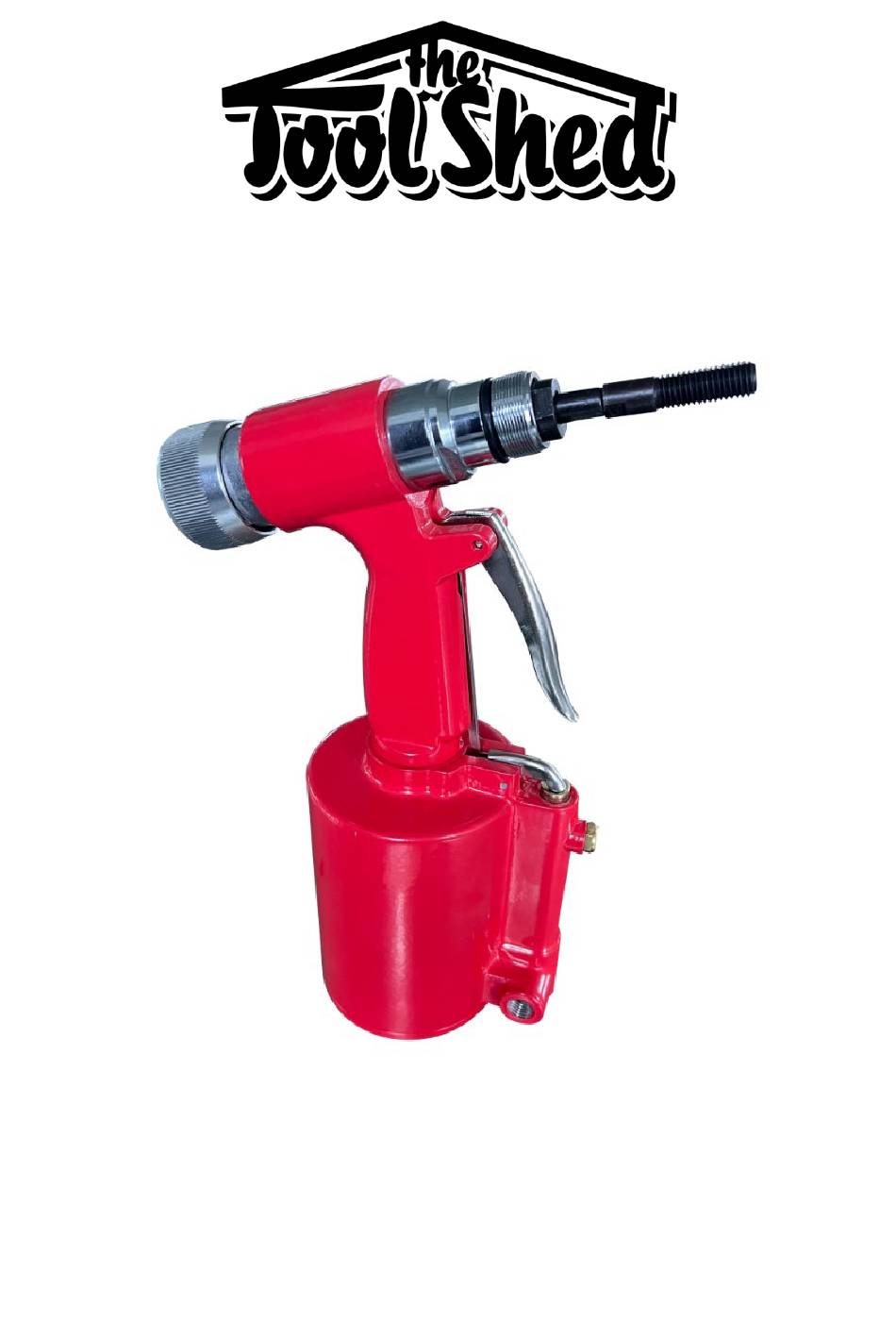

- Page 1 AIR RIVET NUT TOOL TSARN www.thetoolshed.co.nz...
-
Page 2: Product Details
PRODUCT DETAILS PRODUCT ToolShed Air Rivet Nut Tool MODEL NO. TSARN ISTRIBUTED BY NOTE: This manual is only for your reference. Due to the continuous improvement of the ToolShed products, changes may be made at any time without obligation or notice. - Page 3 OPERATION MANUAL C O N T E N T S: Safety Information ..........................4 Assembly ..............................6 Operation ..............................7 Maintenance ............................9 www.thetoolshed.co.nz...
-
Page 4: General Safety Guidelines
OPERATION MANUAL IMPORTANT INFORMATION GENERAL SAFETY GUIDELINES WARNING READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. Failure to follow instructions and warnings could lead to serious injury, electric shock, or fire. Save ALL warnings and instructions for future reference. WORK AREA SAFETY Ensure that your work area is kept well-lit and clean. - Page 5 OPERATION MANUAL Only use the power tool and machinery with genuine parts or accessories that are designed to be used with the power tool and machinery. Failure to do so could result in accident, injury, or damage to your tool or machinery. Store your tool or machinery out of reach of children and away from untrained personnel when not in use.
- Page 6 OPERATION MANUAL ASSEMBLY Air Supply The recommended air system is as follows: 1. Use proper air hose size (refer to tool specifications). The hose should be just long enough to serve the working area. Excessive hose length will cause pressure drop. WARNING: Ensure that the air supply is clean and does not exceed 90psi.
-
Page 7: Operation
OPERATION MANUAL OPERATION 1. Make sure that a filter, regulator with pressure gauge, oiler, in-line shut off valve, and quick couple is fitted to the air line. 2. If an automatic oiler system is not used, add 4 to 5 drops of Air Tool Oil to the air inlet before operation then add 1-2 more drops every hour of continual use. - Page 8 OPERATION MANUAL OPERATION Aluminium Rivets Capacity Steel Rivets Capacity Stainless Rivets Capacity 1. Ensure the desired mandrel has been installed. 2. Using a drill, drill into the material you wish to Riv Nut. 3. Attach an air hose to the Nitto Style Fitting covered in the Connecting Air Supply section. 4.
-
Page 9: Maintenance
OPERATION MANUAL MAINTENANCE Daily – Air Supply Maintenance Every day, maintain the air supply according to the component manufacturers instructions. Drain the moisture filter regularly. Performing routine air supply maintenance will allow the tool to operate more safely and will also reduce wear on the tool. Quarterly (every 3 months) –...
