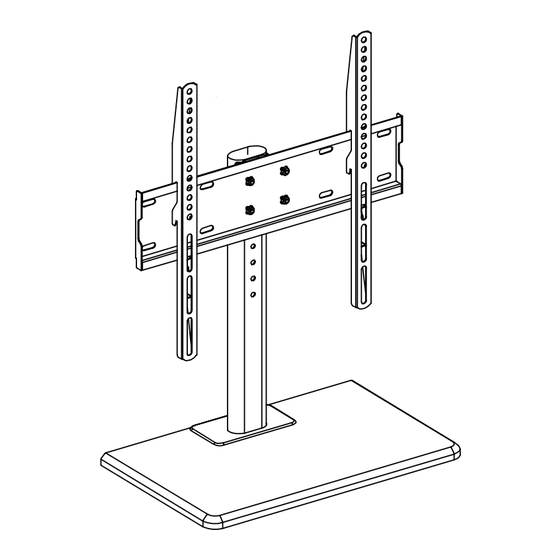

- Page 1 32" - 65" Swivel TV Base Model: 100010116 PRODUCT GUIDE Nov. 5, 2020_V1...
-
Page 2: Safety Caution
Before getting started, let’s make sure this mount is perfect for you! MAX: 400mm/15.75" Is your TV VESA equal (MIN: 75mm/2.95") to / greater than 75mm x 75mm Yes ― Perfect! (2.95" x 2.95") and MAX: 400mm/15.75" No ― This mount is NOT compatible (MIN: 75mm/2.95") equal to / less than with your TV. -
Page 3: Product Overview
PRODUCT OVERVIEW SIDE VIEW VESA INTERFACE MAX: 400mm (15.75") MIN: 75mm (2.95") ① 24.41" / 620mm ① MAX: 400mm (15.75") ② 26.77" / 680mm MIN: 75mm (2.95") ① 18.50" / 470mm ② ② 20.87" / 530mm TOP VIEW-SWIVEL FULLY ASSEMBLED MOUNT 17.72"... -
Page 4: Parts List
Parts List: TV plate Anti-tip safety strap kit Base Column TV bracket TV Base Assembly Hardware: Plastic cable management clip Allen wrench M8x30mm screw M6X38mm screw TV Mounting Hardware TV Screws Spacers M8x10mm M8x20mm M4x12mm M6x12mm Washers M8x35mm M6x35mm M4x30mm... - Page 5 CAUTION: Carefully lay your TV on its face on a flat, non-abrasive surface covered with blanket or soft padding to help prevent damaging the screen. CAUTION: Place left and right TV bracket in the appropriate position, make sure they are CENTERED on the back of TV and LEVEL with one another.
- Page 6 Assemble Column on Base with Screws Select appropriate holes at your desired height, then attach TV plate to Column with Screws...
- Page 7 Choose proper TV bracket section to hang pre-assembled TV unit on TV plate your desired height, tighten TV brackets with safety screws as shown. CAUTION : This step requires 2 or more people to complete. Option 1: Choose TV bracket section 1 to hang TV unit on TV plate Option 2: Choose TV bracket section 2 to hang TV unit on TV plate section 1 Option 1...
- Page 8 TV height can be adjusted by choosing different holes on Column to assemble TV plate TV plate...
- Page 9 Make sure the TV unit is horizontal, you can level the TV plate ±4° by loosening 4 leveling screws with Allen wrench . When it is at your desired position, tighten the leveling screws. 4 leveling screws You can swivel the TV to your desired angle ±35° after assembly. 35°...
