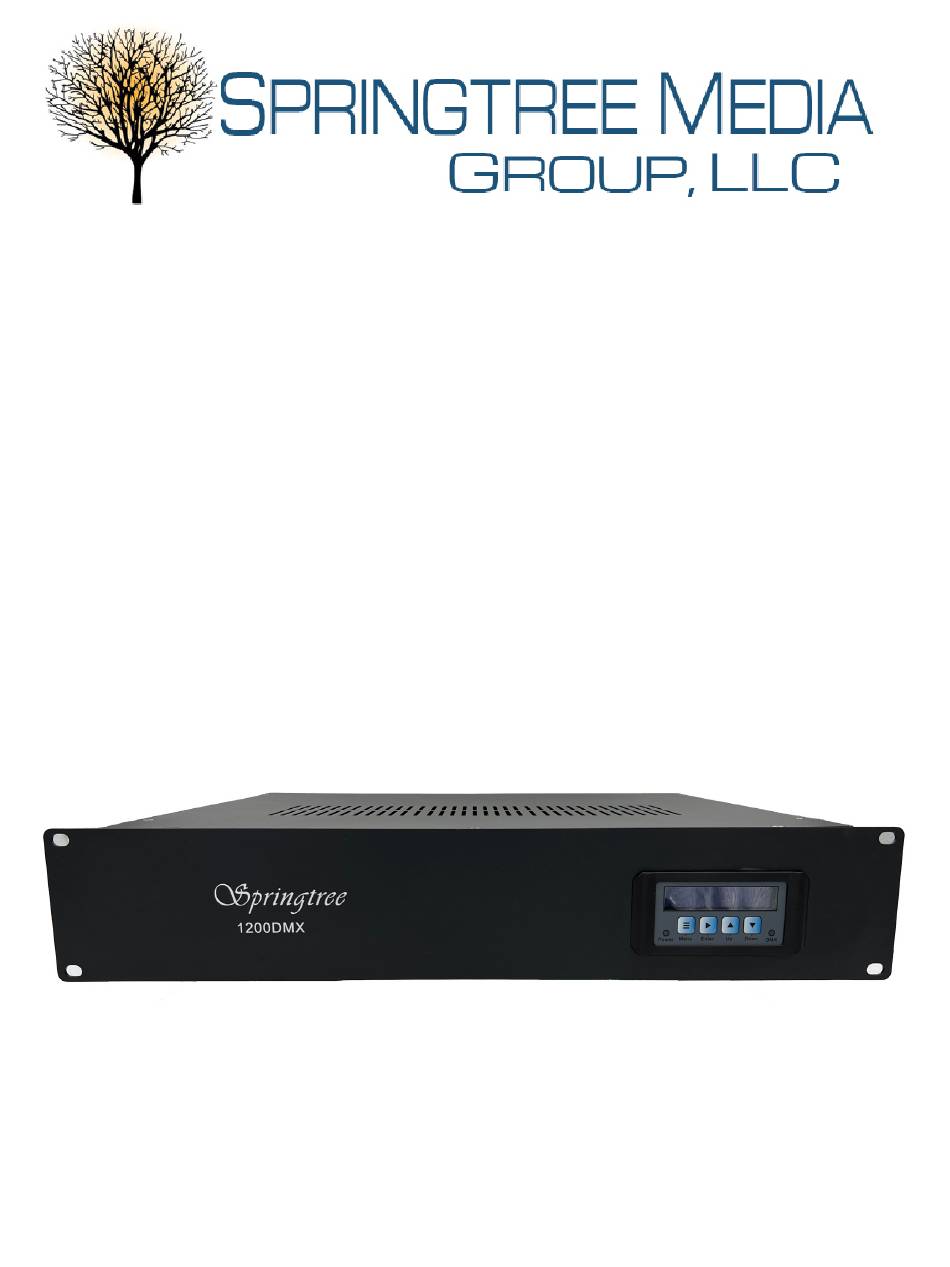

- Page 1 DMX1200 USER MANUAL AND INSTALLATION GUIDE...
-
Page 2: Table Of Contents
Table of Contents Product Information Description..........................3 Features............................3 Safety Precautions........................3 Installation Installation..........................4-6 Operation Operation..........................7-9 Menu............................7 Zones............................8 DMX............................9 Technical Specifications Dimensions..........................10 Weights............................10 Troubleshooting........................10 Warranty...........................11 Contact us..........................11 (615) 599-1505 www.springtree.net... -
Page 3: Product Information
Product Information Description: The DMX1200 is a game-changing 24 volt, DMX- controlled power supply for Springtree Lo-Vo lighting modules. It can power up to (32) 30watt Spatial Flats, (16) 50watt Spatial Flats or (80) LEDBoard12 LED Modules, all on a single 20 AMP circuit. -
Page 4: Installation
Installation To install the DMX1200 you will need 2 rack spaces in a standard 19” rack. There are 4 screw holes for mounting in the rack. Be sure to leave room in back for the electri- cal and dmx wires and connectors. Do not block any vent holes on the top and sides. - Page 5 Installation cont. The DMX1200 can power up to (32) 30watt Spatial Flats, (16) 50watt Spatial Flats or (80) LEDBoard12 LED Modules, all on a single 20 AMP circuit. The image below shows the DMX1200 used with various combinations of each light per port. Each of the 8 ports must not exceed 150 watts (120w reccomended).
- Page 6 B = Blue W = Blue Connector 5 Connector 6 Connector 7 Connector 8 + = Brown + = Brown + = Brown + = Brown R = Blue G = Blue B = Blue W = Blue (615) 599-1505 www.springtree.net...
-
Page 7: Operation
Operation - Menu There are four buttons on the front of this unit: MENU, ENTER, UP and DOWN. *Press MENU to choose your output mode, DMX address, color macro, user color as well as PWM (pulse width modulation) mode. (615) 599-1505 www.springtree.net... -
Page 8: Zones
Operation continued - Zones Splitting Zones: When the DMX1200 is being controlled by DMX there are 4 options to split zones. See the images below showing the zone breakout. 2 channels (white) / 10 channels (rgbw) two 1 channel (white) / 5 channel (rgbw) one... -
Page 9: Dmx
Operation continued - DMX Channels DMX Channels: (615) 599-1505 www.springtree.net... -
Page 10: Technical Specifications
14.5” • AC input: 120V • DC output: 150w per connector, 1200w total • Environmental Temp: -4 deg F - 140 deg F • Weight: 20 lbs Weight: 20 lbs • Dimensions: 19” x 14.5” x 3.5” (615) 599-1505 www.springtree.net... -
Page 11: Warranty
2nd YEAR - Repair/ Replace Springtree discretion. Return shipping covered by customer. Contact us Springtree Media Group would like to thank you for choosing our company for your lighting needs! If you have any questions or concerns, please contact us. Office hours:...
