  • Page 1 ACCON-S5-LAN User manual The best solutions for PLC...
  • Page 2 This manual is for project developers, users and assemblers who utilize the ACCON-S5-LAN. It shows the user the handling of the ACCON-S5-LAN and explains the signalling functions. All necessary data for assembling should be provided to the assembler. © 1995 - 2009 DELTALOGIC Automatisierungstechnik GmbH Stuttgarter Str.

  • Page 3: Table Of Contents

    The software PLC-VCom....................9 4.1.1. Setup........................9 4.1.2. Using the software PLC-VCom ................10 4.2. STEP 5 add-on driver for ACCON-S5-LAN ..............13 4.3. The software S5-LAN-Manager ................... 15 Using the ACCON-S5-LAN....................18 5.1. Siemens S5 software V7.x..................18 5.2.

  • Page 4: Accon-S5-Lan Properties

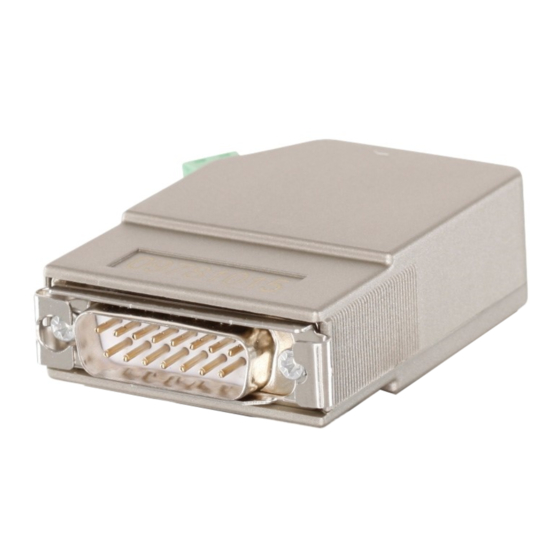

    ACCON-S5-LAN is a connection adaptor between a PC and a S5 controller via Ethernet using TCP/IP. The voltage feed is effected by the PLC’s interface, so an external supply feed is not necessary. The ACCON-S5-LAN has an integrated multiplexer to allow you to visualize and program at the same time. With the help of the supplied software, a virtual, serial interface can be setup at the PC.

  • Page 5: Device Description

    1.4. Device description Figure 2: ACCON-S5-LAN - notifications and interfaces 1.) PU interface S5 2.) LED for 10 Mbps network 3.) LED for 100 Mbps network 4.) Hardware configuration reset 5.) S5 communication state: LED off: device is off or in boot mode...

  • Page 6: Requirements For Using

    A network interface card 10/100 Mbps with RJ-45 bushing. 2.2. Software requirements For using the ACCON-S5-LAN you need a PC with Windows NT, Windows 2000 or Windows XP. The use with Windows 98SE and Windows Me is possible, but no support is available for these OS. ACCON-S5-LAN...

  • Page 7: Assembly

    The ACCON-S5-LAN will be plugged in directly on the S5 PLC. Normally the voltage feed is effected by the PLC’s interface. If the PLC does not have a 24 VDC power supply (e.g. S5-95U), this allows the ACCON-S5-LAN to be fed 24 VDC (green clamp).
  • Page 8 A direct operation of the network card on your PC without a hub/switch is possible. You have to use a cross-over cable for this kind of connection. Figure 4: Connecting the ACCON-S5-LAN to a PG/PC via cross-over-cable ACCON-S5-LAN DELTALOGIC Automatisierungstechnik GmbH...

  • Page 9: Using The Accon-S5-Lan

    Please find further information about the »S5-LAN-Manager« program in chapter 4.3 »The software S5-LAN-Manager«. If the ACCON-S5-LAN is to replace a serial connection, a virtual, serial interface has to be setup. This is made with the »PLC-VCom« program, look chapter 4.1 »The software PLC-VCom«.

  • Page 10: Using The Software Plc-Vcom

    Select the required ACCON-S5-LAN and press «OK«. • When the IP address of the selected ACCON-S5-LAN is shown in the state section in the PLC-VCom dialogue and »connected« is indicated, the connection is made. In the tray of the task bar (to the left of the time), the symbol for the PLC-VCOM software is shown. The setup program enters the program in the autostart folder so that it is loaded automatically with every startup.
  • Page 11 Figure 7: PLC-VCom dialogue window 1st) Status display 2nd) The IP address of the configured ACCON-S5-LAN 3rd) Search or select an ACCON-S5-LAN 4th) Software, which uses or has used this interface at last 5th) Minimize dialogue window to tray 6th)
  • Page 12 This function is not necessary for the ACCON-S5-LAN. As soon as you have pressed »OK« and an ACCON-S5-LAN has been selected, the PLC-VCOM dialogue will be refreshed and shows the selected ACCON and the »connected« state in the »Status« section.

  • Page 13: Step 5 Add-On Driver For Accon-S5-Lan

    4.2. STEP 5 add-on driver for ACCON-S5-LAN In order to make the virtual serial interface (COMx) setup by PLC-VCom available for the Siemens S5 software, this add-on driver must be installed. PLC-VCom must be installed previous to this add-on driver! Before you start the installation, please close the Siemens S5 software.
  • Page 14 Select here the same interface that has been setup as virtual serial interface in the »PLC-VCom« program. Then verify with »OK« and the necessary changes will thereupon be made and at least, the program will be closed. ACCON-S5-LAN DELTALOGIC Automatisierungstechnik GmbH...

  • Page 15: The Software S5-Lan-Manager

    4.3. The software S5-LAN-Manager All ACCON-S5-LAN settings are made with the »S5-LAN-Manager« program meaning the IP address data (IP address, net mask, default gateway, DHCP support), the used TCP port addresses, the device name and even the possibility of a firmware update.
  • Page 16 If you already know the IP address of your ACCON-S5-LAN, you can enter it by clicking on »Suche bestimmte Adresse« (Search certain address) and search it by clicking on »Find«. Figure 16: Find ACCON-S5-LAN In order to send a firmware file via the »Firmware senden« (Send firmware), the firmware has to be loaded before.
  • Page 17 DHCP/AutoIP If this checkbox is active, the ACCON-S5-LAN is searching a DHCP server to receive an IP address on startup. If no server can be found after 3 retries (can take several seconds), the ACCON-S5-LAN will search an IP address from the »Auto-IP«...

  • Page 18: Using The Accon-S5-Lan

    5.1. Siemens S5 software V7.x In order to use the ACCON-S5-LAN with the Siemens S5 software, you need the »PLC-VCom« program, see chapter 4.1 »ACCON-S5-LAN«. Under Windows 98SE and Windows Me, the checkbox »Access to MSDOS-Box« must be activated in the configuration.
  • Page 19 In the »Variable budget«, you now find a new submenu item (in this case »S5-AS511«). Open this menu and a further submenu item appears on which you have to right click and select »New connection...« in the context menu. ACCON-S5-LAN DELTALOGIC Automatisierungstechnik GmbH...

  • Page 20: Direct Communication With Wincc V6.0

    If you use this protocol, port 102 is to be entered in the ACCON-S5-LAN. Firstly, you start the »S5-LAN-Manager« program via the respective shortcut in the start menu. Click on the »Search in local network« button and mark the ACCON-S5-LAN, which is to be used for the communication with WinCC.
  • Page 21 Select the »TCP_IP« entry under »Application access point« and afterwards, select the »TCP/IP -> XXX« entry in the list »Used interface parameterization«, whereupon »XXX« stands for the used network card. Thereupon, the entry under »Application access point« changes into »TCP_IP --> TCP/IP -> XXX«. Save the settings by clicking »OK«. ACCON-S5-LAN DELTALOGIC Automatisierungstechnik GmbH...
  • Page 22 Select the »SIMATIC S5 Ethernet Layer 4.CHN« file as communication driver. Via »Open«, you get back to the program and you can now find a change in the »Variable budget«. Open the new leg »SIMATIC S5 ETHERNET LAYER 4« and right click on »S5-Transport (TCP/IP)«. In the context menu, select »New connection...«. ACCON-S5-LAN DELTALOGIC Automatisierungstechnik GmbH...
  • Page 23 You name the connection in the properties dialogue (e.g. »ACCON-S5-LAN«) and use the »Properties« button to communicate the »IP Address« of the ACCON-S5-LAN to the connection. In the »READ-Function« section, you activate the »Fetch Active« and assign the parameters »Local TSAP« and »Remote TSAP«...

  • Page 24: Accon-S5-Lan And The Deltalogic S7/S5-Opc-Server

    5.4. ACCON-S5-LAN and the DELTALOGIC S7/S5-OPC-Server The DELTALOGIC S7/S5-OPC-Server provides the reading and writing access to data elements of a S7- and S5-PLC via the OPC-interface. Before you get access to data elements, it is necessary to parameterize the connection data. This is made with the »S7OPCCfg.exe«...

  • Page 25: Technical Data

    Protection type IP 20 Supply voltage 24 VDC from PLC interface Not possible on some PLCs (e.g. S5-90U, S5-95U), needs a separate voltage feed External voltage feed possible Power consumption Max. 80 mA Galvanically isolated Integrated multiplexer ACCON-S5-LAN DELTALOGIC Automatisierungstechnik GmbH...

  • Page 26: Troubleshooting (Faq)

    A: The IP parameterization of your PC and your ACCON-S5-LAN do not suit. There are two solutions for this problem: Solution 1: Change the IP address of the PC that way, that the PC and the ACCON-S5-LAN have the same IP net address.
  • Page 27 Figure 30: The dialogue to check the connection In the input box »Access to«, please indicate the COM-Port your ACCON-S5-LAN is connected to. In order to access to the selected COM-Port, click on the »1x« button. If the communication aborts not until a certain period of time, click on »CO«...
  • Page 28 If the following error message appears, the COM-Port is accessible but the PLC or the ACCON-S5-LAN does not respond correctly. Figure 31: Error message on missing device If this dialogue appears, please verify, whether the ACCON-S5-LAN is correctly installed. Figure 32: Error message on erroneous connection If this dialogue appears, the COM-Port does not exist or is defect.
