Summary of Contents for MRC PinPrick

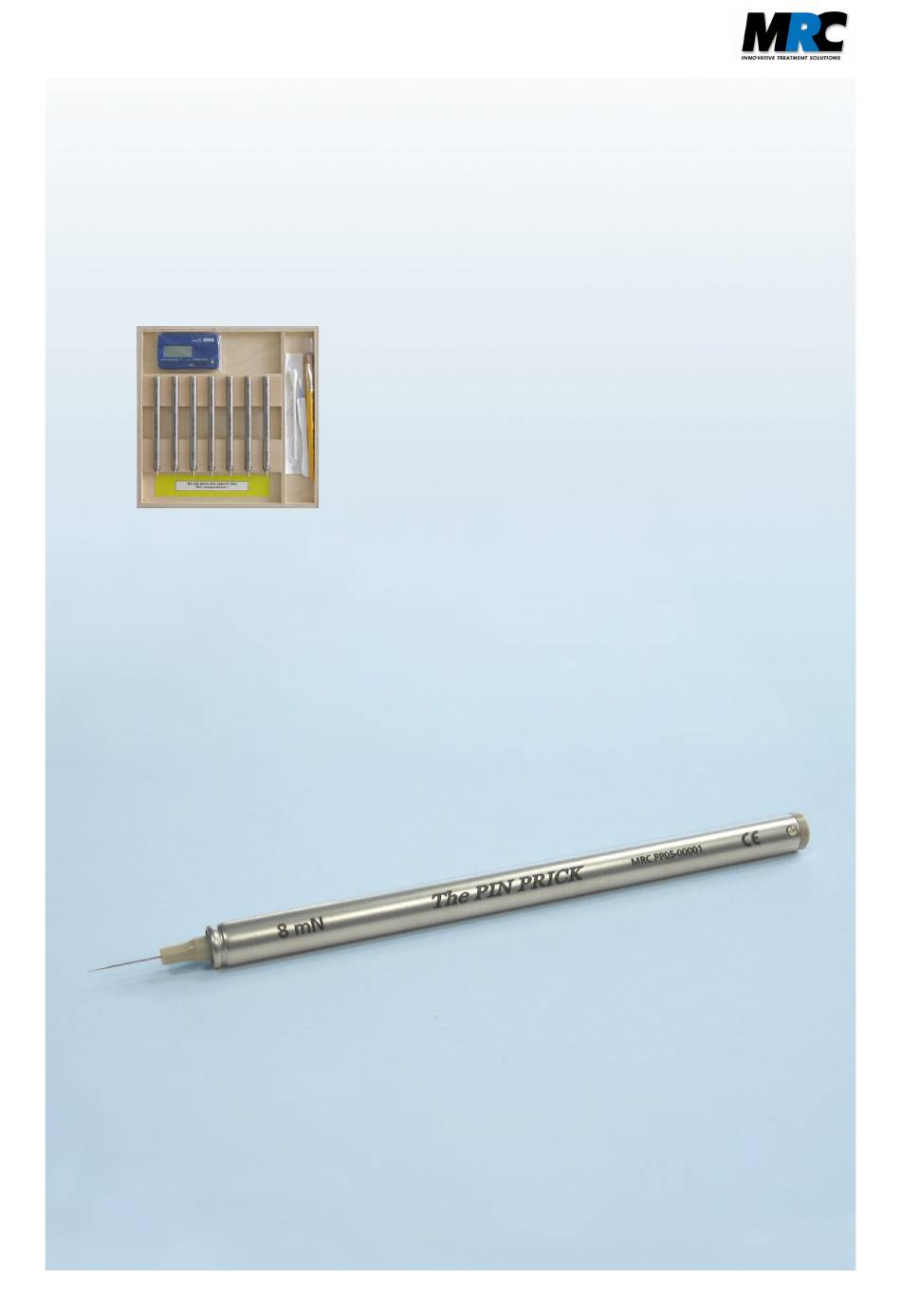

- Page 1 PinPrick Stimulator Set Tactile stimulators for quantitative sensoric testing (QST) MR compatible version User manual...
-
Page 2: Safety Instructions
Do not touch any injured or morbid skin with the stimulators. • Do not use more than 256 mN if you apply the PinPrick stimulators in the face. • Do not use more than 128 mN during wind-up measurements in the face. - Page 3 3. Set components 7 different PinPrick stimulators for different standardized stimuli • set for light tactile stimuli: • brush: SenseLab™ Brush-05 • cotton bud: Böttger 09.143.9105 • piece of cotton wool (Q-tip) attached to an elastic plastic strip • metronome used as a clock during wind-up measurements: Korg MA-1 •...
- Page 4 4. Instructions for use 4.1. Before the first use Before you use the PinPrick stimulators for the first time you should familiarize yourself with their behaviour. For this purpose carefully take the „64 mN“ stimulator out of the box by handling it approximately in the middle of the guiding tube.
- Page 5 Time [s] Time [s] Figure 2: Diagram of forces resulting from different movement velocities of the PinPrick stimulators (single stimulus application). In the upper recording the stimulators of 64 mN and 256 mN have been applied correctly. In the lower recording the 256 mN stimulator generated an unintended impulse since it was applied with too much power.
- Page 6 Time [s] Time [s] Figure 3: Diagram of wind-up measurements with correct (top) and too swinging (bottom) power. MRC Systems GmbH version 3 – 25.07.2013 page 6 of 13...
- Page 7 In that case, the comparability of the measurements will be affected. Place the PinPrick stimulators in a smooth movement onto the respective area of • the skin. Swinging placement can affect the effective force impact.
- Page 8 Wind-up In this test a single stimulus is applied by means of the 256 mN PinPrick stimulator. Then - after a period of 10 seconds – a series of ten identical punctate stimuli with a frequency of 1 Hz is applied in the same skin area.
- Page 9 If you observe any resistance or unusual noise during the application of the • PinPrick stimulators the sliding surface of the weight inside the guiding tube could be contaminated or damaged. In that case another effective weight as desired will act on the skin.
- Page 10 (MR compatible version) material: titanium (MR compatible version) weight: set with 7 PinPrick stimulators: 960 g metronome: Korg MA-1, see the user manual in the metronome packing Figure 4: Recording of forces from left to right: cotton bud Böttger 09.143.9105, Q-Tip on plastic strip, and ™...
- Page 11 7. Safety The PinPrick stimulator set has left our firm in a faultless state. In order to maintain this state you should always store the stimulators in the delivered box in dry environments. The product is a class-1 product in terms of the medical device directive (MDD). It has been tested according to the requirements of our certified quality management in compliance with the standard EN ISO 13485.
- Page 12 • the skin. Swinging placement can affect the effective force impact. Do not use more than 256 mN if you apply the PinPrick stimulators in the face. • Do not use more than 128 mN during wind-up measurements in the face.
- Page 13 Thus, please take care not to bend the needles or damage the tip. Please note that the metronome and the brush are not MR-compatible. They • should not be taken into the MR cabinet. MRC Systems GmbH version 3 – 25.07.2013 page 13 of 13...
