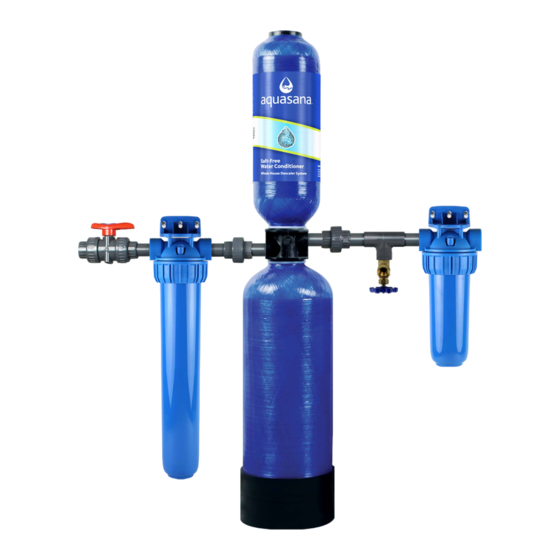

Aquasana WH-SFWC-S Owner's Manual

Whole house salt-free water conditioner

Hide thumbs

Table Of Contents

Quick Links

Download this manual

WH-SFWC-S AND WH-SFWC-T

Whole House

Salt-Free Water

Conditioner

Owner's Manual

Table of Contents

Need help?

Do you have a question about the WH-SFWC-S and is the answer not in the manual?

Questions and answers

Summary of Contents for Aquasana WH-SFWC-S

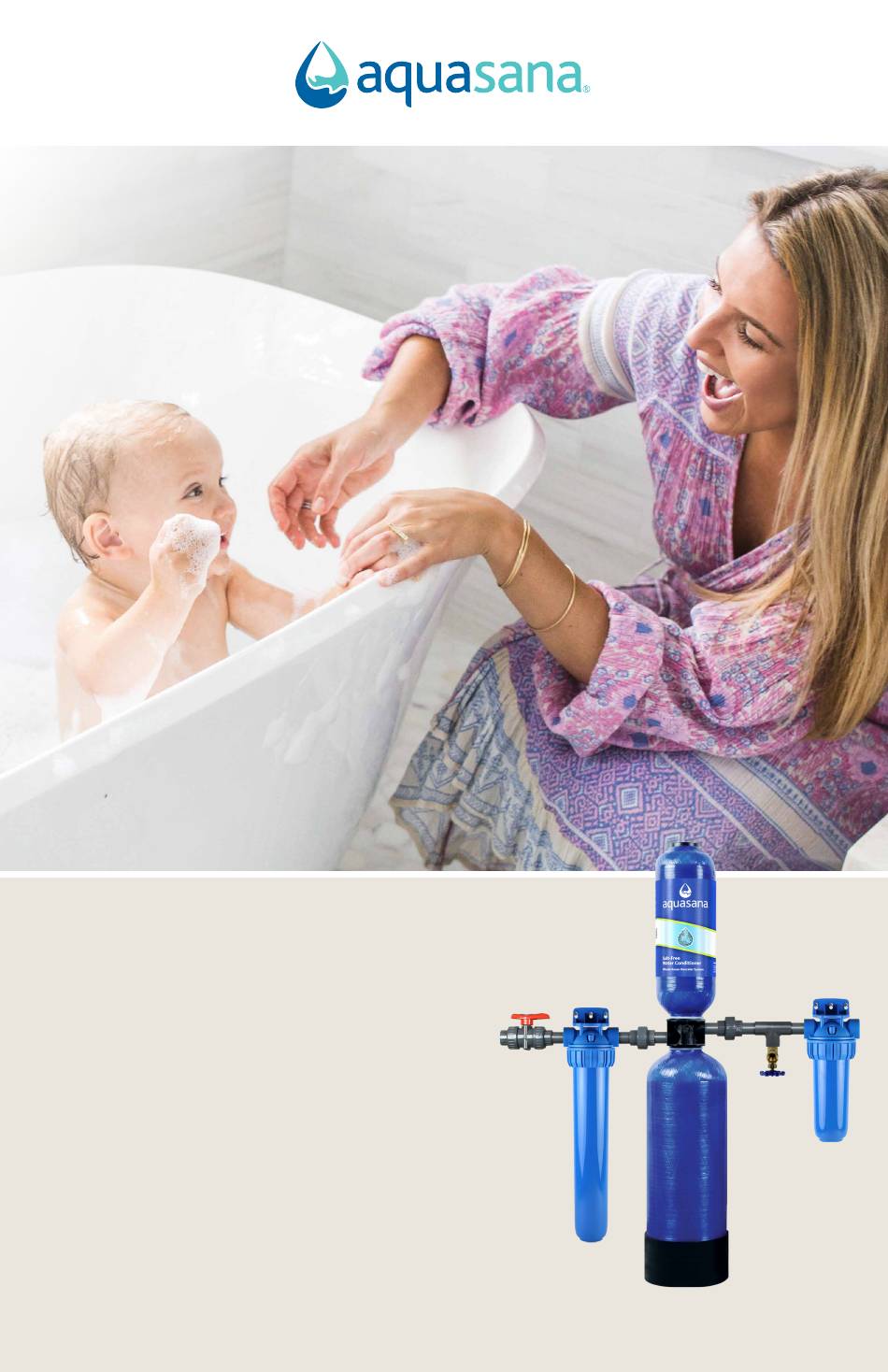

Page 1 WH-SFWC-S AND WH-SFWC-T Whole House Salt-Free Water Conditioner Owner’s Manual...
Page 2: Table Of Contents
Meet clean, healthy water. Your new Aquasana whole house Salt-Free ® Water Conditioner system was expertly engineered to protect internal pipes and plumbing from scale buildup without the use of harsh chemicals or salt. Enjoy the peace of mind that comes from knowing you're protecting your home's plumbing and extending the life of your washing machine, water heater, dishwasher, and other appliances.
Page 3: Box Contents & System Configurations
BOX CONTENTS & SYSTEM CONFIGURATION Salt-Free Water Conditioner tank 2.5" TOE Nipples (7) 20" Pre-Filter (4" for the Tall Salt-Free Water Conditioner (2)) 10" Post-Filter 3" Smooth Nipple Plastic Wrench Brass Drain Valve Fliter Support Brackets (2) PVC Tee 1" - "...
Page 4: Installation Steps
INSTALLATION STEPS Tools recommended for installation: Optional components: • Drill • Check valve • Wrench • Pro-Grade Bypass Kit • Channel locks • Water hammer arrestor • Pipe cutter • Copper wire & grounding clamps • NSF certified PVC primer and glue (if copper pipes are present) •...
Page 5 INSTALLATION STEPS Precautions (continued) • DO NOT install the tank on its side. It must be installed upright to maximize contact with media bed. • Pick an appropriate installation location where if the tank or any connection thereto should leak, the resulting flow of water will not cause damage to the surrounding area.
Page 6 INSTALLATION STEPS Prepare Salt-Free Water Conditioner 1. Ensure the Salt-Free Water Conditioner tank sits level. If it looks off- center or unlevel, reference the troubleshooting section. 2. Pre-assemble all parts and dry-fit the entire system to ensure proper spacing and to confirm you have the necessary components for installation.
Page 7 INSTALLATION STEPS COPPER PIPES ONLY (proceed to Step 4 for all other pipes) When installing on metallic plumbing, ensure you take the following precautions. Securely Ground install two (2) grounding clamps Wire and a #4 copper wire (not included) across the location Ground Ground where the system will be installed.
Page 8 INSTALLATION STEPS NOTE: DO NOT cut more pipe than necessary. You can cut more pipe later if needed. Ensure proper spacing to fit Pre and Post-Filters, and any optional add-ons Incoming Outgoing water supply water supply Cut Pipes Cut pipe along the marked sections from step 4 and clean ends of pipe.
Page 9 INSTALLATION STEPS Configure System 1. Fit Salt-Free Water Conditioner tank and additional optional add-ons into the system at this time. 2. Attach the shut-off valve to your incoming water line. 3. Connect the threaded nipple from the shut-off valve outlet to the 20"...
Page 10 INSTALLATION STEPS Flush Your System NOTE: It’s imperative that this system is flushed properly prior to system water entering your house. 1. Connect a garden hose to the integrated drain valve and ensure the drain valve is in the open position. 2.
Page 11 INSTALLATION STEPS Flush Your System (continued) 5. After the initial 15-minute flushing, begin a period of "surge flushing" by turning the water supply on for 30 seconds and then off for 30 seconds, repeating the cycle for 15 minutes or until the initial surge of water is completely clear and free from discoloration and cloudiness.
Page 12: Troubleshooting Guide
Use rubber strap wrench to tighten tanks. If leak continues, contact customer service with a pre-recorded video of leak. Water leak from Aquasana • Ensure tight connection – do not overtighten as that could fittings cause cracks and further leaking.
Page 13: Maintenance
MAINTENANCE Cleaning • The exterior of your filtration system can be cleaned with warm, soapy water. Do not use any abrasive solution. • Rinse well with clean water. NOTE: Never use chemical cleaning products on the system’s exterior surface as they may damage the housing. <...
Page 14: Filter Replacements
FILTER REPLACEMENTS Pre/Post-Filter Replacements Whole House 20" Pre-Filter Cartridge Replacement Replace every 2 months. Replace sooner if there is a noticable decrease in water flow through the filter system. Whole House 10" Post-Filter Cartridge Replacement Replace every 6 months. Replace sooner if there is a noticable decrease in water flow through the filter system.
Page 15 FILTER REPLACEMENTS Specifications This system is designed and tested for use with genuine Aquasana parts including replacement filters and all hardware. Use of parts from other manufacturers may result in loss of contaminant reduction performance, system damage, or failure. Use of parts from other manufacturers will also void your warranty.
Page 16 FILTER REPLACEMENTS Salt-Free Water Conditioner Tank Replacement Shut Off Water Supply 1. Turn off the main water source prior to tank replacement or turn off the shut-off valve. 2. Place a 5 gallon bucket under the system drain valve and open valve. This will relieve water pressure and drain excess water.
Page 17 FILTER REPLACEMENTS Salt-Free Water Conditioner Tank Replacement (continued) Reconnect Fittings 1. Clean the threads on the pipe nipples and re-apply new NSF certified plumbers tape. 2. Connect pipe nipples to your new Salt-Free Water Conditioner tank. Plumb In New Salt-Free Water Conditioner Tank Slide the new tank back into the system and re-attach the unions.
Page 18 FILTER REPLACEMENTS Salt-Free Water Conditioner Tank Replacement (continued) NOTE: It’s imperative that this system is flushed properly prior to system water entering your house. The granular carbon used in the filtration tank contains fines that must be flushed out prior to use. Flushing New Salt-Free Water Conditioner Tank 1.
Page 19 FILTER REPLACEMENTS Flushing Process (continued) 5. After the initial 15-minute flushing, begin a period of "surge flushing" by turning the water supply on for 30 seconds and then off for 30 seconds, repeating the cycle for 15 minutes or until the initial surge of water is completely clear and free from discoloration and cloudiness.
Page 20: Performance
Operating Temp. Range Operating Pressure Range Rated Flow 20-100 psi 7.0 gpm 40-90°F 138-690 kPa 26.5 lpm 4.44-32.2°C Manufactured by: Aquasana, Inc. 6310 Midway Road · Haltom City, Texas 76117 866-662-6885 Model Replacement Rated Capacity 1,000,000 gallons WH-SFWC-T WH-SFWC-TR 3,785,411.78 liters Operating Temp.
Page 21: Warranty
6. This warranty does not cover damage caused by the use of parts replacement water conditioner under this warranty, the Owner that are not genuine Aquasana parts. This includes, but is not lim- will be furnished with a new water conditioner of comparable ited to replacement conditioners, faucets, and/or diverter valves.
Page 22: Water For Life ® Program
– at no extra cost. commitment required. CONTACT US TO LEARN MORE 866-662-6885 waterforlife@aquasana.com * Exclusions apply. Limited Warranty details are available at aquasana.com. Benefits are for the term of Water for Life membership. < Back To Table of Contents >...
Page 23 LOVE IT? NEED HELP? Please let us know with Give us a call at 866-662-6885 and a review on Aquasana or your retailer’s website. tell us what’s going on. Aquasana, Inc. 6310 Midway Road Haltom City, Texas 76117 866.662.6885 USA 877.332.7873 Canada...
