Summary of Contents for Kognita PC280

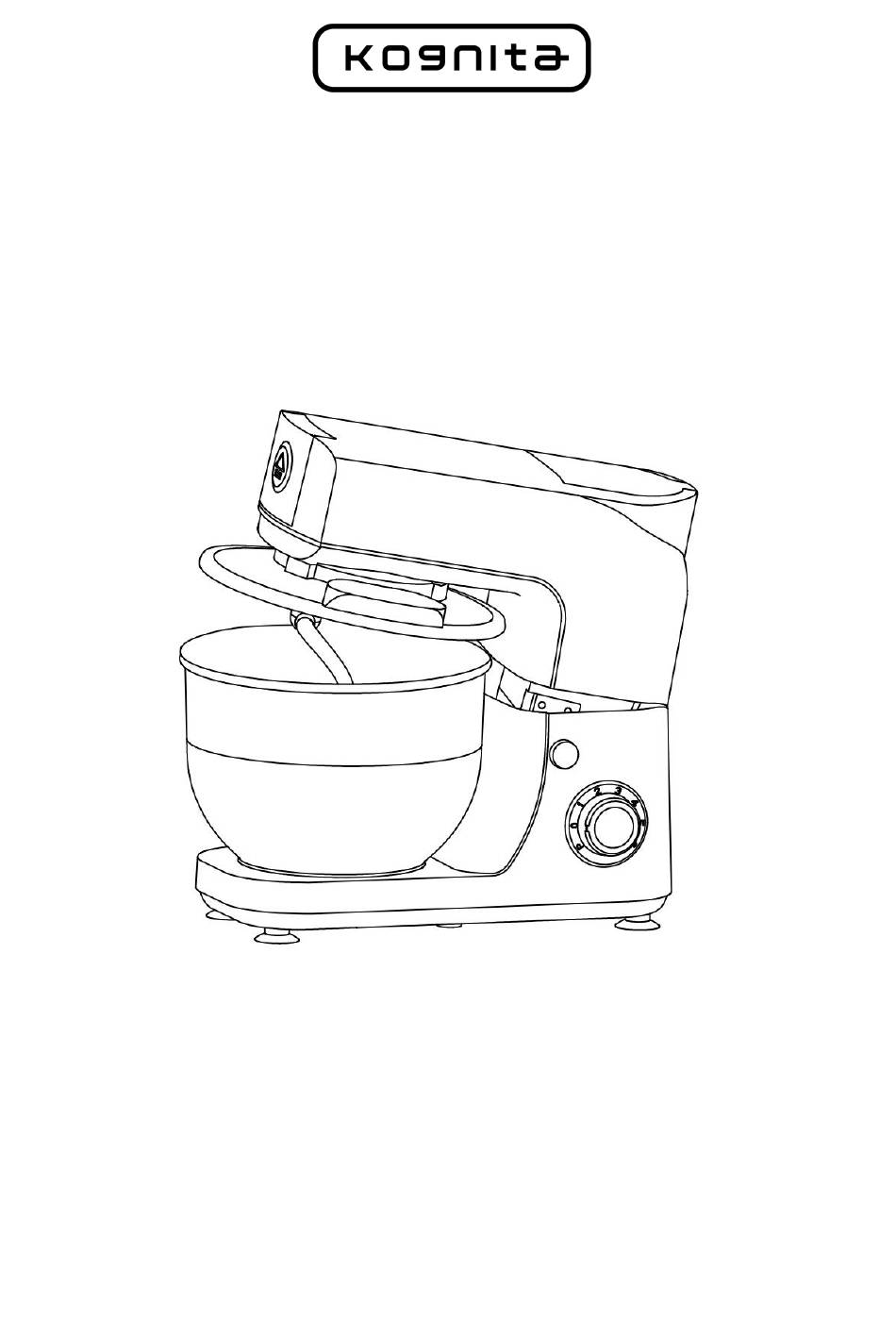

- Page 1 PC280 Instruction Manual Instruction Manual...
- Page 2 INTRODUCTION This appliance works well with 800W powerful motor, low noise design, knob control, easy operation. There are three kinds of professional mixing mode with six-speed settings, show excellent performance. A variety of accessories can be selected to meet all your demand for the kitchen. CHARACTERISTIC 1.
- Page 3 8.Avoid contacting moving parts. Keep hands, hair,clothing, as well as spatulas and other utensils away from beaters during operation to reduce the risk of injury to persons and/or damage to the mixer. 9.Close supervision is necessary when mixer is used by or near children or incapacitated persons. 10.
- Page 4 Notes 1. THIS UNIT IS FOR HOUSEHOLD USE ONLY. 2. Do not dump the appliance when it is not in use. 3.Do not leave mixer unattended while it is operating. 4.To check product periodically. Please do not continue to use it if there is any damage. 5.Do not try to repair this product by yourself.
- Page 5 Description for Component （A）Standard Accessory 1.Top Lid 7. Body 2.Front Lid 8.Locking press button 3.Transverse power take-off 9.Switch knob 4.Stainless steel bowl 10.Beater 5. Bottom cover 11.Dough hook 6.Upper power take-off 12.Whisk ----------------------------------------------------------------------------------------------------------------------------------------------------- （B）Accessories Function：Mincer,Sausage,Juicer 1.Food Pusher 10.Plastic plate 2.Food Tray 11.
- Page 6 Description for using Description for Standard Accessories The standard parts of this machine are composed of dough hook, whisk, beater and stainless steel bowl. Installation and dis-assembly of mixing head Installation 1.Insert the bowl cover to insert the notch at the upper end of the dough hook to the driving shaft 2.Push the dough hook upward and turn counterclockwise until it cannot move.
-
Page 7: Mixing Bowl
Mixing bowl 1.Keep the appliance in a safe, stable, clean and dry place 2.One hand hold on the head of the machine, another hand press the locking press button, the appliance will automatically lift the head, and we can make the appliance head to the maximum position by hand and install bowl cover. - Page 8 Foaming state at different stages First step The bubbles are very big and uneven Begin step The bubbles become fine and turn white Wet foaming Raise the whisk and then the bubbles can stand up and its front end is downward Slightly curing Raise the whisk and its front end is very sharp and soft...
- Page 9 Instruction for chosen accessories Mincing: 1.Hold on the T tube and put the snake into tube. 2.Place the cutting blade on the snake with the sharp upward. 3.Select plate(coarse/medium/fine)that you need on the cutting blade. 4.Tighten the Fixing ring. 5.Open the front cover of the machine and insert the assembled attachments into the machine's crosswise output end 6.Place the food tray on the inlet of the meat grinder.
- Page 10 Sausage: 1.Hold the T tube and put the screw into mincing tube. 2.Place the blade and the appropriate cutting plate and sausage holder on the screw in turn and tighten the fixing ring. 3.Open the front cover of the appliance, insert the barrel of meat in the transverse port of the end, turn counterclockwise and righting.
- Page 11 KEBBE： 1.Hold the T tube and put the snake into tube. 2.The plastic plate and plastic cover are successively arranged on the screw and tighten the fixing ring. 3.Before opening the front cover of the appliance, insert the set of mincing rolls into the head tube of the lateral output port, turn counterclockwise righting.
- Page 12 Blender jar： Notes: the maximum scale of cup is 1.6QT (rated capacity: 1.4QT) Assembling: 1.Hold the glass jar handle into the output connector, rotate it clockwise to lock. 2.Lower the machine head in a horizontal position, the locking rotary knob will popup automatically and lock the head.
- Page 13 Squeeze the noodles: 1. Hold the t-shaped screw and put the minced screw into the t-shaped screw. 2. Select the required noodle knife board (large round surface knife, small round surface knife, flat surface knife, hollow surface knife) and put it on the meat screw. 3.Tighten the big nut.
- Page 14 Chopping vegetables： 1. First install the dish cutter into the host, then select the dish cutter effect you need, and install the 1, 2 or 3 cups into the dish cutter respectively. 2. Prepare a special cutting stick and place a plate under the cutting tin. 3.
- Page 15 Squeeze juice: 1.Place the plastic screw locking ring into the sleeve.(fig.1) 2.Place the gauze into the sleeve next to the plastic screw locking ring.(fig.2) 3.Put the fixing ring through the sleeve and make it at the end of the sleeve.(fig.3) 4.Place the snake into the head, long end first, and turn to feed the snake slightly until it is set into the motor housing.(fig.4) 5.Insert the shaft of the snake into the central axis of the screw.(fig.5)
-
Page 16: Specifications And Parameters
The cleaning of motor housing 1.Please unplug the power cord before cleaning. 2.Do not wash the mixer to avoid electric shock. 3.Wipe the mixer head, stand, bowl locking plate and unit base with a damp cloth, then dry. 4.DO NOT IMMERSE THE STAND MIXER IN WATER. 5.Do not use sharp or abrasive cleaner, as they may damage the finish of the mixer. -
Page 17: Question And Answer
Question and Answer Phenomenon Reason Methods Whether the machine is running Turn the speed control knob to machine suddenly stop too long or the temperature is too "OFF" and remove the power plug working high, resulting in motor until the machine is completely overheating, and power failure cooled.
