Kidde DC-9204E-KID Quick Start Manual

Innovation
Manual Call Point
DC-9204E-KID

Overview

DC-9204E-KID Innovation Manual Call Point (MCP) is a
conventional Manual call point, designed to connect to compatible
conventional fire alarm systems.
When the MCP activated the RED led activates. The MCP is reset
by the reset key supplied with the MCP

Standard Features

• Resettable frangible element
• Plug-in terminal blocks
• Standards : AS 7240.11

Connection and Assembly

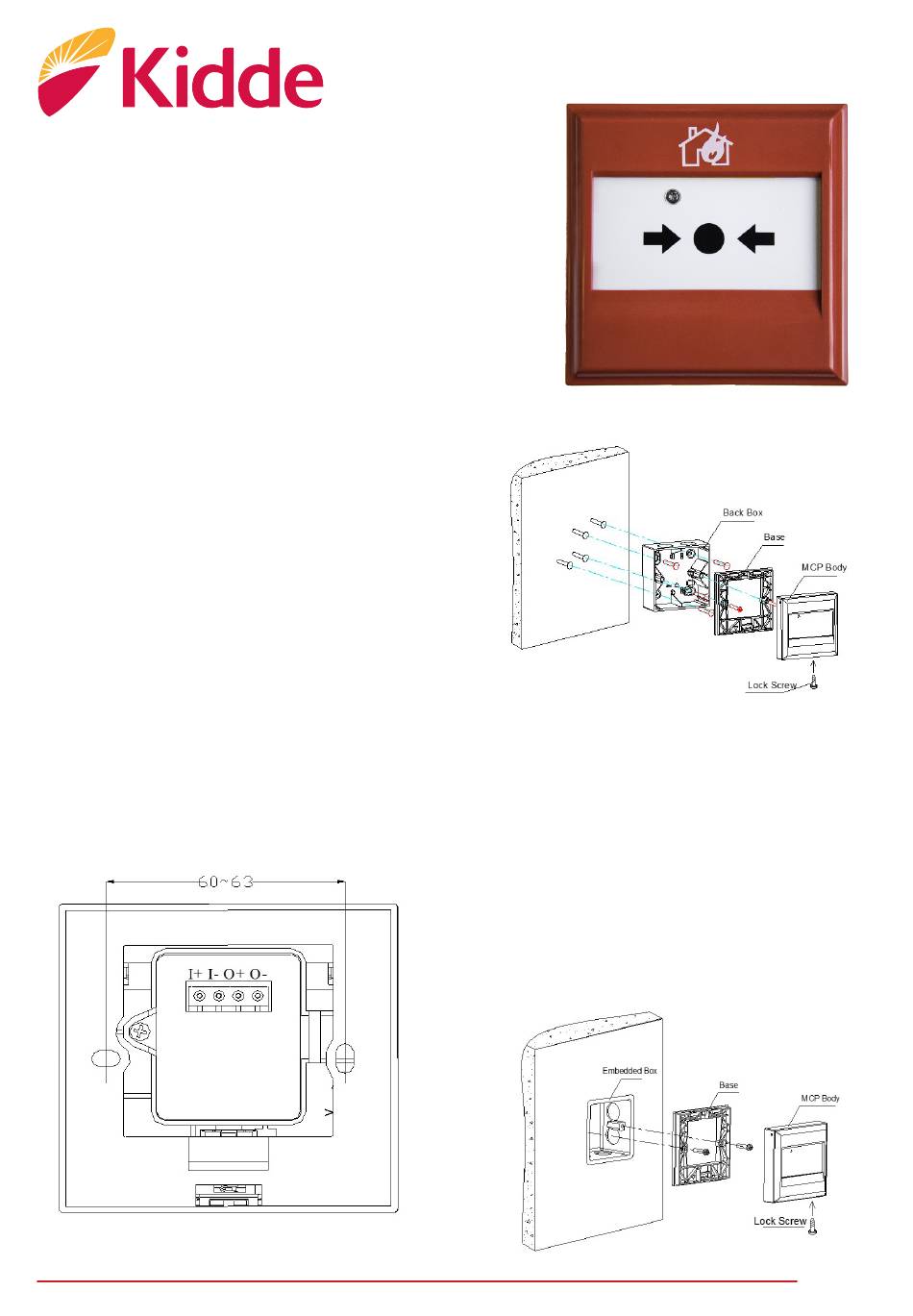

Temrinals on the MCP base are shown as Fig. 1 (units in mm)
Page 1 of 2

Installation

The MCP can be surface, recessed or flush mounted:
Surface Mounting: See Fig 2 above
Install the back box to the wall using 4 screws, then install the
base onto the back box.
Connect cables and assemble as per instructions in Connection
and Assembly.
Recessed mounted: See Fig 3
When the back box is embedded in concrete, install the base onto
the back box. Connect cables and assemble as per instructions in
Connection and Assembly.
Flush mounted: discard back box, Fit the base to the wall,
Connect cables and assemble as per instructions in Connection
and Assembly.
9204E-KID
DATA SHEET
Issue 1.0
