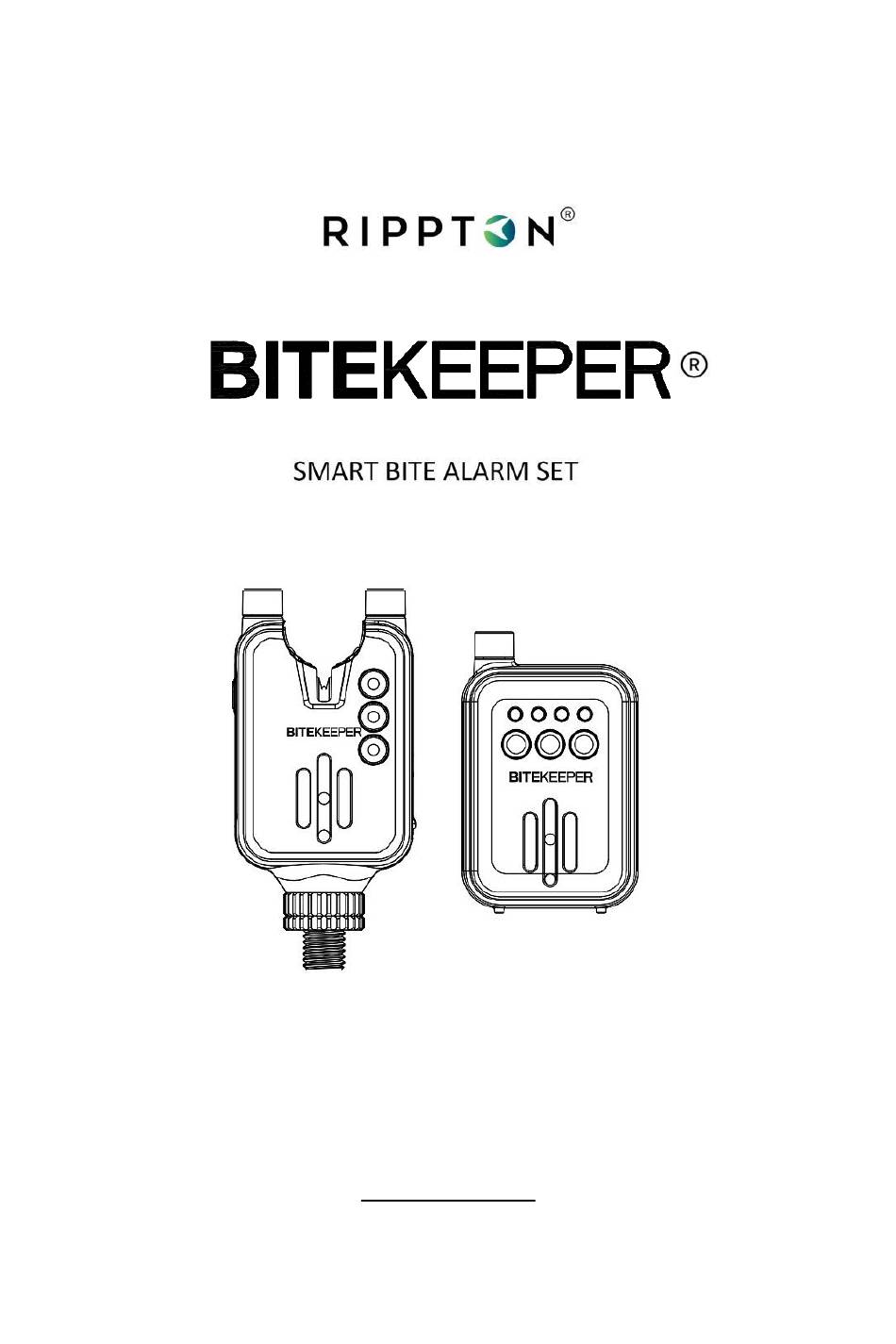

- Page 1 Updated on 21/04/2023 (Ver4)
- Page 2 Illustration Note: The pictures below are only for illustration purpose, the actual product may vary slightly due to improvements. Soft copy of this manual could be found via https://www.rippton.com/support...
- Page 3 USER MANUAL BITEKEEPER ALARM (Multi Color LED) Battery type: 250mAh Li-polymer Nominal voltage: 3.7V Standby current: 510uA Peak working current: 100mA Radio transmitter operating 433MHz frequency: Wireless transmission modulation code: Max volume: 120dB Effective wireless distance: 100m (can be affected by the...
-
Page 4: Adjusting Sensitivity
HOW TO USE Turning On Alarm: Press and hold the Power button located on the left side (refer to the picture above) for one second. You will see both LEDs flash once, and hear two loud beeps. This indicates that the alarm is on. Adjusting Volume ... - Page 5 off. Now the run LED color is set successfully. Attaching To Rod This alarm is designed to be attached directly to your rod. Drop-back Function When a drop-back bite occurs, the relevant LED will twinkle, and the alarm will emit a continuous low sound. The LED color will remain white for around ten seconds after the alarm stops sounding.
- Page 6 USER MANUAL BITEKEEPER ALARM RECEIVER (Multi Color LED) Battery type: 250mAh Li-polymer Nominal voltage: 3.7V Standby current: 600uA Peak working current: 100mA Radio transmitter operating 433MHz frequency: Wireless transmission modulation code: Max volume: 120dB Effective wireless distance: 100m (can be affected by the...
- Page 7 HOW TO USE Turning On Receiver: To turn on the receiver, press and hold the Power button. The torch and run LEDs will flash once in sequence, and two loud beeps will sound. Adjusting Volume To adjust the volume, briefly press the V button. The volume can be set to one of seven levels, from quietest to loudest.
- Page 8 (Only Available for the bluetooth version BITEKEEPER Pro) Search for either “Bitekeeper” or “Rippton” on the Google Play Store, Samsung Galaxy Apps (for android) or App Store (for iOS), or scan this QR code below, to install the app on your mobile device.
- Page 9 Enter “Bitekeeper” App on your mobile device, then tap “Enter” Enter “Rippton” App on your mobile device, then tap “Device” and select the “BITEKEEPER Pro” interface among the other products. Please switch on the “Bluetooth” in the settings of your smart...
- Page 10 You are able to adjust the settings of the bite alarm set on the app. Warranty Notice: Rippton reserves the right to amend and/or interpret all the contents provided in this manual. We offer you a 24-month guarantee from the date of purchase.
- Page 11 Name: Sea&Mew Accounting Ltd Address:Electric Avenue Vision 25, London, Enfield EN3 7GD Contact Person: Billy Han Email：info@seamew.net...
