Summary of Contents for eltherm ELAK-R

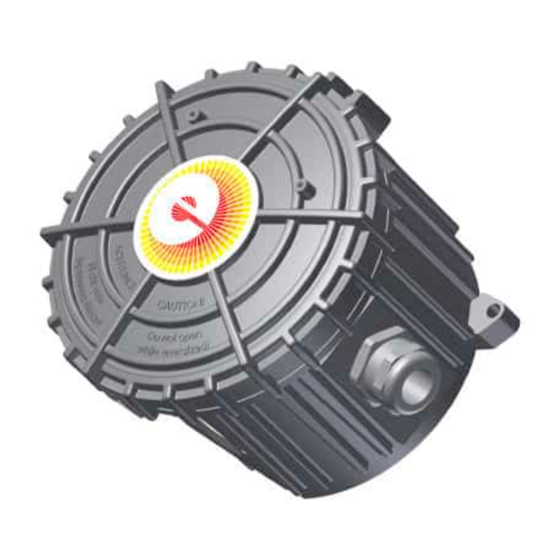

- Page 1 OPERATION MANUAL ELAK-R Pt100 for use with Operation instructions BU 137 eltherm GmbH P.: +49 2736 4413-0 Ernst-Heinkel-Strasse 6 -10 F.: +49 2736 4413-50 57299 Burbach, Germany info@eltherm.com www.eltherm.com...
-
Page 2: Table Of Contents
Model view ELAK-RS-Pt Technical Data Line diagram INSTALLATION Safety Instructions Receipt of the Goods Storage Recommended Tools Preparation of Wall Mounting ELAK-R Assembly Instructions Open the Enclosure Attach the Enclosure Connect Pt100 Close the Enclosure Check After Installation Operation & Maintenance... - Page 3 Junction boxes ELAK-R for use with Pt100 Revision 0 IMPORTANT INFORMATION FOR STORAGE For proper and safe use of the ELAK-R connection boxes, please follow these instructions. Please keep these instructions for future reference (e.g. in the system documentation). IMPORTANT DISPOSAL INFORMATION The WEEE logo indicates that this product should not be disposed of with other waste.
-
Page 4: Technical Data
TECHNICAL DATA MODEL VIEW ELAK-R8 [0920058] Ø 154.5 mm ELAK-R8 Quan- Clamp- Pos. Type tity range Blind plug M20x1,5 Cable gland M25x1,5 9-13/12-17 mm Blind plug M16x1,5 Cable gland M16x1,5 4 - 10 mm Protective earth terminal 2,5 mm² Feed through-terminal 2,5 mm²... -
Page 5: Model View Elak-Rs-Pt
BU 137 Operation instructions Junction boxes ELAK-R for use with Pt100 Revision 0 Line diagram ELAK-R [0920059 & 0920060] Connection of one or two PT100 sensors MODEL VIEW ELAK-RS-Pt [0920060] Terminal for earthing or electrical protection ELAK-RS-Pt Quan- Clamp- Pos. -
Page 6: Line Diagram
Line diagram ELAK-R [0920058 & 0920060] Connection of one or two PT100 sensors 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Connection of one or two 4-wire Pt100 Connection of one or two 3-wire Pt100... -
Page 7: Recommended Tools
BU 137 Operation instructions Junction boxes ELAK-R for use with Pt100 Revision 0 RECOMMENDED TOOLS • Unused clamping points must be tightened. • Before inserting blind plugs, reducers or conduit entries into free threaded boreholes, make sure that the threa- ded borehole is clean and undamaged and that the re- spective threads fit together. -
Page 8: Attach The Enclosure
CLOSE THE JUNCTION BOX Lift the lid (using the screw- Visual inspection of housing and cover to ensure they are driver) not damaged. Cover can only be inserted in one position (lok- king arms / twist protection recesses have different width). Move the cover to the appropriate position. -
Page 9: Check After Installation
BU 137 Operation instructions Junction boxes ELAK-R for use with Pt100 Revision 0 MARKING (made by customer) CHECK AFTER INSTALLATION NOTE ATTENTION Customer-side labeling with an identification plate is pos- After completing the installation, the following steps must sible. be taken: •... - Page 10 You can also find this document on the eltherm website. Please visit our download area. eltherm GmbH Headquarters Ernst-Heinkel-Straße 6 -10 57299 Burbach. Germany T.: +49 2736 4413-0 F.: +49 2736 4413-50 info@eltherm.com Contact us: +49 2736 4413-0 • info@eltherm.com...
