Savant Keypad Link
(SKL-1000)
Deployment Guide
Software Release: da Vinci Release 5.1
Hardware Release: SKL-1000-01
Date: July 2012
Part Number: 009-0595-00
Introduction
The Savant® Keypad Link (SKL-1000) Deployment Guide provides the information necessary to install the SKL-1000. Each
SKL-1000 connects up to 12 Savant keypads to any Savant controller with an available RS-232 port. If keypads are double
ganged, they are considered 2 keypads.

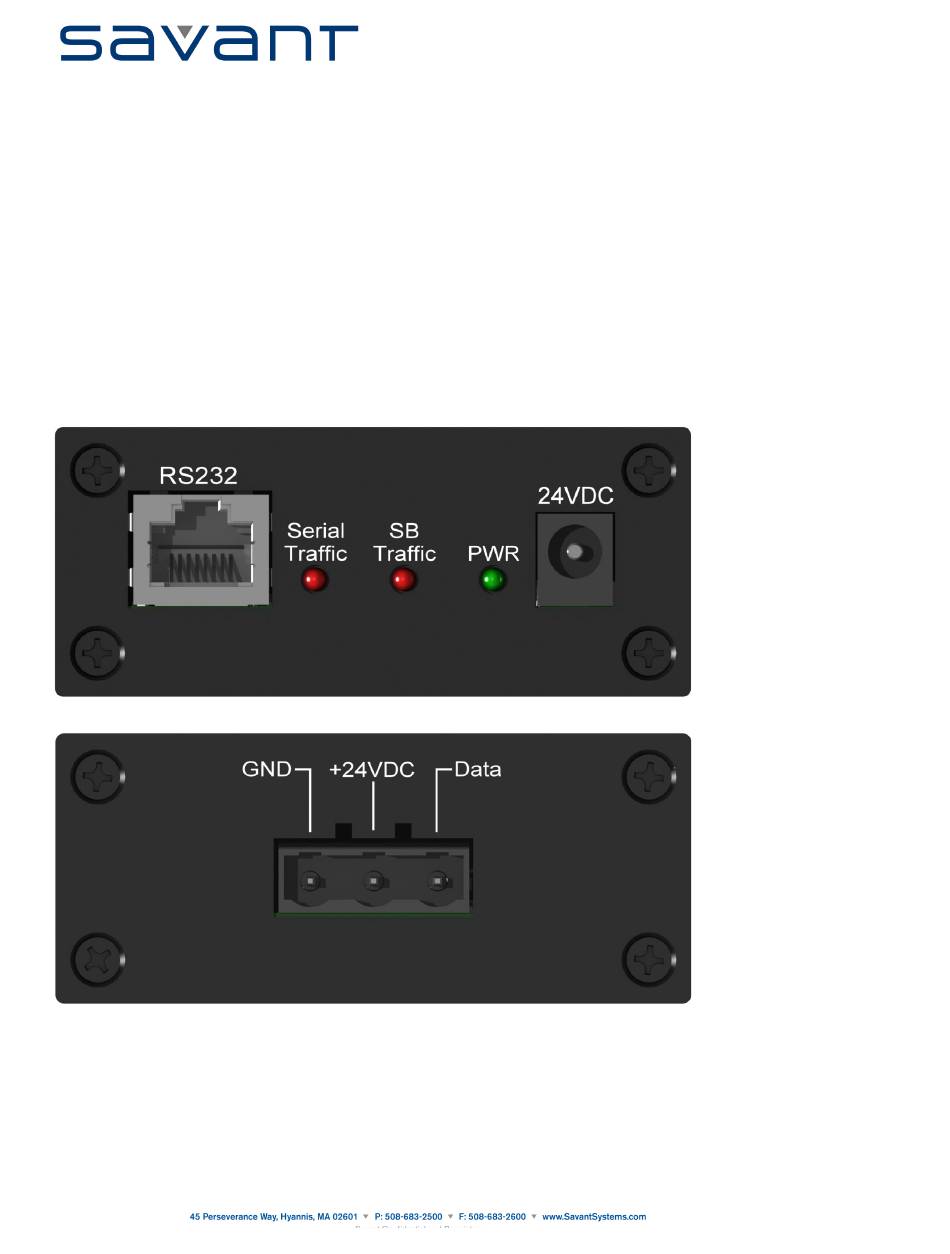

Front View of Savant Keypad Link (SKL-1000)
Rear View of Savant Keypad Link (SKL-1000)
Box Contents
(1) SKL-1000
(1) Installation Kit (075-0127-xx)
(1) 24V DC 1.67-Amps Power Supply (025-0115-xx)
•
(1) 3-Position Screw-Type Plug-In Connector (0.300 in) (028-0432-xx)
•
(4) #6 x 1/4 in Screw (039-0143-xx)
•
(2) Side Mounting Brackets for Extender Boxes (071-0494-xx)
•
(1) Quick Reference Guide (this document)
8/22/12
Savant SKL-1000 Deployment Guide
Part Number: 009-0595-00
1 of 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SKL-1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Savant SKL-1000

  • Page 1 The Savant® Keypad Link (SKL-1000) Deployment Guide provides the information necessary to install the SKL-1000. Each SKL-1000 connects up to 12 Savant keypads to any Savant controller with an available RS-232 port. If keypads are double ganged, they are considered 2 keypads.
  • Page 2 Savant SKL-1000 Deployment Guide Part Number: 009-0595-00 Required Components Host Controller: HST-4001/HST-4002/SVR-4100 Savant controller with an allocated RS-232 connector Savant Keypads: Up to 12 supported per SKL-1000 Savant Faceplates Savant Keypad Buttons Cabling for SKL-1000 to keypads 100 ft/30.48 meters (CBL-4100) •...
  • Page 3 Savant SKL-1000 Deployment Guide Part Number: 009-0595-00 Front and Rear Panel Capabilities and Connectors Front Panel RS232 port Port Type: RJ-45, Cable: Cat 5 Connects to Savant Controller Serial Traffic LED Red flashing indicates serial traffic. Solid red indicates overload.
  • Page 4 SKL-1000 must be used in the installation. Note that one SKL-1000 allows a maximum of 1000 feet of 16-gauge wire devices. If more than 1000 feet is used to connect 12 or fewer keypads, then another SKL-1000 must be used in the to connect to the keypads.
  • Page 5 Note: Keypads may be wired to a homerun device, not to exceed 1000 feet with 16 AWG or 330 feet with 18 AWG. SKL-1000 Mounting Bracket Installation Use the supplied screws to install the Side Mounting Brackets (071-0494-xx) to the SKL-1000 as shown. 8/22/12...
  • Page 6 Savant SKL-1000 Deployment Guide Part Number: 009-0595-00 RacePoint Blueprint Configuration Open RacePoint Blueprint™. Select the SKL-1000 from the RacePoint Blueprint Toolbar: Show Library > Components menu. Drag and drop the SKL-1000 component into the Layout window. 8/22/12 6 of 6...
  • Page 7 RacePoint Blueprint draw a connection. Confirm that services have been generated: Configuration State symbol will be blue (75% complete) or green (100% complete). Open Keypad Manager: Tools > Configure Keypads to configure keypads. (See Savant Keypad Deployment Guide) Typical Configuration 8/22/12...

  • Page 8: Additional Documentation

    To see more documentation go to http://www.SavantSystems.com and navigate as follows: >Dealer Login > Knowledge Base Refer to: Products > Savant Circa Keypad Quick Reference Guide • Refer to: Products > Savant Echo Keypad Quick Reference Guide • Refer to: Products > Savant Metropolitan Keypad Quick Reference Guide •...

  • Page 9: Important Notice

    Savant Systems, LLC shall not be liable for any technical or editorial errors or omissions contained herein or for incidental or consequential damages resulting from the performance, furnishing, reliance on, or use of this material.

  • Page 10: Electric Shock Prevention

    ELECTRICAL DISCONNECT: The 24 VDC power outlets should be easily accessible to disconnect power in the event of an electrical malfunction. Weight Injury Prevention WEIGHT INJURY: Installing some of the Savant Controllers require two installers to ensure safe handling during installation. Failure to use two installers may result in injury. 8/22/12...

  • Page 11: Safety Statements

    Savant SKL-1000 Deployment Guide Part Number: 009-0595-00 Safety Statements Follow all of the safety instructions listed below and apply where applicable. Additional safety information will be included where applicable and listed below. Read these instructions. Keep these instructions. Heed all warnings.
